Product Details
GENERAL DESCRIPTION
The 74HC/HCT244 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
FEATURES
• Output capability: bus driver
• ICC category: MSI
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74HC244DB |
| Ihs Manufacturer | Original |
| Part Package Code | SSOP |
| Package Description | SSOP, SSOP20,.3 |
| Pin Count | 20 |
| Control Type | ENABLE LOW |
| Family | HC/UH |
| Length | 7.2 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS DRIVER |
| Max I(ol) | 0.006 A |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 4 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SSOP |
| Package Equivalence Code | SSOP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Prop. Delay@Nom-Sup | 33 ns |
| Propagation Delay (tpd) | 165 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2 mm |
| Supply Voltage-Max (Vsup) | 6 V |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 5.3 mm |
Product Photos

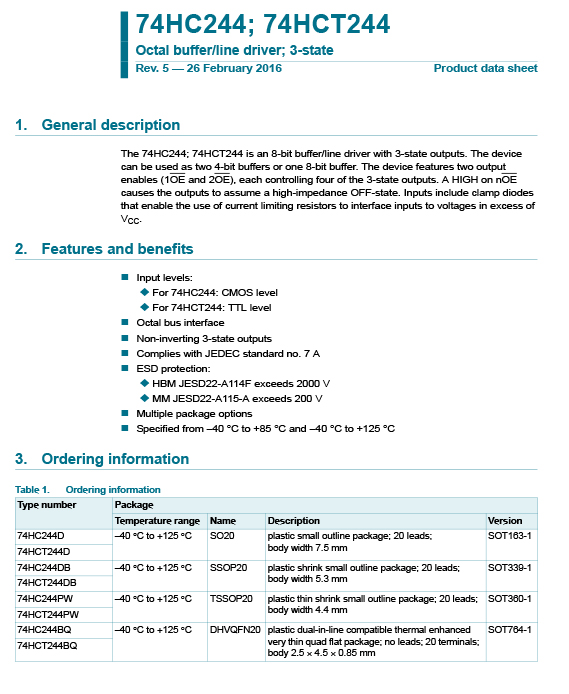

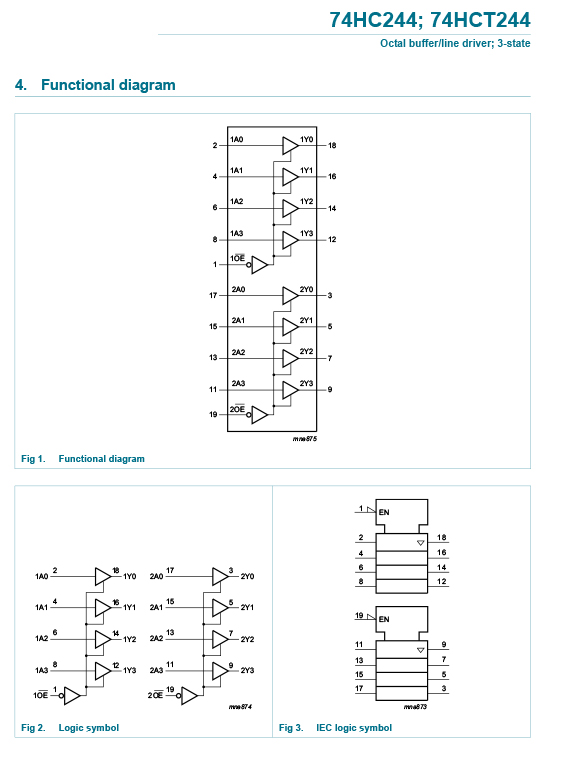

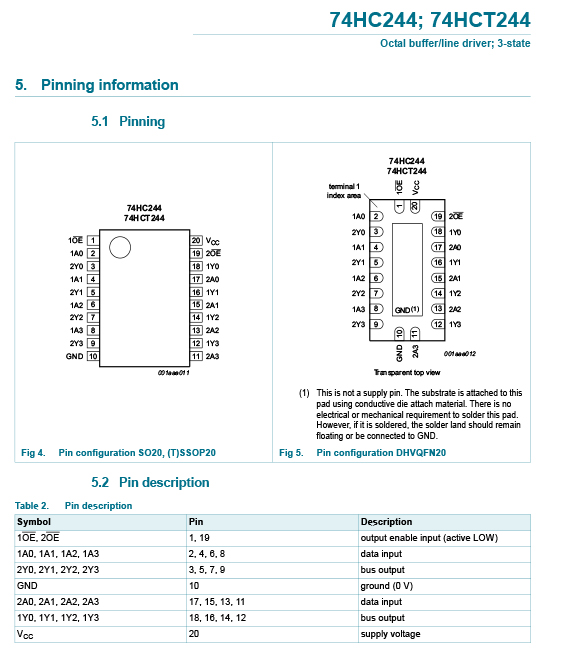

Product datasheet
