Product Details
| The DG211 and DG212 are low cost, CMOS monolithic, Quad SPST analog switches. These can be used in general purpose switching applications for communications, instrumentation, process control and computer peripheral equipment. Both devices provide true bidirectional performance in the ON condition and will block signals to 30VP-P in the OFF condition. The DG211 and DG212 differ only in that the digital control logic is inverted, as shown in the truth table. Features • Switches ±15V Analog Signals • TTL Compatibility • Logic Inputs Accept Negative Voltages • rON (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175Ω |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-DG211CJ |
| Part# | DG211CJ |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | DIP8 |

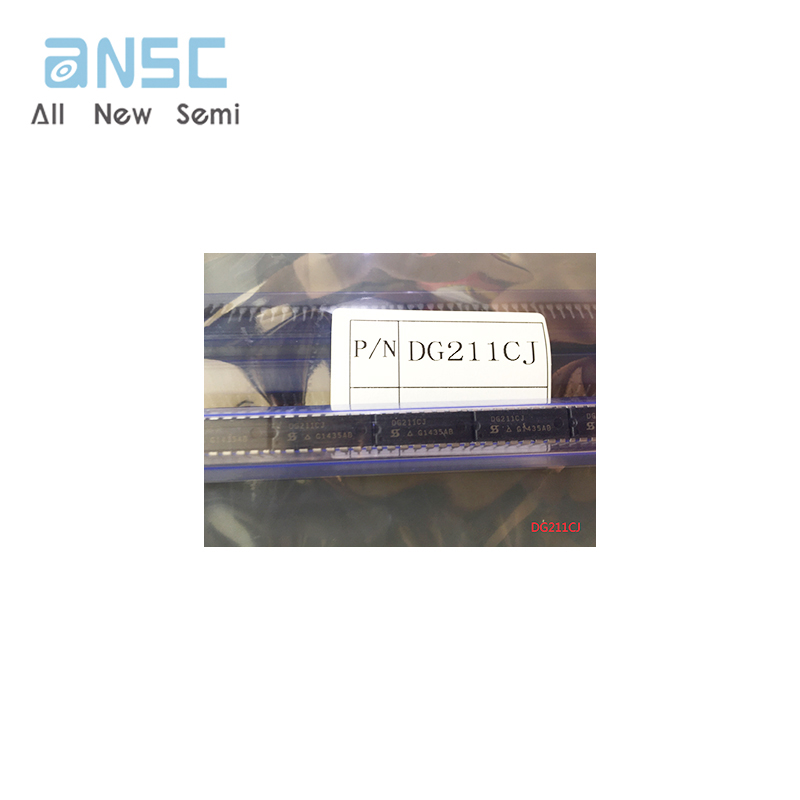

Product Photos

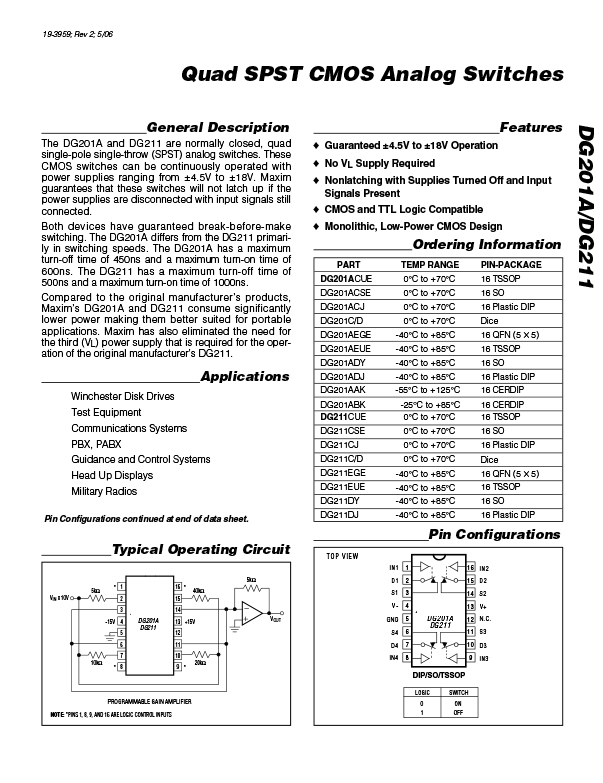

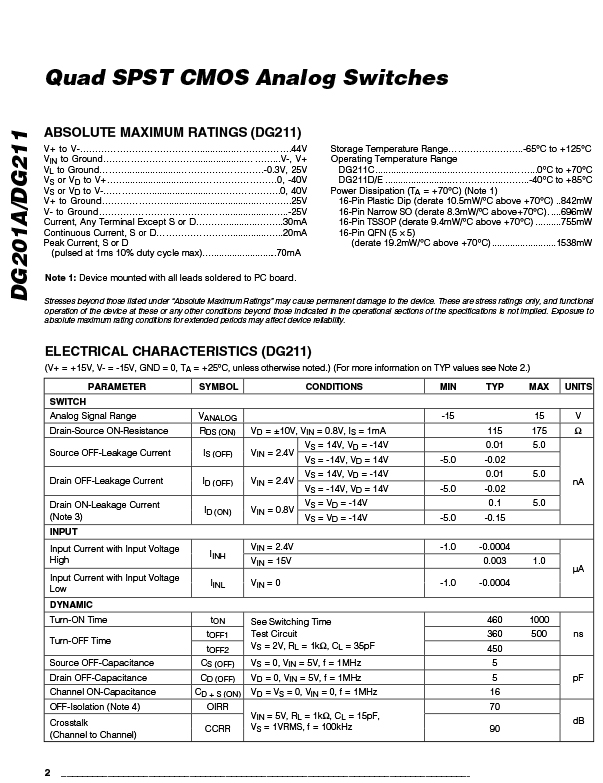

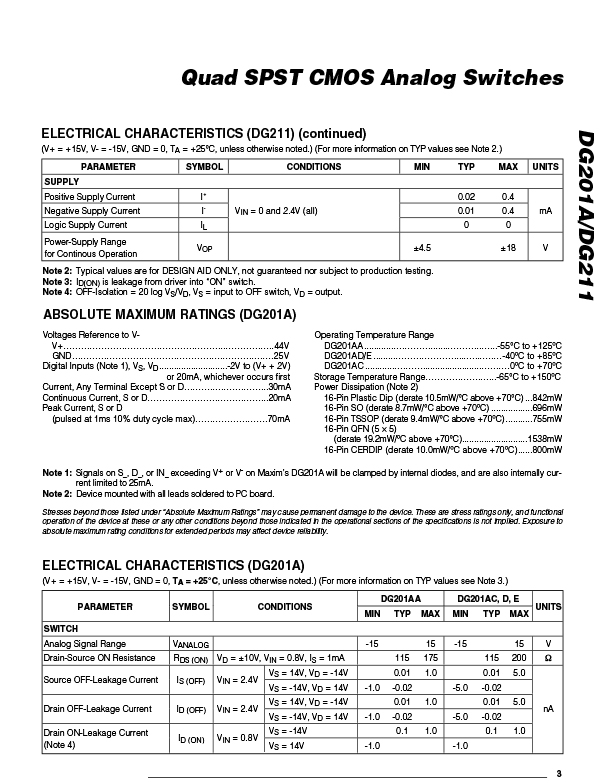

Product datasheet
For more information, please download
