Product Details
Features
Gain: 30 dB
P1dB: +23 dBm
Saturated Power:
+23.8 dBm @ 24% PAE
Supply Voltage: +5V @180 mA
50 Ohm Matched Input/Output
24 Lead Ceramic 4x4mm
SMT Package: 16mm²
Applications
Point-to-Point Radios
Point-to-Multi-Point Radios & VSAT
LO Driver for Mixers
Military & Space
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- HMC633LC4 |
| Category | RF and Wireless |
| RF Amplifiers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Strip |
| Part Status | Active |
| Frequency | 5.5GHz ~ 17GHz |
| P1dB | 23dBm |
| Gain | 30dB |
| Noise Figure | 10dB |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Current - Supply | 180mA |
| Test Frequency | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-TFCQFN Exposed Pad |
| Supplier Device Package | 24-CQFN (4x4) |
| Base Product Number | HMC633 |

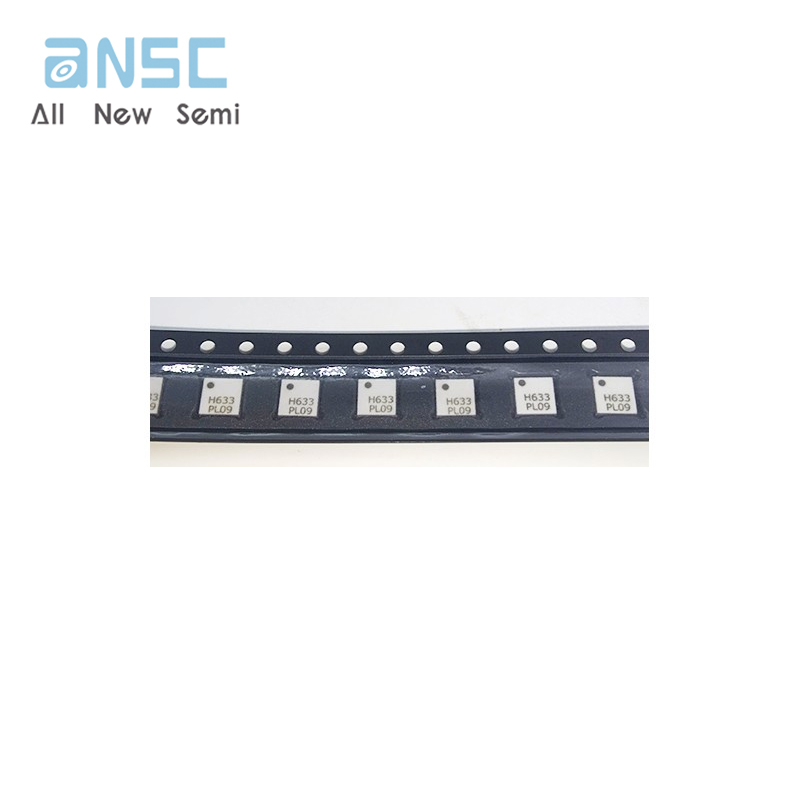

Product Photos

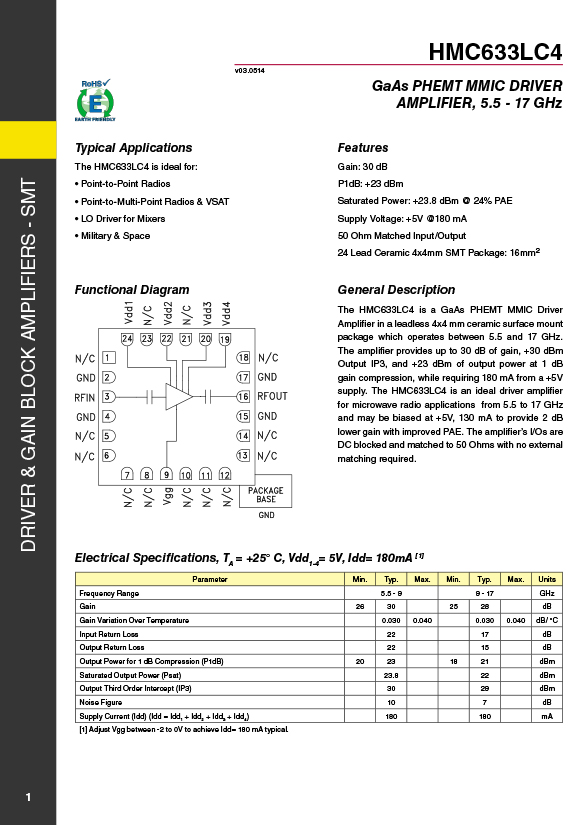

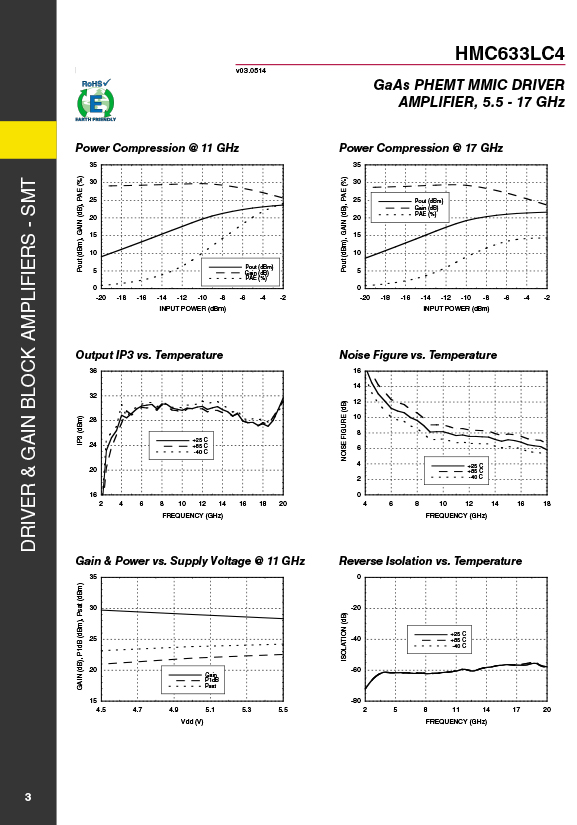

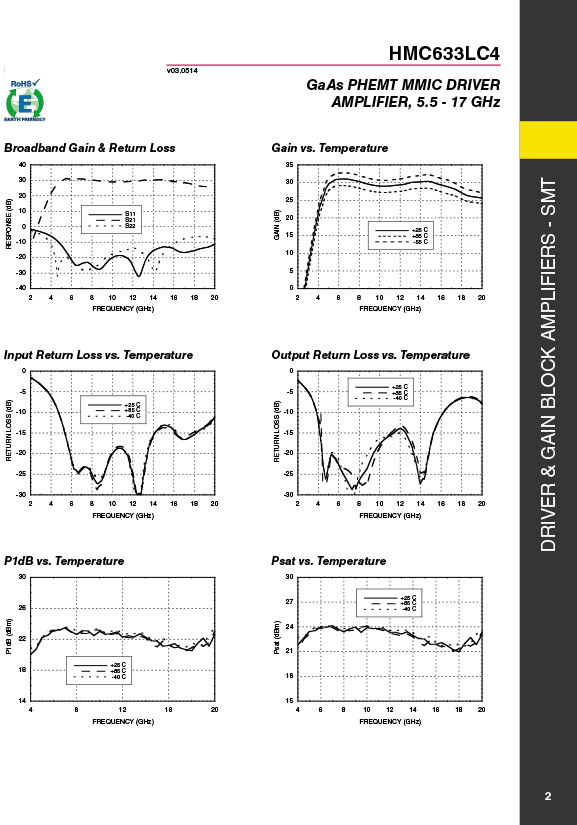

Product datasheet
For more information, please download
