Product Overview
Equivalent series resistance (ESR), also known as internal resistance, is a value representing the loss of useful energy in a simple electronic circuit consisting of a resistor and an ideal (perfect) capacitor, and its resistance is 100mOhm.The dissipation factor of a capacitor is the power loss when AC is applied through the capacitor, and this capacitor's factor is 10 %.
Product Features
the dissipation factor is 10 %
Product Applications
B45197A2337K509 applications of tantalum capacitors.
-
Industrial
-
Avionics / military / space
-
Telecom infrastructure
-
Consumer
-
Computer
-
General purpose
-
General low power DC/DC and LDO
-
Automotive ECU
-
ABS
-
Airbag systems
Product Description
| Type# | Description |
| ANSC PART# | ANSC- B45197A2337K509 |
| Ihs Manufacturer | Original |
| Package Description | CHIP, ROHS COMPLIANT |
| Capacitance | 30 µF |
| Capacitor Type | TANTALUM CAPACITOR |
| Dielectric Material | TANTALUM (DRY/SOLID) |
| ESR |
100 mΩ |
| Height | 4.1 mm |
| JESD-609 Code | e3 |
| Leakage Current | 0.033 mA |
| Length | 7.3 mm |
| Mounting Feature | SURFACE MOUNT |
| Negative Tolerance | 10% |
| Number of Terminals | 2 |
| Operating Temperature-Max |
125 °C |
| Operating Temperature-Min |
-55 °C |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | SMT |
| Packing Method | TR |
| Polarity | POLARIZED |
| Positive Tolerance | 10% |
| Rated (DC) Voltage (URdc) | 10 V |
| Ripple Current | 1152 mA |
| Size Code | 2917 |
| Surface Mount | YES |
| Tan Delta | 0.12 |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Shape | J BEND |
| Width | 4.3 mm |

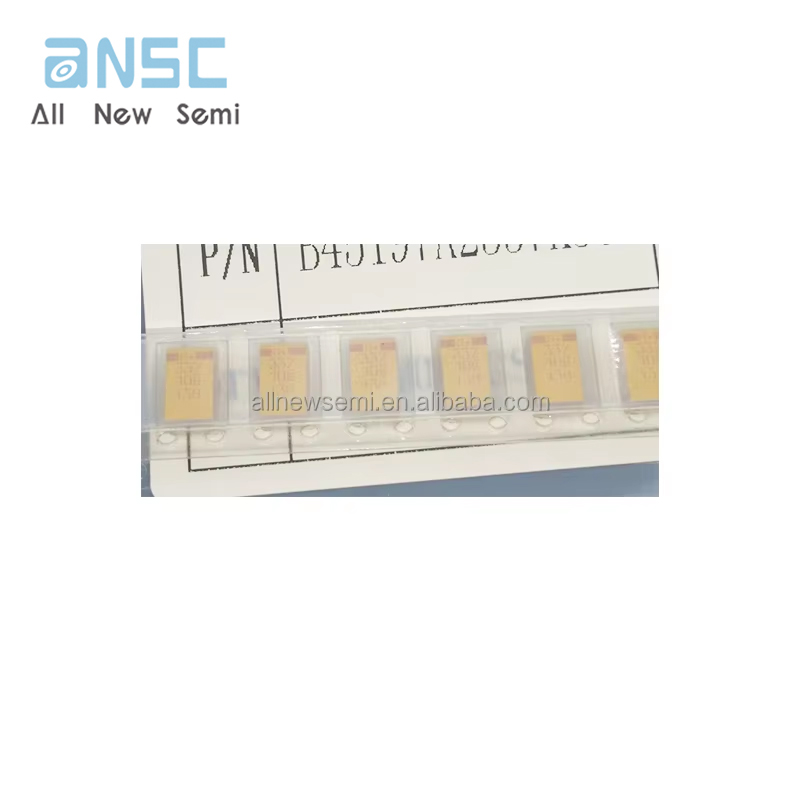

Product Photos

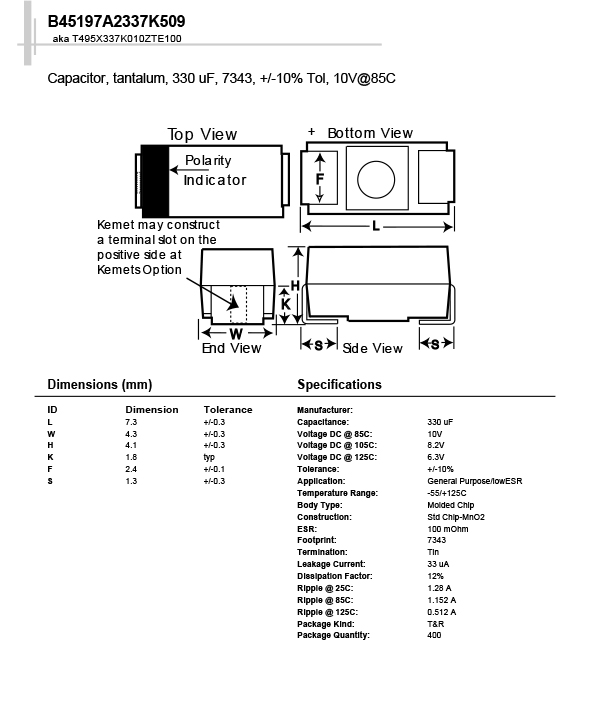

Product datasheet
For more information, please download
