Product Details
| Description These Schottky barrier diodes are intended for high-speed switching, circuit protection, and voltage clamping applications. Conduction loss is reduced by using an extremely low forward voltage. Miniature surface mount packages are ideal for hand-held and portable applications with limited space. Features Low Forward Voltage − 0.35 V (Typ) @ IF = 10 mAdc S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable Extremely Fast Switching Speed These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -BAT54SLT1G |
| category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BAT54 |

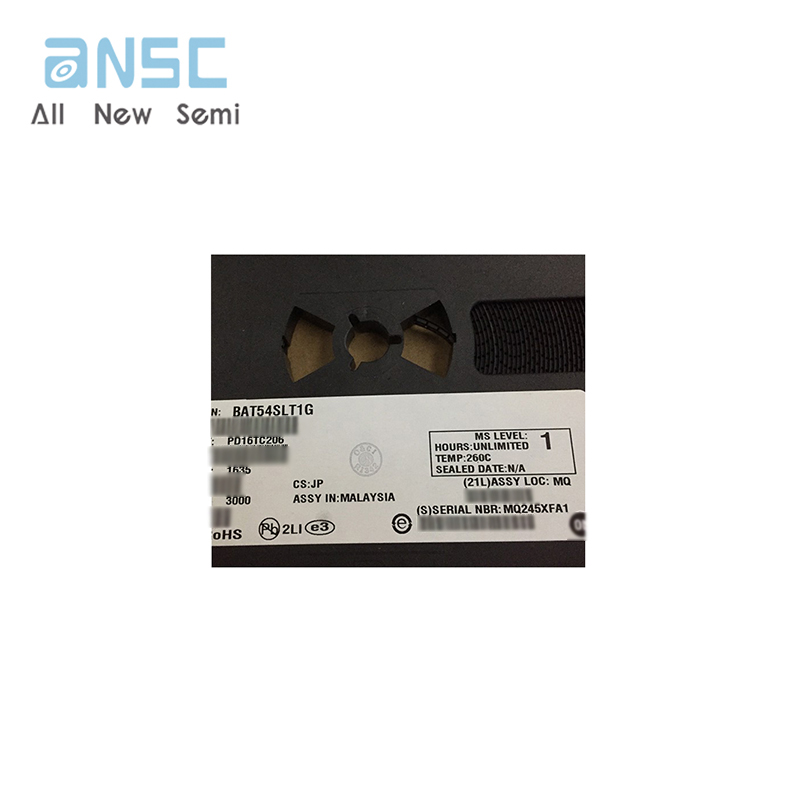

Product Photos

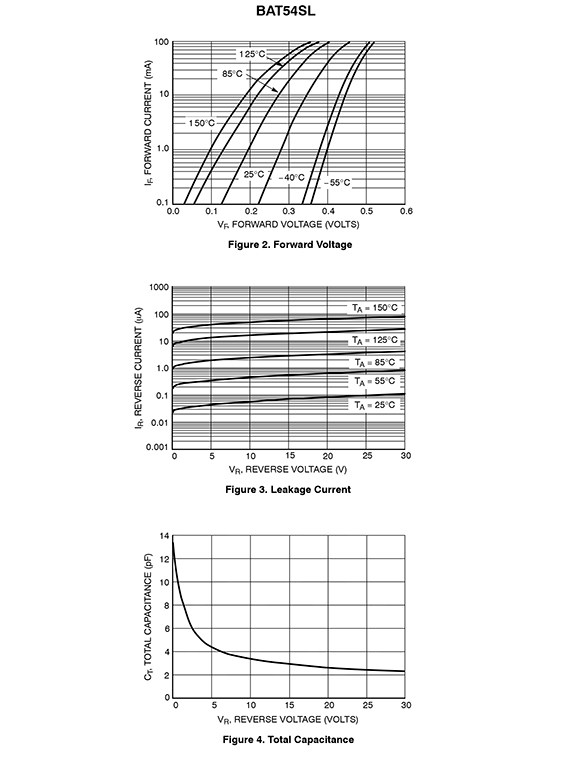

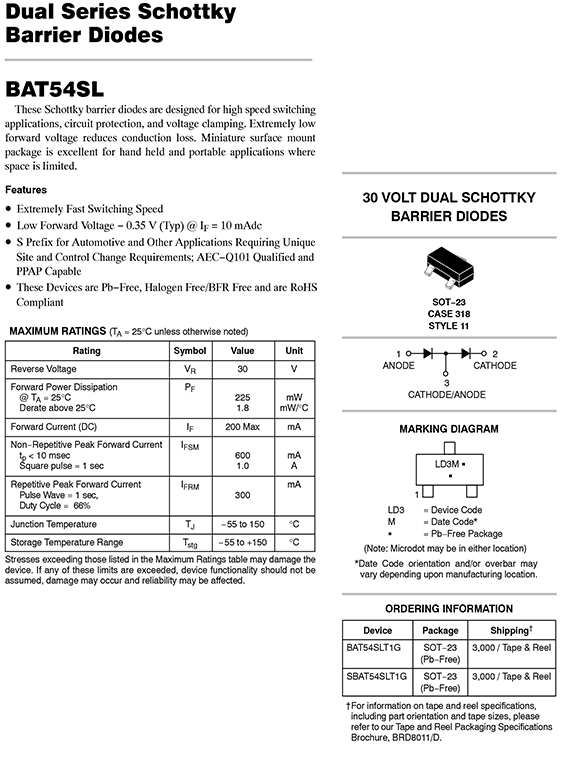

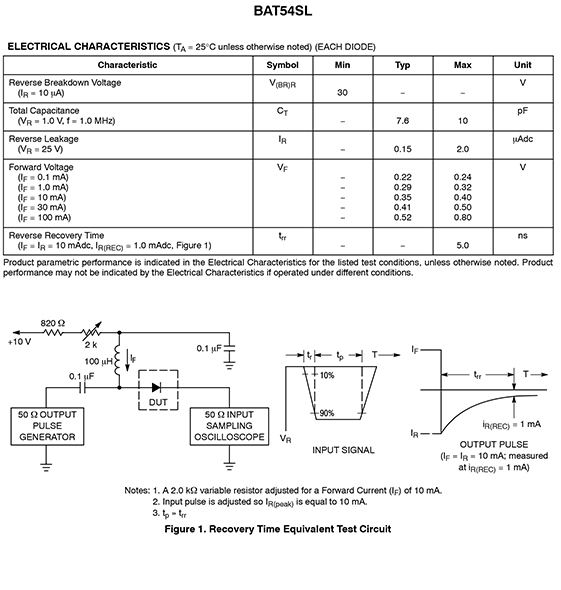

Product datasheet
For more information, please download
