DS4E-M-DC24V Description HIGHLY SENSITIVE 1500 V FCC SURGE BREAKDOWN VOLTAGE MINIATURE RELAY DS4E-M-DC24V Features • High sensitivity: 200 mW pick-up power 100 mW pick-up power types available • Latching types available • High switching capacity: 60 W, 125 V A • High breakdown voltage: 1,500 V FCC surge between open contacts 1,000 V AC between open contacts • DIP-1C type can be used with 14 pin IC socket 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets • Gold-cap silver palladium types available for 2 Form C type • Bifurcated contacts are standard DS4E-M-DC24V Applications Besides telecommunications, measuring devices, office equipment, computers and related equipment, DS relays are also recommended for a broad range of applications including business devices, audio systems, and industrial equipment. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DS4E-M-DC24V |
| Category | Relays |
| Signal Relays, Up to 2 Amps | |
| Manufacturer | Original |
| Series | DS |
| Packaging | Tube |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature |
-40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.44 kOhms |
| Base Product Number | DS4E-M |

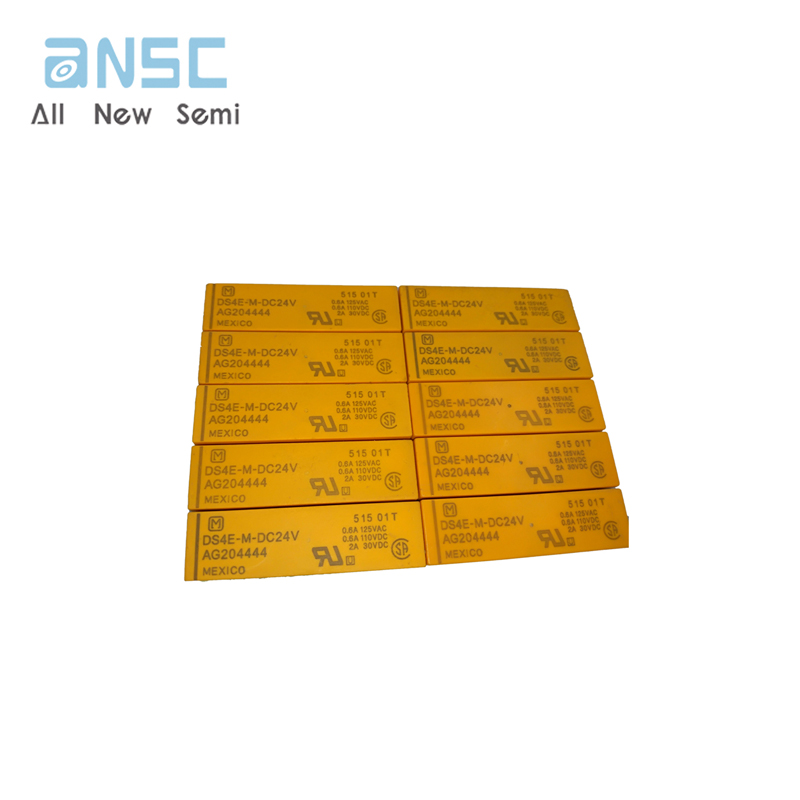

Product Photos

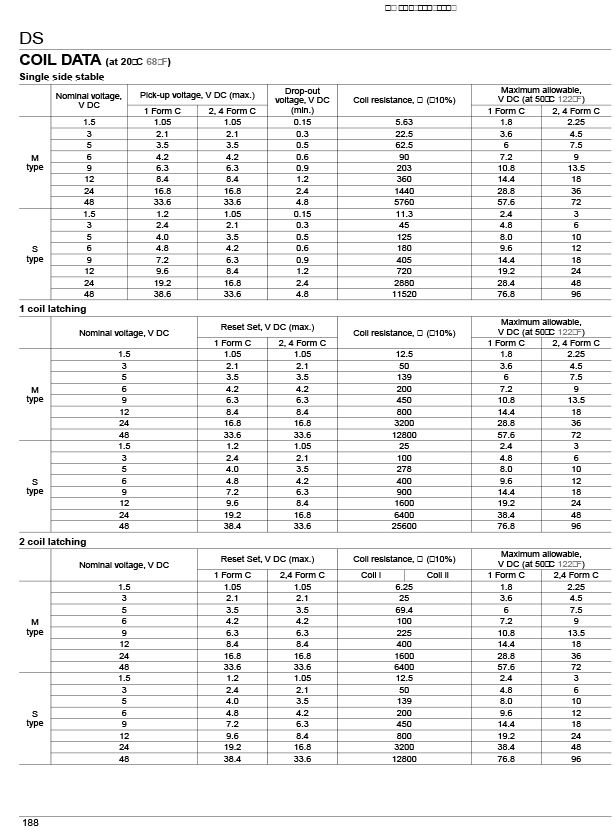

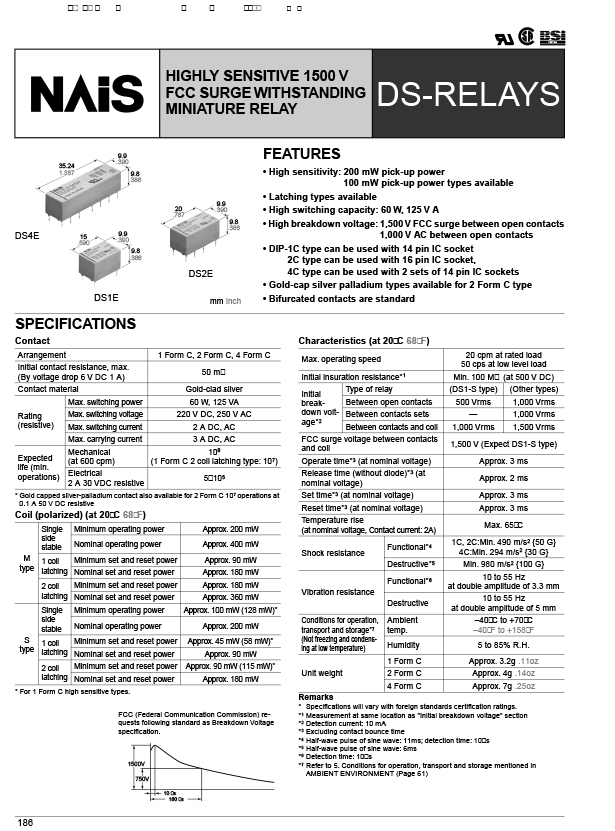

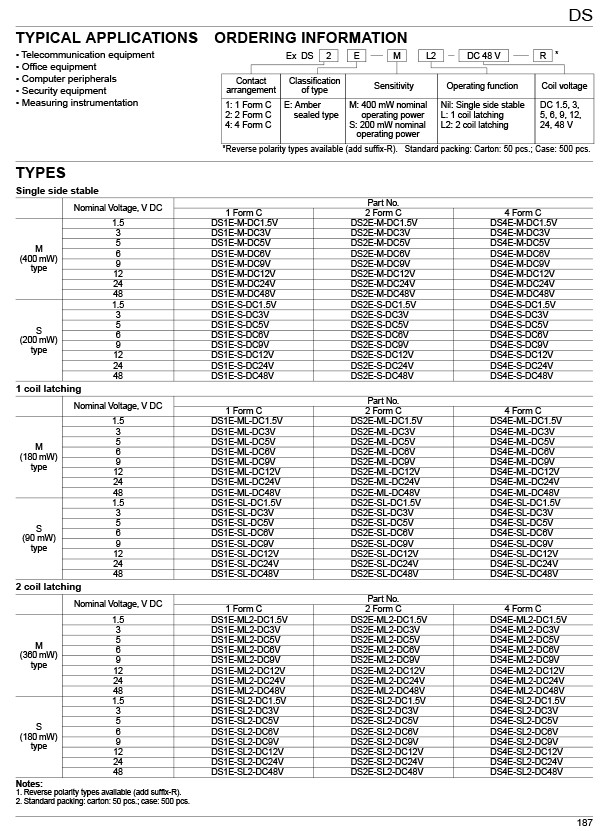

Product datasheet
