Product Overview
Programs on this device are of 0.126Lx0.063W 3.20mmx1.60mm size/dimension.
There is 10% tolerance on this part, speaking of negative tolerances.
Positive tolerance is present at 10% for this part.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with X7R being the highest temperature coefficient.The unit can operate at 50V Volts DC - Rated DC.
Product Features
a size/dimension of 0.126Lx0.063W 3.20mmx1.60mm
a tolerance of 10%
a tolerance of 10%
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 50V
Product Applications
General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - CC1206KKX7R9BB224 |
|
Category |
Capacitors Ceramic Capacitors |
|
Mfr |
- |
|
Series |
CC |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Capacitance |
0.22 µF |
|
Tolerance |
±10% |
|
Voltage - Rated |
50V |
|
Temperature Coefficient |
X7R |
|
Operating Temperature |
-55°C ~ 125°C |
|
Features |
- |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Failure Rate |
- |
|
Mounting Type |
Surface Mount, MLCC |
|
Package / Case |
1206 (3216 Metric) |
|
Size / Dimension |
0.126" L x 0.063" W (3.20mm x 1.60mm) |
|
Height - Seated (Max) |
- |
|
Thickness (Max) |
0.049" (1.25mm) |
|
Lead Spacing |
- |
|
Lead Style |
- |

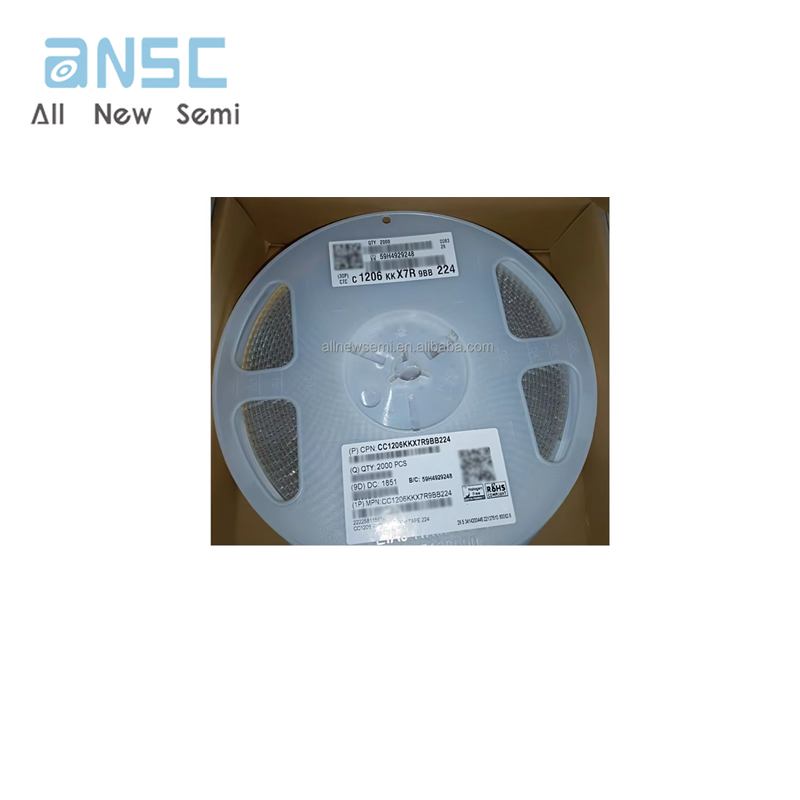

Actual image of the product

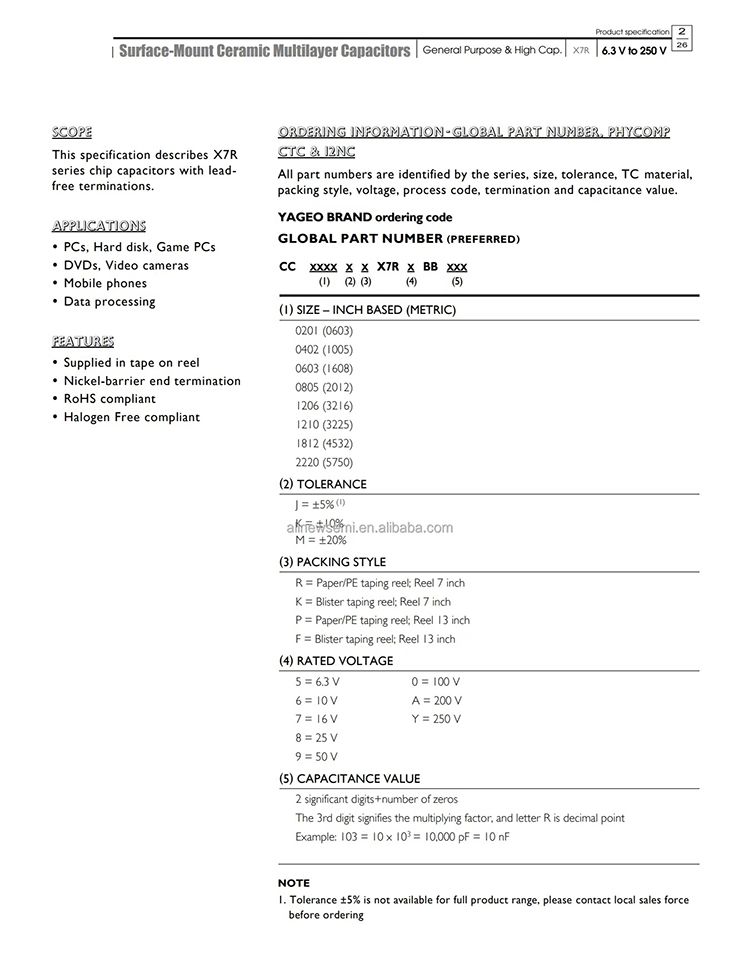

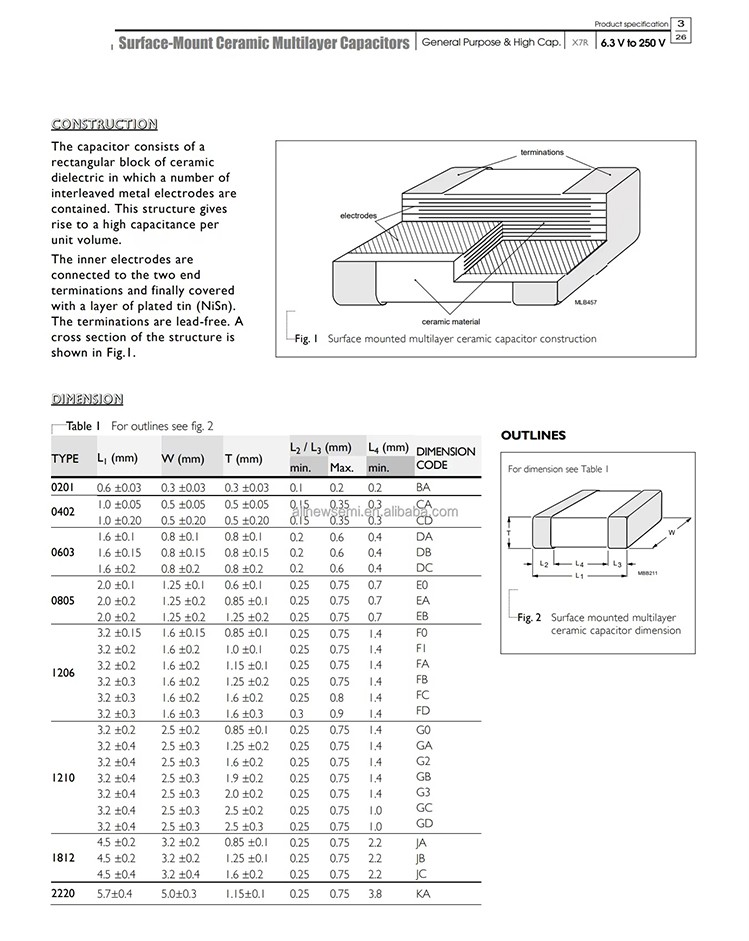

Product datasheet
For more information, please download
