Product Details
|
General Information The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Transient Voltage Suppressor Array combination diodes for surge and ESD protection applications in an 8 Lead Narrow Body SOIC package size format. Bourns Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes roll away. The Bourns® device will meet IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge) requirements. Features ■ Lead free device (RoHS compliant*) ■ Protects up to 4 I/O ports ■ Bidirectional configuration ■ ESD protection ■ Low capacitance 6 pF Applications ■ Ethernet – 10/100/1000 Base T ■ Personal digital assistant ■ Handheld electronics ■ Cellular phones ■ Video cards |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CDNBS08-SLVU2.8-8 |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 2.8V (Max) |
| Voltage - Breakdown (Min) | 3V |
| Voltage - Clamping (Max) @ Ipp | 17V |
|
Current - Peak Pulse (10/1000µs) |
30A (8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | Yes |
| Applications | Ethernet |
| Capacitance @ Frequency | - |
| Operating Temperature |
-55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | CDNBS08 |

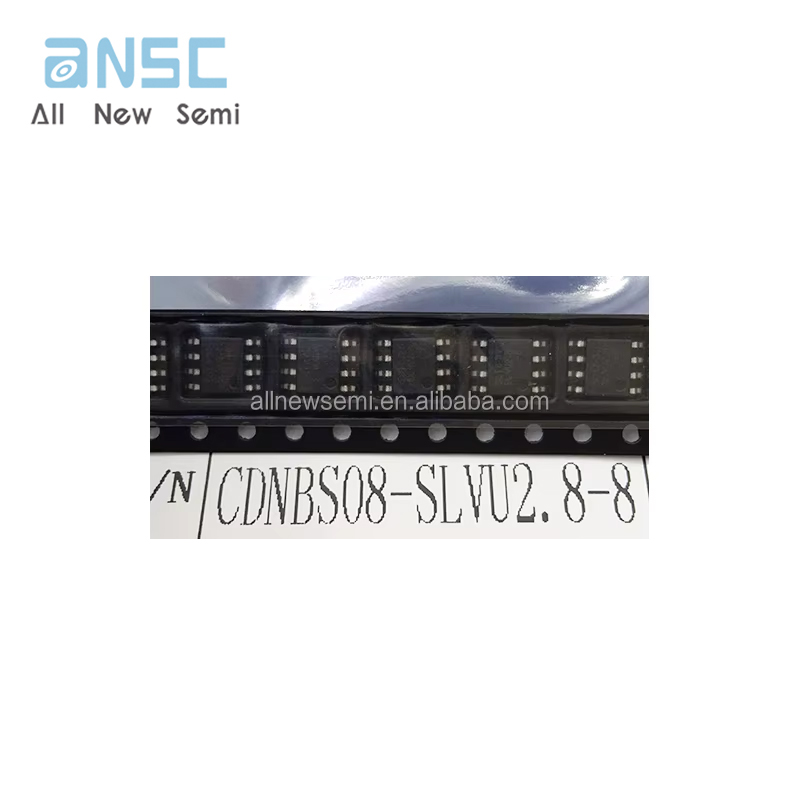

Actual image of the product

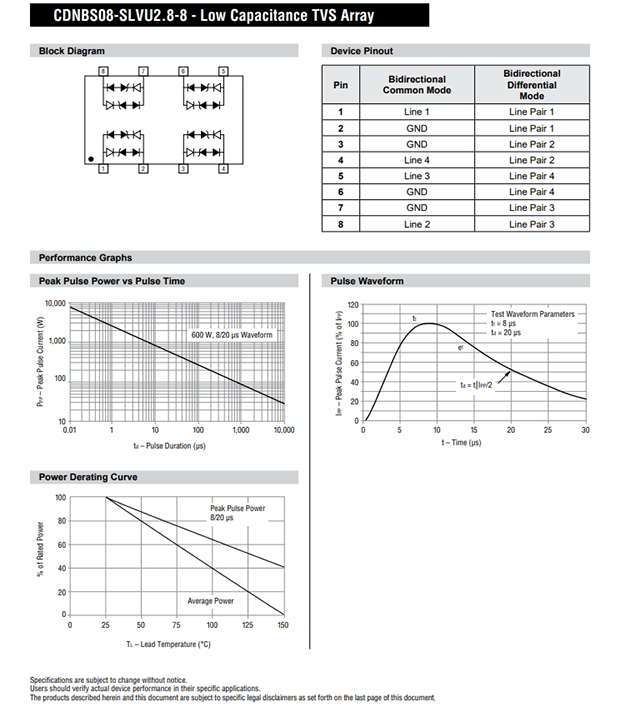

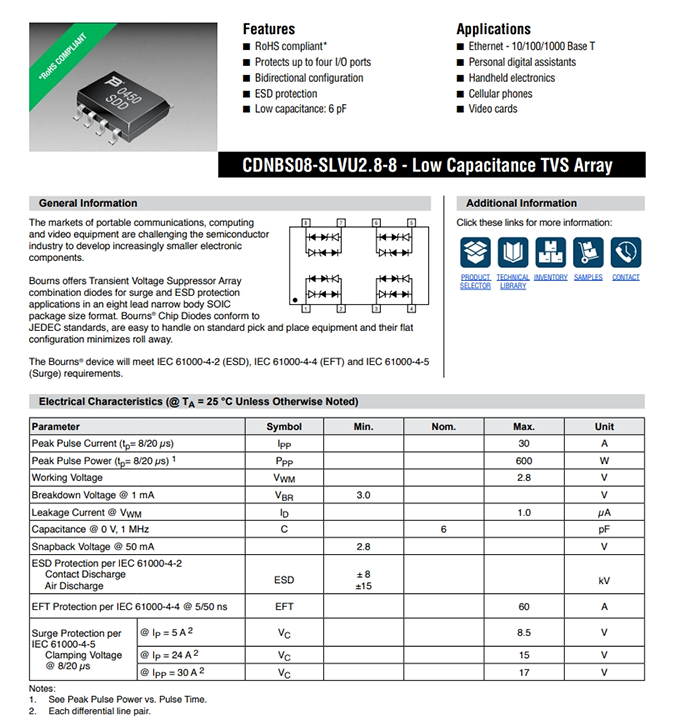

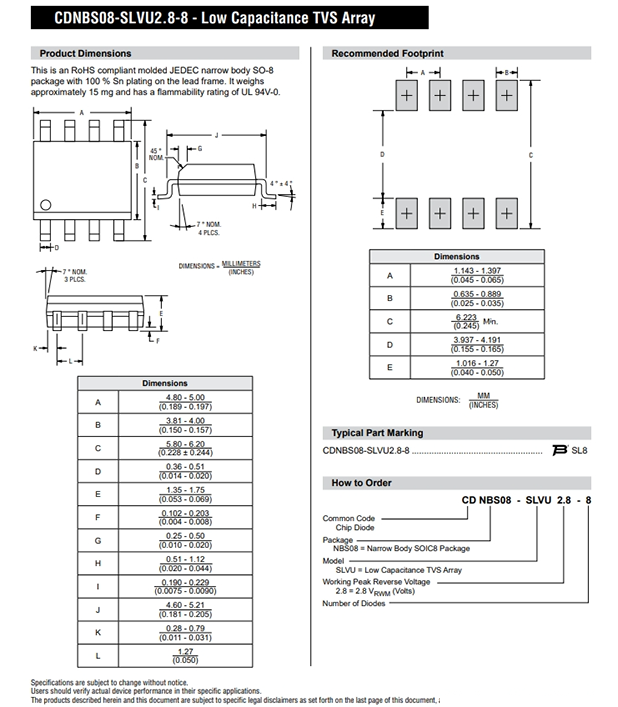

Product datasheet
For more information, please download
