Product Overview
TELECOM CIRCUIT is the type of IC it uses for telecom.When designing, 1 functions are configured.Pins on 24 telecom products are designed to fit its configuration.
Product Features
TELECOM CIRCUIT as telecom IC type
Product Applications
FX806ALS Telecom applications.
LAN Routers
Digital Modems
SONET/SDH terminal
Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
Digital Cross-connect Systems (DCS)
Product Description
| Type# | Description |
| ANSC PART# | ANSC-FX806ALS |
| Ihs Manufacturer | Original |
| Part Package Code | LCC |
| Package Description | QCCJ |
| Pin Count | 24 |
| Length | 10.16 mm |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.7 mm |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Telecom IC Type | TELECOM CIRCUIT |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN SILVER |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Width | 10.16 mm |

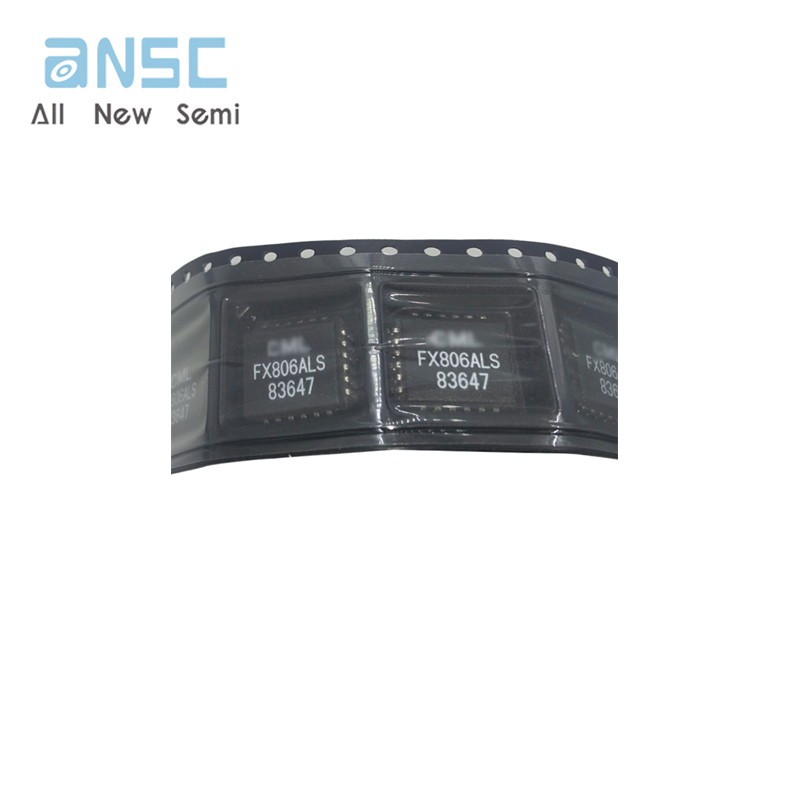

Actual image of the product

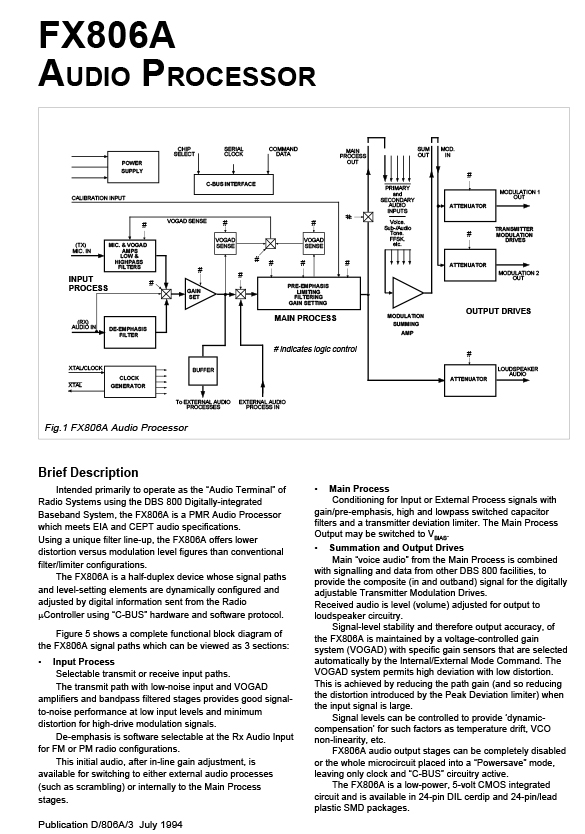

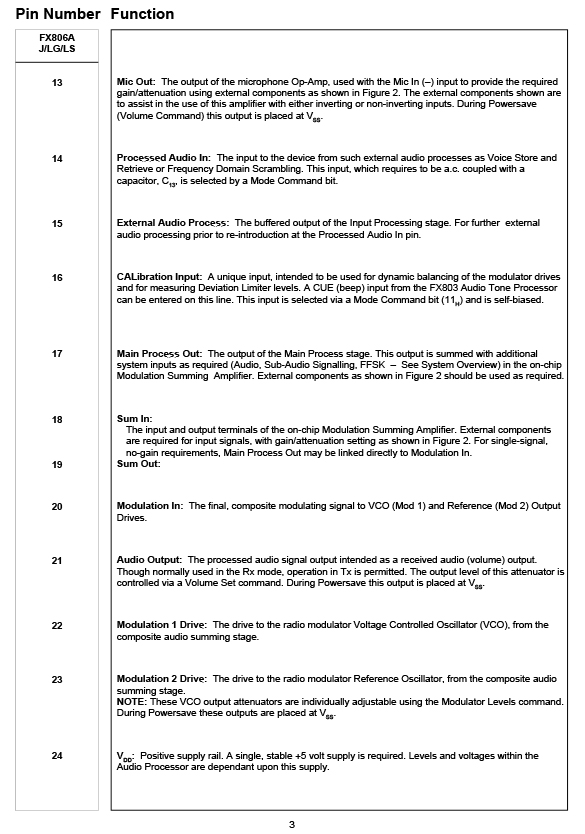

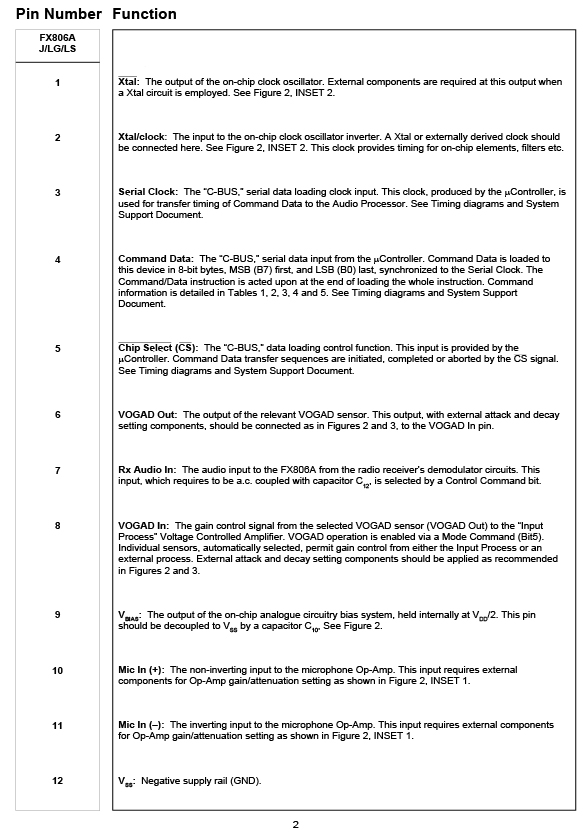

Product datasheet
