Product Details
GENERAL DESCRIPTION
The Winbond® ISD1700 ChipCorder® Series is a high quality, fully integrated, single-chip multi
message voice record and playback device ideally suited to a variety of electronic systems. The
message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the
specific device.
FEATURES
Integrated message management systems for single-chip, push-button applications
o REC:level-trigger for recording
o PLAY:edge-trigger for individual message or level-trigger for looping playback sequentially
o ERASE:edge-triggered erase for first or last message or level-triggered erase for all messages
o FWD:edge-trigger to advance to the next message or fast message scan during the playback
o VOL: 8 levels output volume control
o INT RDY : ready or busy status indication
o RESET: return to the default state
o Automatic power-down after each operation cycle
Message and operation indicators
o Four customizable Sound Effects (SEs) for audible indication
o Optional vAlert (voiceAlert) to indicate the presence of new messages
o LED: stay on during recording, blink during playback, forward and erase operations
Dual operating modes
o Standalone mode:
Integrated message management techniques
Automatic power-down after each operation cycle
o SPI mode
Fully user selectable and controllable options via APC register and various SPI commands
Two individual input channels
o MIC+/MIC-: differential microphone inputs with AGC (Automatic Gain Control)
o AnaIn: single-ended auxiliary analog input for recording or feed-through
Dual output channels
o Differential PWM Class D speaker outputs directly drives an 8 Ωspeaker or a typical buzzer
o Configurable AUD (current) or AUX (voltage) single-ended output drives external audio amplifier
ChipCorder standard features
o High-quality, natural voice and audio reproduction
o 2.4V to 5.5V operating voltage
o 100-year message retention (typical)
o 100,000 record cycles (typical)
Temperature options:
o Commercial: 0°C to +50°C (die); 0°C to +70°C (packaged units)
o Industrial: -40°C to +85°C (packaged units)
Packaging types: available in die, PDIP, SOIC and TSOP
Package option: Lead-free packaged units
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -ISD1730PY |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Voice Record and Playback | |
| Manufacturer | Original |
| Series | ChipCorder® |
| Packaging | Tube |
| Part Status | Active |
| Interface | Pushbutton, SPI |
| Input Signal | Analog - Single Ended, Microphone |
| Output Signal | Analog - Single Ended, PWM Speaker Output |
| Sampling Frequency | 4 ~ 12kHz |
| Duration | 20 ~ 60 Sec |
| Filter Pass Band | - |
| Messaging | Multiple |
| Oscillator Type | Internal |
| Features | Automatic Gain Control, Volume Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 2.4 V ~ 5.5 V |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP |
| Base Product Number | ISD1730 |

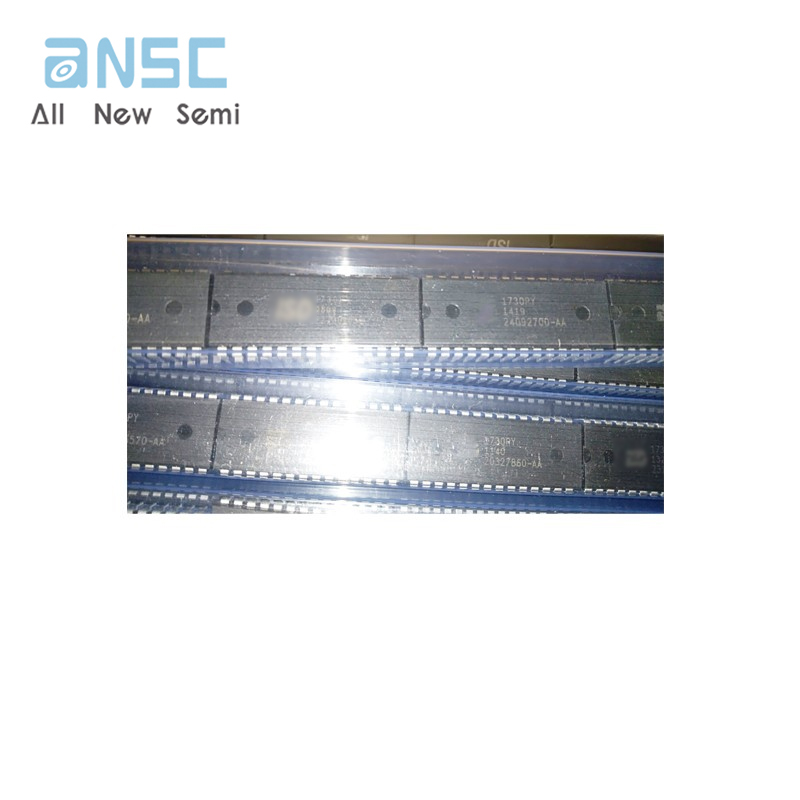

Actual image of the product

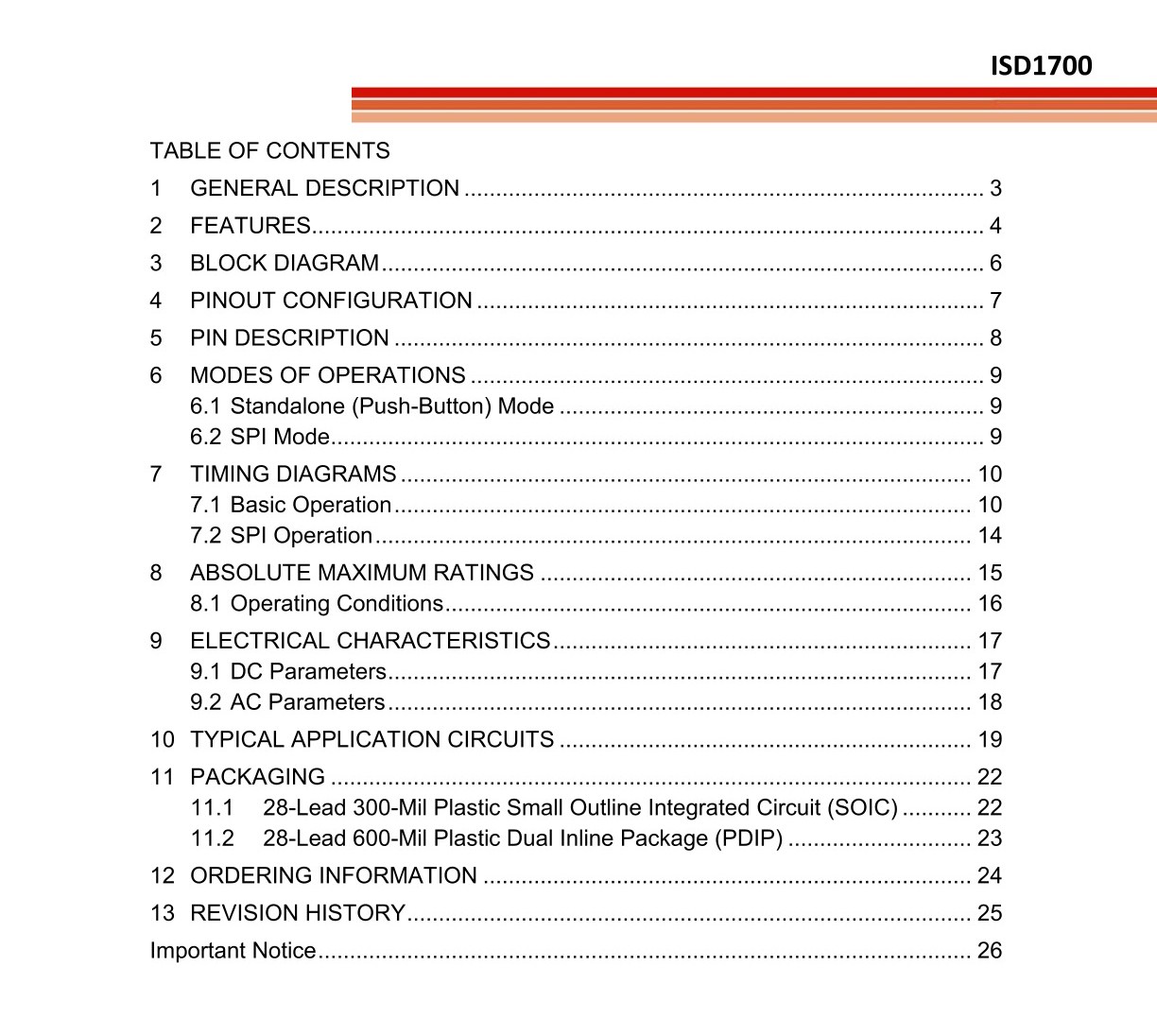

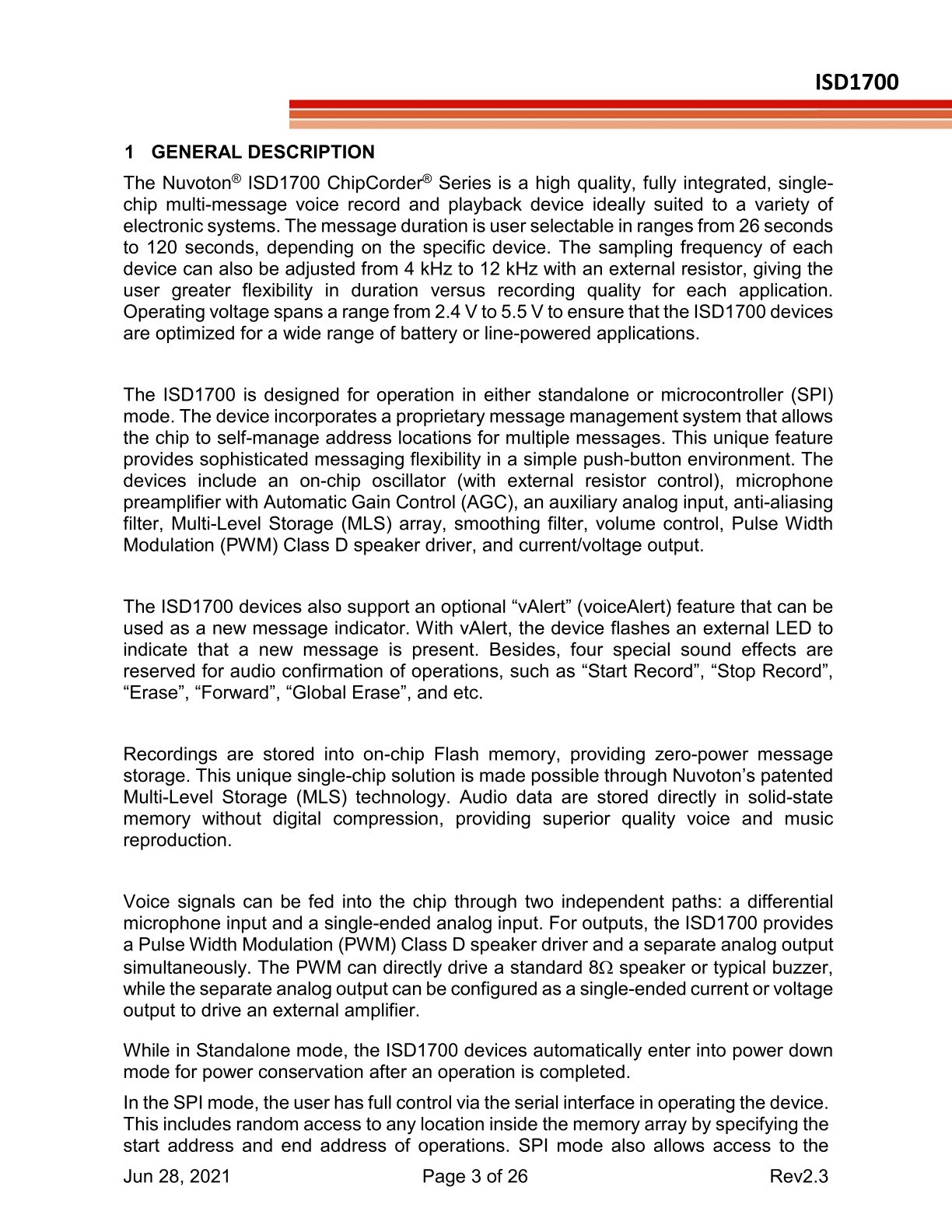

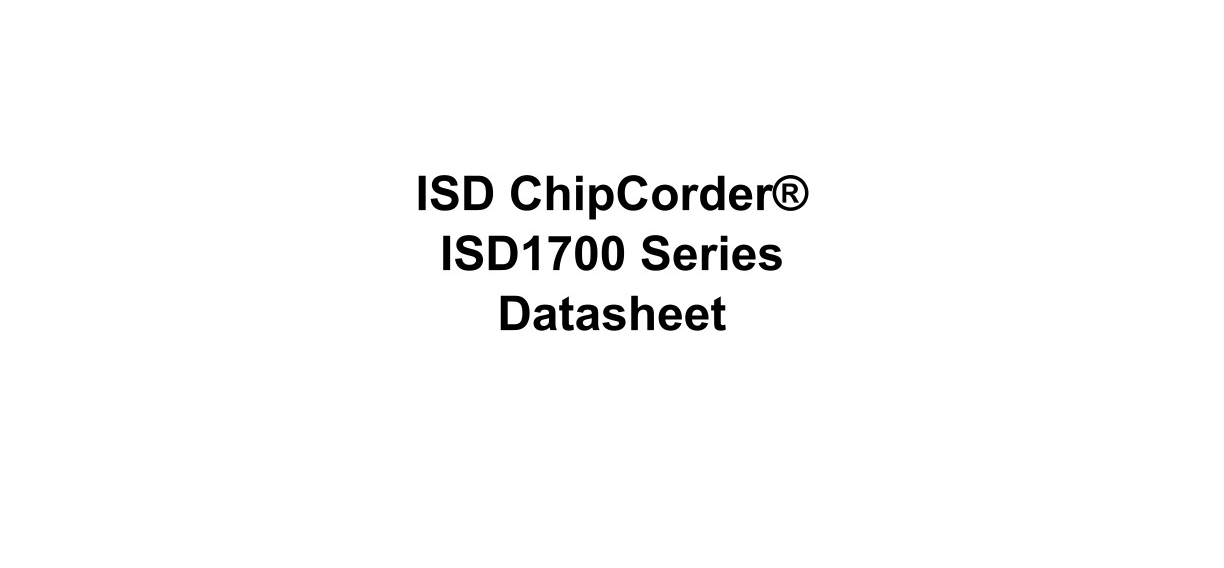

Product datasheet
