Product Details
|
Overview The MPC7410 is the second implementation of the fourth generation (G4) microprocessors . The MPC7410 implements the full PowerPC 32-bit architecture and is targeted at both computing and embedded systems applications. Some comments on the MPC7410 with respect to the MPC750: • The MPC7410 adds an implementation of the new AltiVec™ technology instruction set. • The MPC7410 includes significant improvements in memory subsystem (MSS) bandwidth and offers an optional, high-bandwidth MPX bus interface. • The MPC7410 adds full hardware-based multiprocessing capability, including a five-state cache coherency protocol (four MESI states plus a fifth state for shared intervention). • The MPC7410 is implemented in a next generation process technology for core frequency improvement. • The MPC7410 floating-point unit has been improved to make latency equal for double- and single-precision operations involving multiplication. • The completion queue has been extended to eight slots. • There are no other significant changes to scalar pipelines, decode/dispatch/completion mechanisms, or the branch unit. The MPC750 four-stage pipeline model is unchanged (fetch, decode/dispatch, execute, complete/writeback). Some comments on the MPC7410 with respect to the MPC7400: • The MPC7410 adds configurable direct-mapped SRAM capability to the L2 cache interface. • The MPC7410 adds 32-bit interface support to the L2 cache interface. The MPC7410 implements a 19th L2 address pin (L2ASPARE on the MPC7400) in order to support additional address range. • The MPC7410 removes support for 3.3-V I/O on the L2 cache interface. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - MPC7410HX500LE |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microprocessors | |
| Manufacturer | Original |
| Series | MPC74xx |
| Packaging | Tray |
| Part Status | Obsolete |
| Core Processor | PowerPC G4 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 500MHz |
| Co-Processors/DSP | - |
| RAM Controllers | - |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Ethernet | - |
| SATA | - |
| USB | - |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Security Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 360-BCBGA, FCCBGA |
| Supplier Device Package | 360-CBGA (25x25) |
| Additional Interfaces | - |
| Base Product Number | MPC74 |

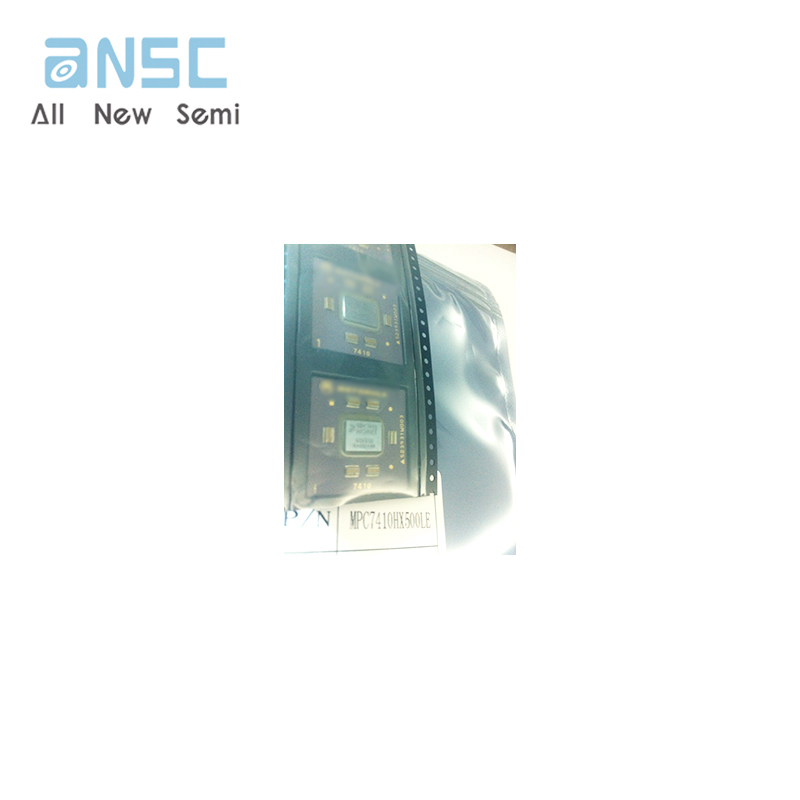

Actual image of the product

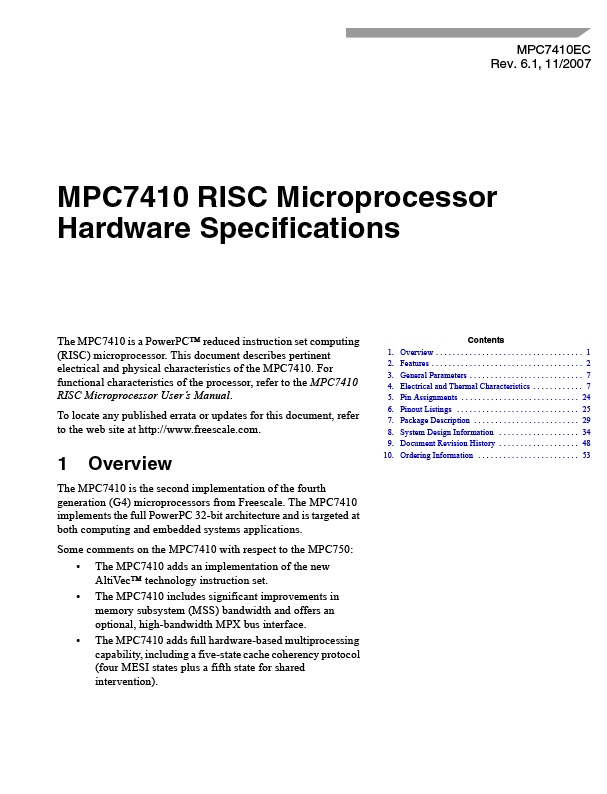

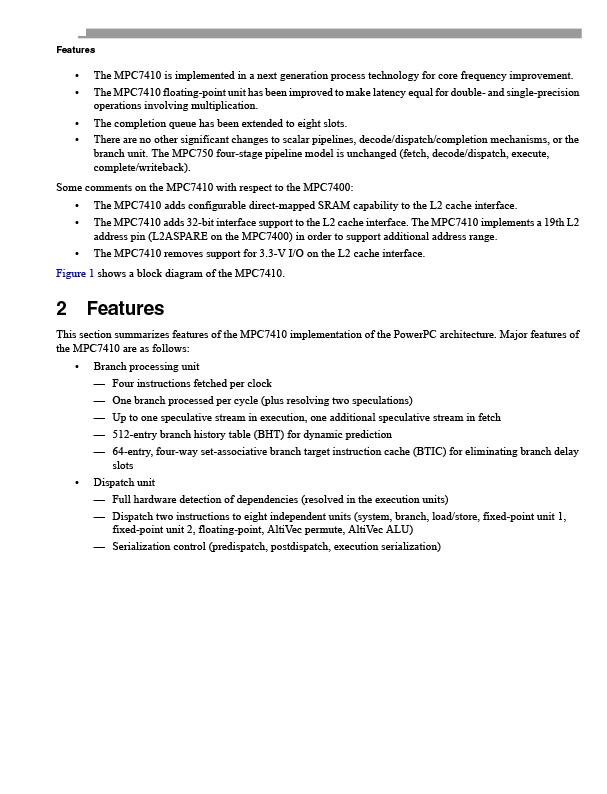

Product datasheet
For more information, please download
