Product Details
| The LSTTL/MSI SN54/74LS138 is a high speed 1-of-8 Decoder/Demultiplexer. This device is ideally suited for high speed bipolar memory chip select address decoding. The multiple input enables allow parallel ex pansion to a 1-of-24 decoder using just three LS138 devices or to a 1-of-32 decoder using four LS138s and one inverter. The LS138 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families. • Demultiplexing Capability • Multiple Input Enable for Easy Expansion • Typical Power Dissipation of 32 mW • Active Low Mutually Exclusive Outputs • Input Clamp Diodes Limit High Speed Termination Effects |
Product Description
| Type | Description |
| ANSC PART# | ANSC - SN54LS138J |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | Original |
| Series | 54LS |
| Packaging | Tube |
| Part Status | Active |
| Type | Decoder/Demultiplexer |
| Circuit | 1 x 3:8 |
| Independent Circuits | 1 |
| Current - Output High, Low | 400µA, 4mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |

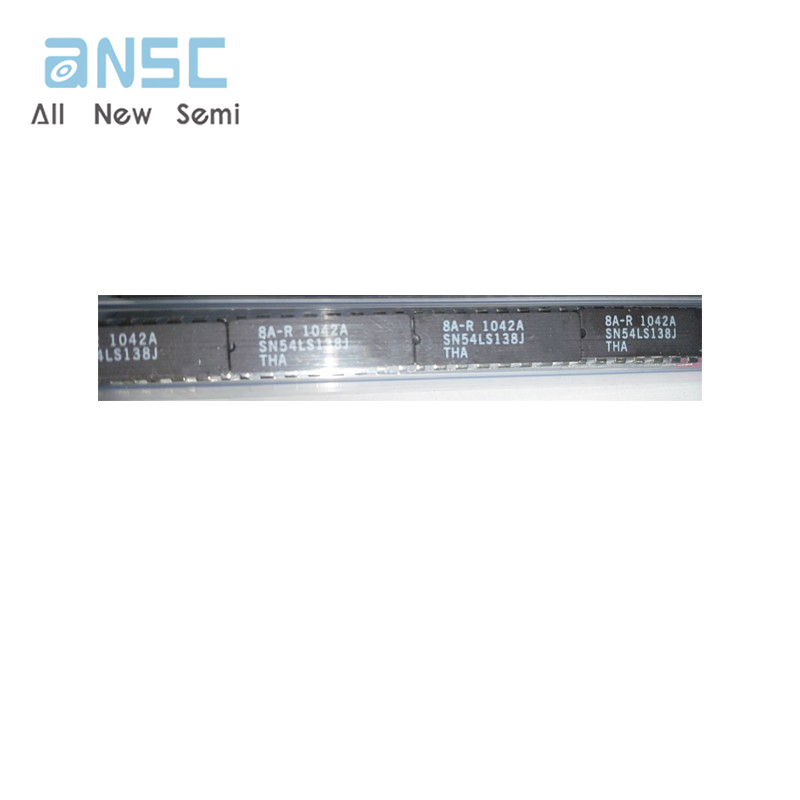

Actual image of the product

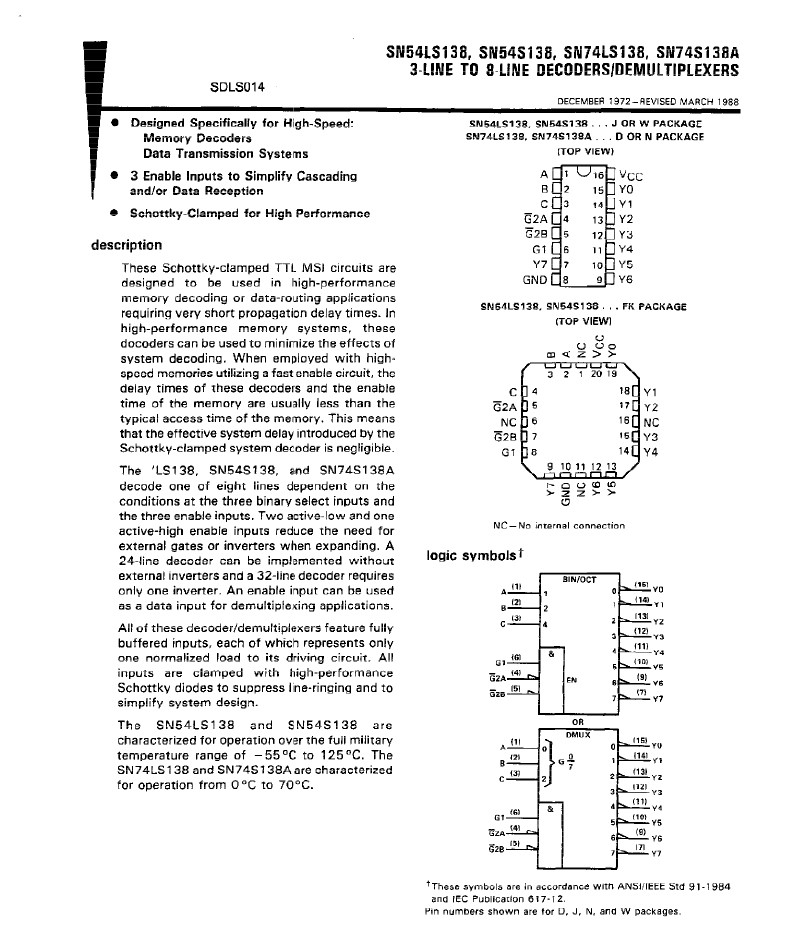

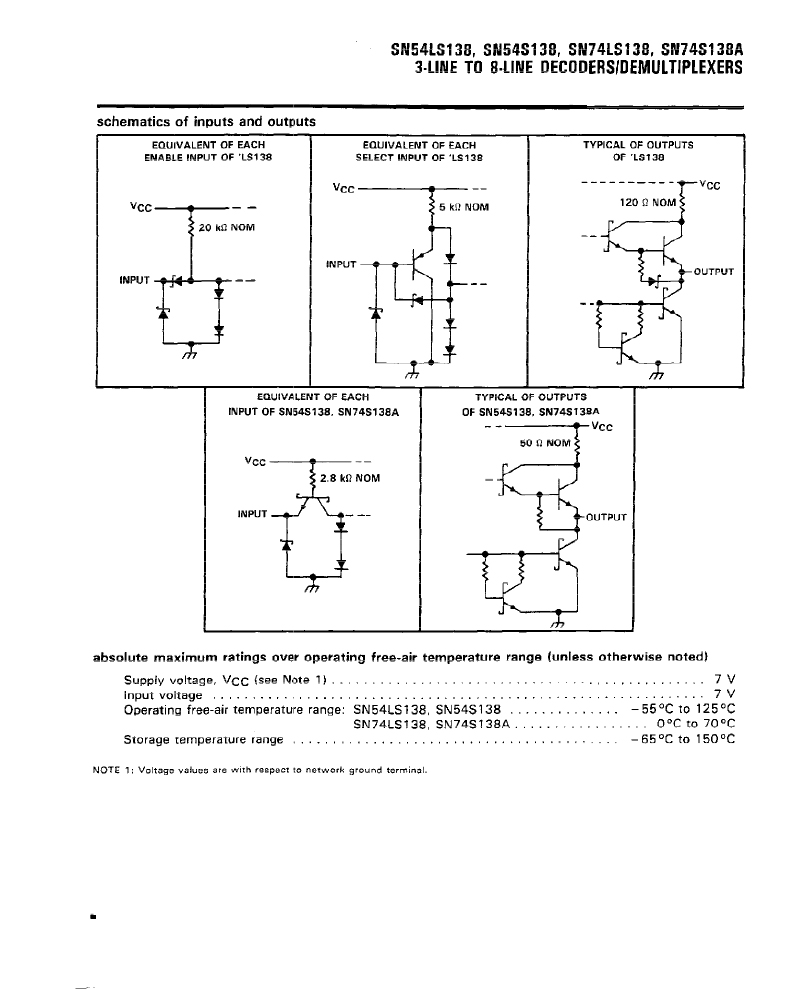

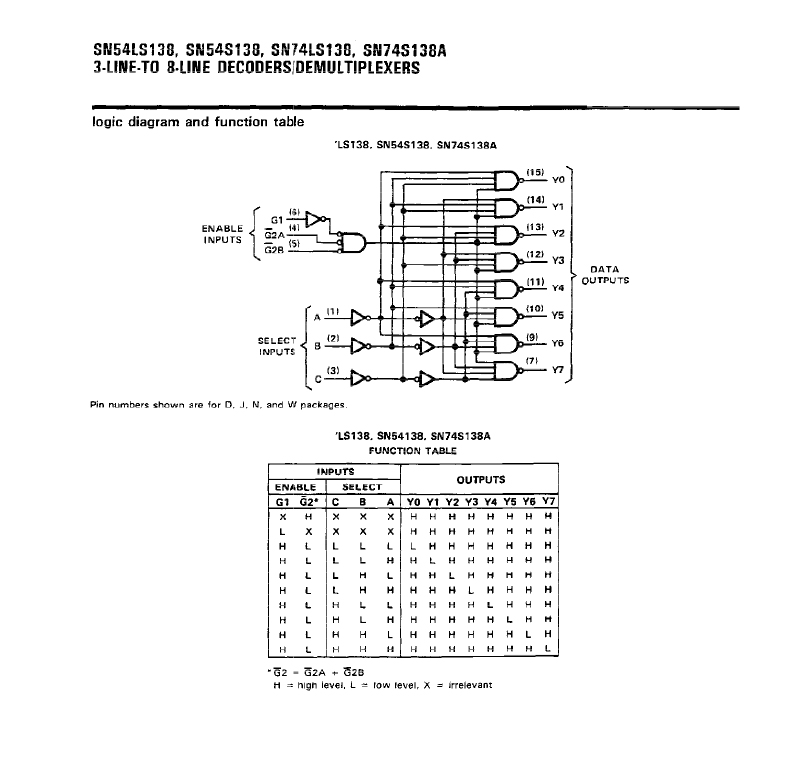

Product datasheet
For more information, please download
