Product Description
| Type | Description |
| PART# | 1N6297A |
| Ihs Manufacturer | - |
| Package Description | PLASTIC, CASE 1 , 2 PIN |
| Pin Count | 2 |
| Manufacturer Package Code | CASE 1 |
| Additional Feature | HIGH RELIABILITY |
| Breakdown Voltage-Max | 126 V |
| Breakdown Voltage-Min | 114 V |
| Breakdown Voltage-Nom | 120 V |
| Case Connection | ISOLATED |
| Clamping Voltage-Max | 165 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Moisture Sensitivity Level | 1 |
| Non-rep Peak Rev Power Dis-Max | 1500 W |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 1.52 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 102 V |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Finish | TIN LEAD |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |

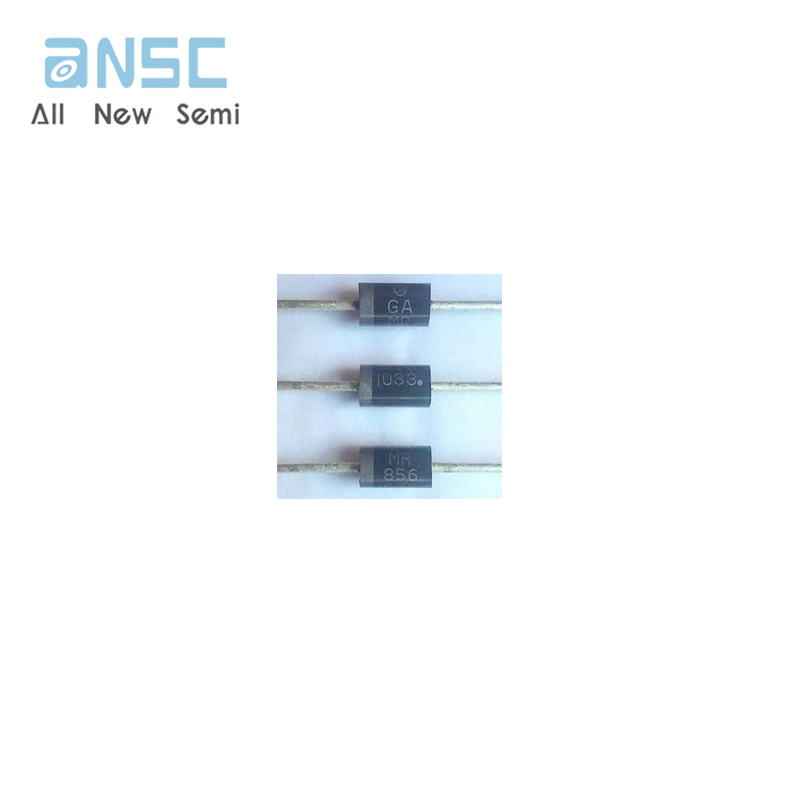

Product Photos
