Product Descriptions

The UT6264B is a 65,536-bit lowpowerCMOSstaticrandomaccessmemoryorganized as 8,192 words by 8 bits. It isfabricated using high performance, highreliability CMOS technology.

The UT6264B is designed for high-speedand low power application. It is particularlywell suited for battery back-up nonvolatilememory application.

The UT6264B operates from a single 5Vpower supply and all inputs and outputs arefully TTL compatible.

Product Features

Access time :35/70ns (max.)

Low power consumption:

Operating : 60 mA (typical)

Standby : 3mA (typical) normal

2 uA (typical) L-version

1 uA (typical) LL-version

Single 5V power supply

All inputs and outputs TTL compatible

Fully static operation

Three state outputs

Data retention voltage : 2V (min.)

Package : 28-pin 600 mil PDIP

28-pin 330 mil SOP

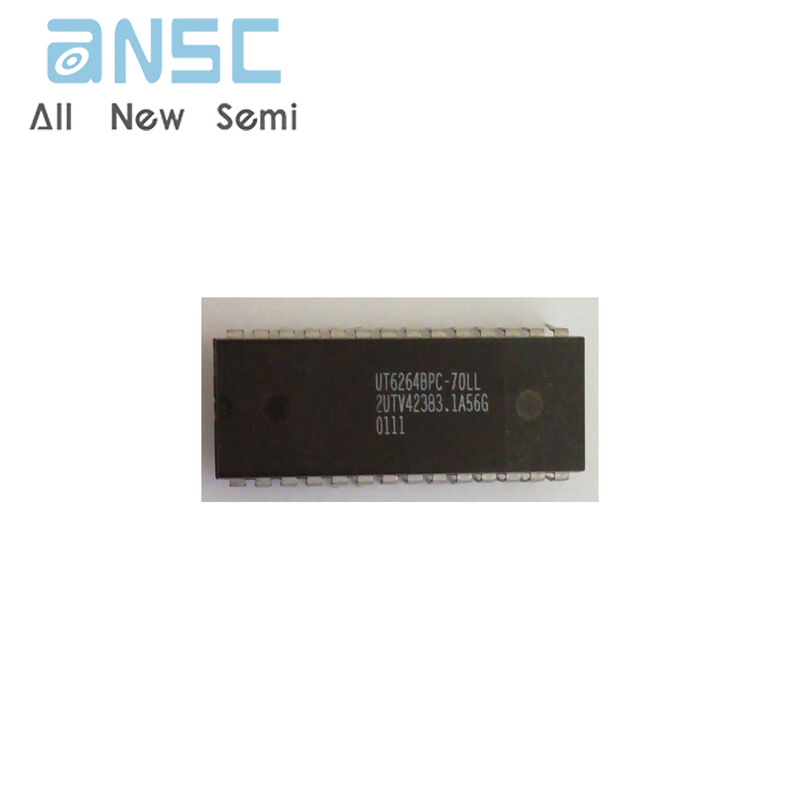

Product photos

For more product information, please download the PDF
