Product Descriptions
The CC2531 is a USB enabled true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It enables USB dongles or USB upgradable network nodes to be built with low total bill-of-material costs. The CC2531 combines the performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2531 has various operating modes, making it suited for systems where ultralow power consumption is required. Short
transition times between operating modes further ensure low energy consumption.
Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack™) from Texas Instruments, the CC2531 provides a robust and complete ZigBee USB dongle or firmware upgradable network node.
Combined with the golden-unit-status RemoTI™ stack from Texas Instruments, the CC2531 provides a robust ZigBee RF4CE remote-control target for USB dongle or TV/STB implementations.
Product Features
• RF/Layout
– 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
– Excellent Receiver Sensitivity and Robustness to Interference
– Programmable Output Power Up to 4.5 dBm
– Few External Components
– Only a Single Crystal Needed for Mesh Network Systems
– 6-mm × 6-mm QFN40 Package
– Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T-66 (Japan)
• USB
– USB 2.0 Certified Full Speed Device (12 Mbps)
– 5 Highly Flexible Endpoints
– 1-KB dedicated FIFO
– DMA access to FIFO
– No 48-MHz Crystal Required
• Low Power
– Active Mode RX (CPU Idle): 24 mA
– Active Mode TX at 1 dBm (CPU Idle): 29 mA
– Power Mode 1 (4 µs Wake-Up): 0.2 mA
– Power Mode 2 (Sleep Timer Running): 1 µA
– Power Mode 3 (External Interrupts): 0.4 µA
– Wide Supply-Voltage Range (2 V–3.6 V)
• Microcontroller
– High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch
– 256-KB In-System-Programmable Flash
– 8-KB RAM With Retention in All Power Modes
– Hardware Debug Support
• Peripherals
– Powerful Five-Channel DMA
– IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)
– IR Generation Circuitry
– 32-kHz Sleep Timer With Capture
– CSMA/CA Hardware Support
– Accurate Digital RSSI/LQI Support
– Battery Monitor and Temperature Sensor
– 12-Bit ADC With Eight Channels and Configurable Resolution
– AES Security Coprocessor
– Two Powerful USARTs With Support for Several Serial Protocols
– 21 General-Purpose I/O Pins (19 × 4 mA, 2 × 20 mA)
– Watchdog Timer
• Development Tools
– CC2531 Development Kit
– Certified CC2531 USB Dongle Reference Design
– SmartRF™ Software
– Packet Sniffer
– IAR Embedded Workbench™ Available
Product Applications
• USB Upgradable 2.4-GHz IEEE 802.15.4 Systems
• RF4CE Remote Control Target for TV or STB
• PC Peripherals
• ZigBee Systems
• Home/Building Automation
• Lighting Systems
• Industrial Control and Monitoring
• Low-Power Wireless Sensor Networks
• Consumer Electronics
• Health Care
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CC2531F256RHAR |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee庐 |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 250kbps |
| Power - Output | 4.5dBm |
| Sensitivity | -97dBm |
| Memory Size | 256kB Flash, 8kB RAM |
| Serial Interfaces | SPI, USART, USB |
| GPIO | 21 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 20.5mA ~ 24.3mA |
| Current - Transmitting | 28.7mA ~ 33.5mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| Base Product Number | CC2531 |

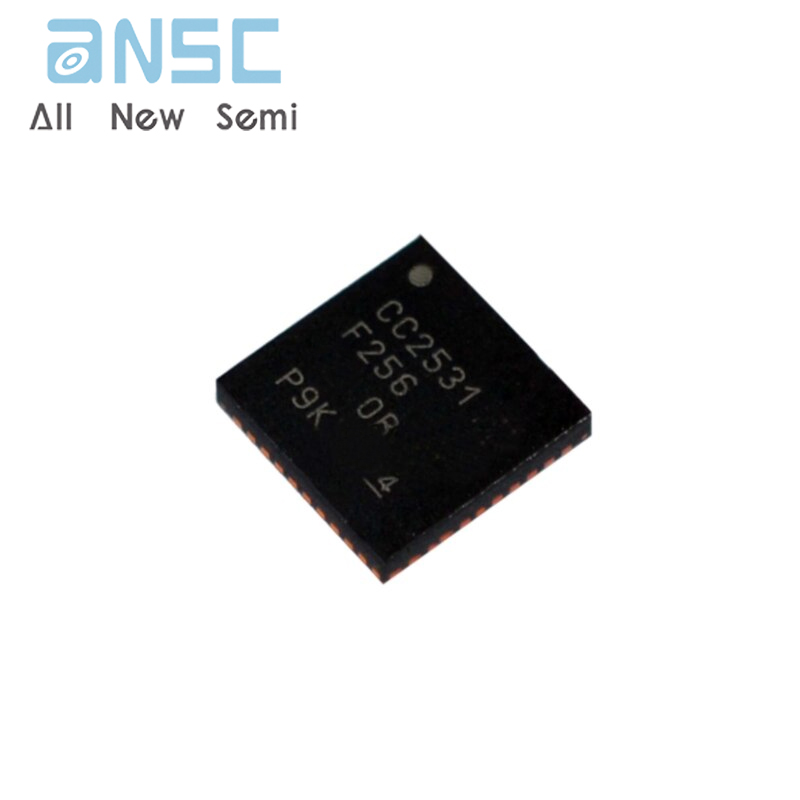

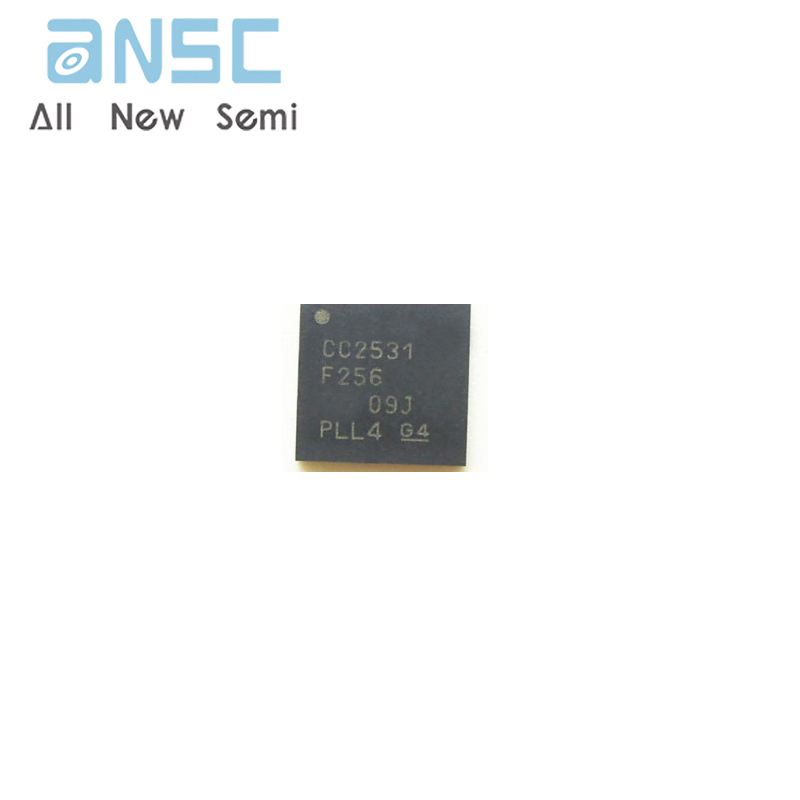

Product photos
