Product Descriptions
The UCC27200/1 family of high frequency N-Channel MOSFET drivers include a 120-V bootstrap diode and high-side/low-side driver with independent inputs for maximum control flexibility.
This allows for N-Channel MOSFET control in half-bridge, full-bridge, two-switch forward and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1-ns between the turn-on and turn-off of each other.
Product Features
• Specified from -40 °C to 140 °C
• Drives Two N-Channel MOSFETs in High-Side/Low-Side Configuration
• Maximum Boot Voltage 120 V
• Maximum VDD Voltage 20 V
• On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode
• Greater than 1 MHz of Operation
• 0-ns Propagation Delay Times
• 3-A Sink, 3-A Source Output Currents
• 8-ns Rise/7-ns Fall Time with 1000-pF Load
• 1-ns Delay Matching
• Under Voltage Lockout for High-Side and Low-Side Drive
Product Applications
• Power Supplies for Telecom, Datacom, and Merchant Markets
• Half-Bridge Applications and Full-Bridge Converters
• Isolated Bus Architecture
• Two-Switch Forward Converters
• Active-Clamp Forward Converters
• High Voltage Synchronous-Buck Converters
• Class-D Audio Amplifiers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-UCC27201DDAR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 8V ~ 17V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 120 V |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | UCC27201 |

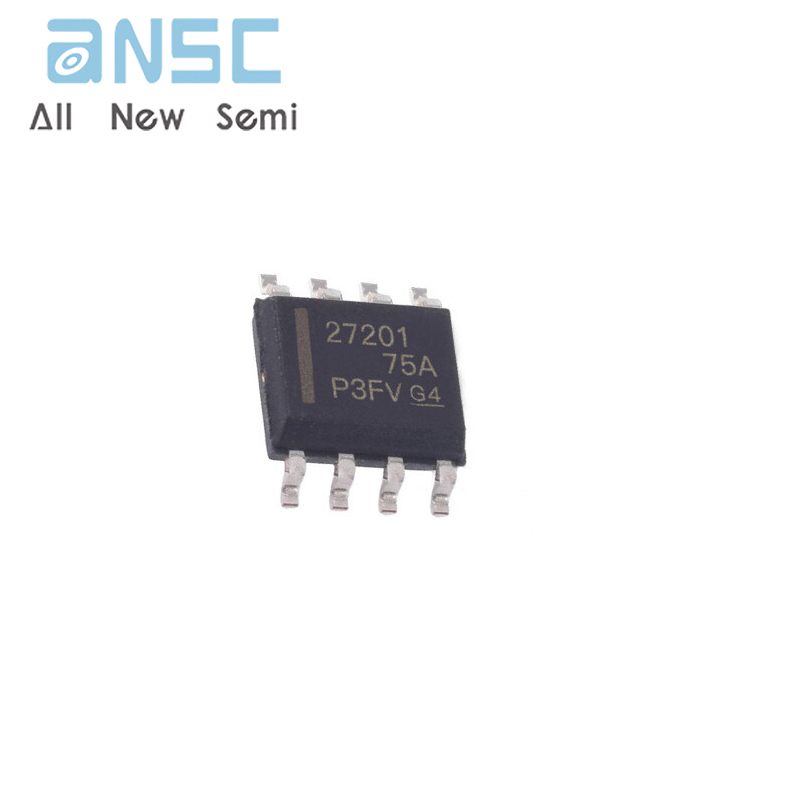

Product Photos
For more product information, please download the PDF
