Product Descriptions

The LM1881 Video sync separator extracts timing information including composite and vertical sync, burst/back porch timing, and odd/even field information from standard negative going sync NTSC, PAL* and SECAM video signals with amplitude from 0.5V to 2V p-p. The integrated circuit is also capable of providing sync separation for non-standard, faster horizontal rate video signals. The vertical output is produced on the rising edge of the first serration in the vertical sync period. A default vertical output is produced after a time delay if the rising edge mentioned above does not occur within the externally set delay period, such as might be the case for a non-standard video signal.

Product Features

n AC coupled composite input signal

n >10 kΩ input resistance

n <10 mA power supply drain current

n Composite sync and vertical outputs

n Odd/even field output

n Burst gate/back porch output

n Horizontal scan rates to 150 kHz

n Edge triggered vertical output

n Default triggered vertical output for non-standard video signal (video games-home computers)

n -40˚C to +85˚C operation (LM1881-X)

Product Specification

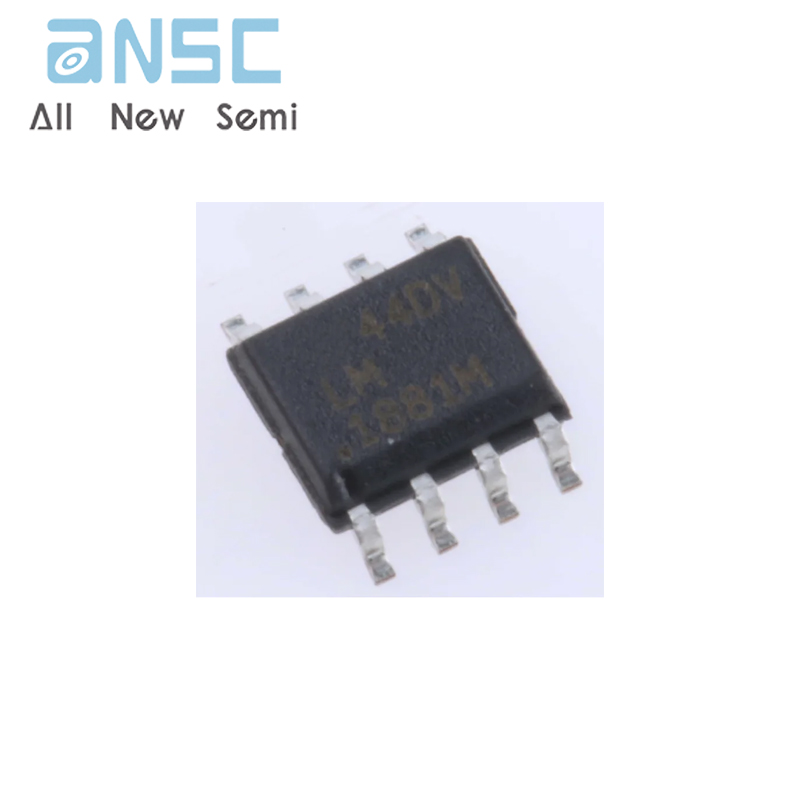

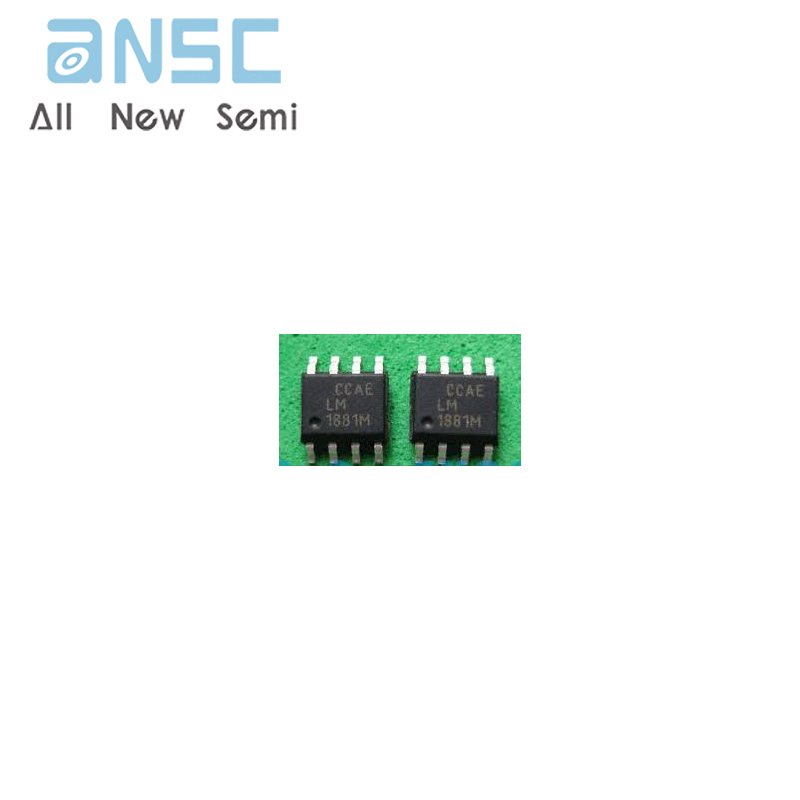

Product Photos

For more product information, please download the PDF
