Product Features

• 2.4 GHz transceiver

• -93 dBm sensitivity in Bluetooth® low energy mode

• 250 kbps, 1 Mbps, 2 Mbps supported data rates

• TX Power -20 to +4 dBm in 4 dB steps

• TX Power -30 dBm Whisper mode

• 13 mA peak RX, 10.5 mA peak TX (0 dBm)

• 9.7 mA peak RX, 8 mA peak TX (0 dBm) with DC/DC

• RSSI (1 dB resolution)

• ARM® Cortex™-M0 32 bit processor

• 275 μA/MHz running from flash memory

• 150 μA/MHz running from RAM

• Serial Wire Debug (SWD)

• S100 series SoftDevice ready

• Memory

• 256 kB or 128 kB embedded flash program memory

• 16 kB or 32 kB RAM

• On-air compatibility with nRF24L series

• Flexible Power Management

• Supply voltage range 1.8 V to 3.6 V

• 4.2 μs wake-up using 16 MHz RCOSC

• 0.6 μA at 3 V OFF mode

• 1.2 μA at 3 V in OFF mode + 1 region RAM retention

• 2.6 μA at 3 V ON mode, all blocks IDLE

• 8/9/10 bit ADC - 8 configurable channels

• 31 General Purpose I/O Pins

• One 32 bit and two 16 bit timers with counter mode

• SPI Master/Slave

• Low power comparator

• Temperature sensor

• Two-wire Master (I2C compatible)

• UART (CTS/RTS)

• CPU independent Programmable Peripheral Interconnect (PPI)

• Quadrature Decoder (QDEC)

• AES HW encryption

• Real Timer Counter (RTC)

Product Applications

• Computer peripherals and I/O devices

• Mouse

• Keyboard

• Multi-touch trackpad

• Interactive entertainment devices

• Remote control

• Gaming controller

• Beacons

• Personal Area Networks

• Health/fitness sensor and monitor devices

• Medical devices

• Key-fobs + wrist watches

• Remote control toys

Product Specification

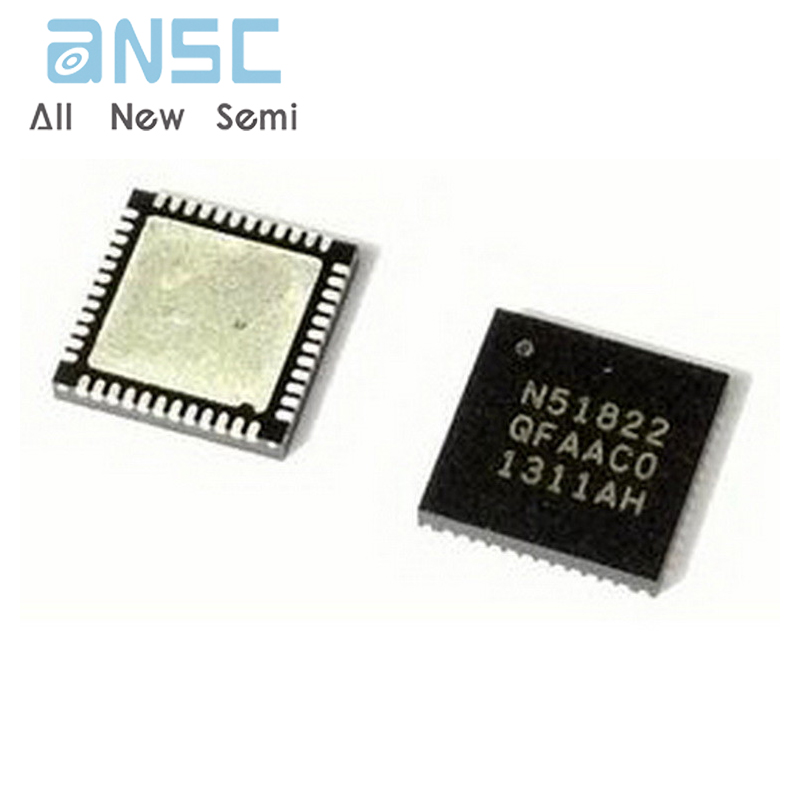

Product Photos

For more product information, please download the PDF
