Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F521DMQB |
| Ihs Manufacturer | Original |
| Package Description | DIP-20 |
| Additional Feature | CASCADABLE |
| Family | F/FAST |
| Length | 24.51 mm |
| Logic IC Type | IDENTITY COMPARATOR |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Polarity | INVERTED |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 32 mA |
| Propagation Delay (tpd) | 15 ns |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 Class B |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

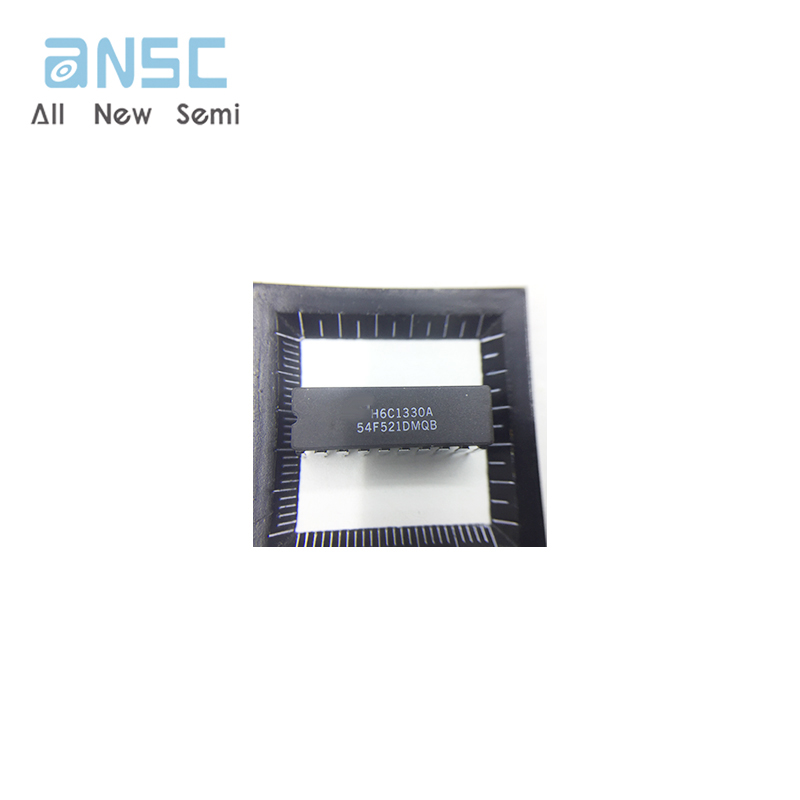

Product Photos

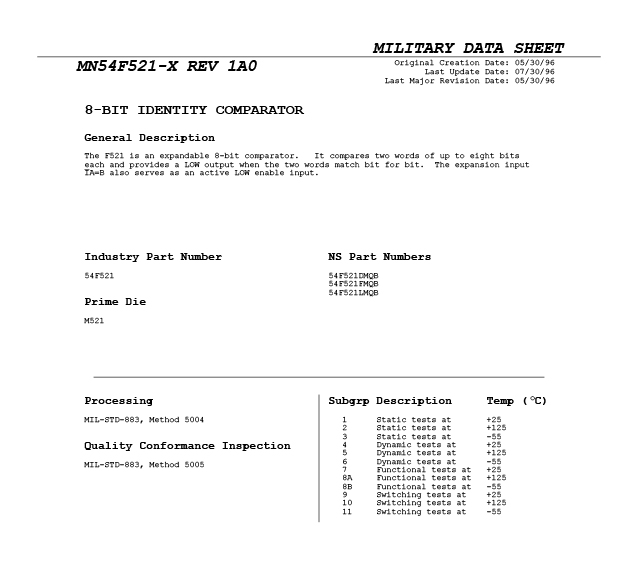

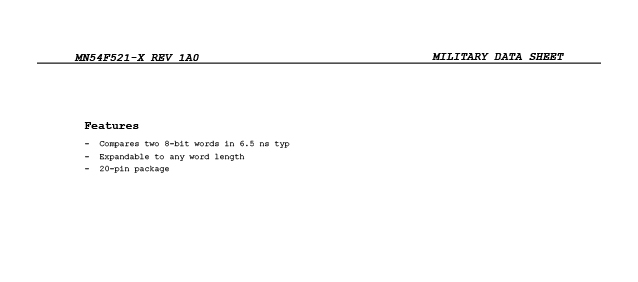

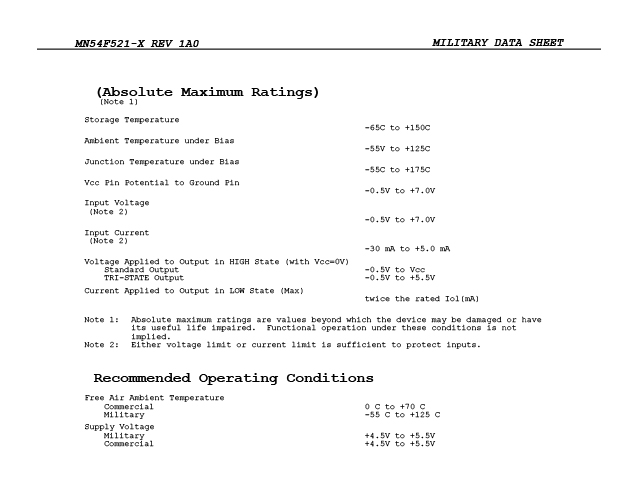

Product datasheet
For more information, please download
