Product Details
|
Product Description The 1N4148W-7-F is a high-reliability, surface-mount, single diode rectifier with a SILICON diode element material. This component is designed for use in a variety of applications where high reliability and low power consumption are crucial. The diode features a low capacitance of 2pF and a forward voltage of 1.25V, making it suitable for use in small signal applications. Product Features · High reliability with a high-reliability rating · Low capacitance of 2pF · Forward voltage of 1.25V · Operating temperature range of -65°C to 150°C · Peak non-repetitive surge current of 2A · Peak reflow temperature of 260°C · RoHS3 compliant Product Applications · Primary applications: Small signal rectification, power supply filtering, and voltage regulation · Secondary applications: Audio and video equipment, telecommunications, and medical devices |
Product Description
| Type | Description |
| ANSC PART# | ANSC -1N4148W-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction |
-55°C ~ 150°C |
| Base Product Number | 1N4148 |

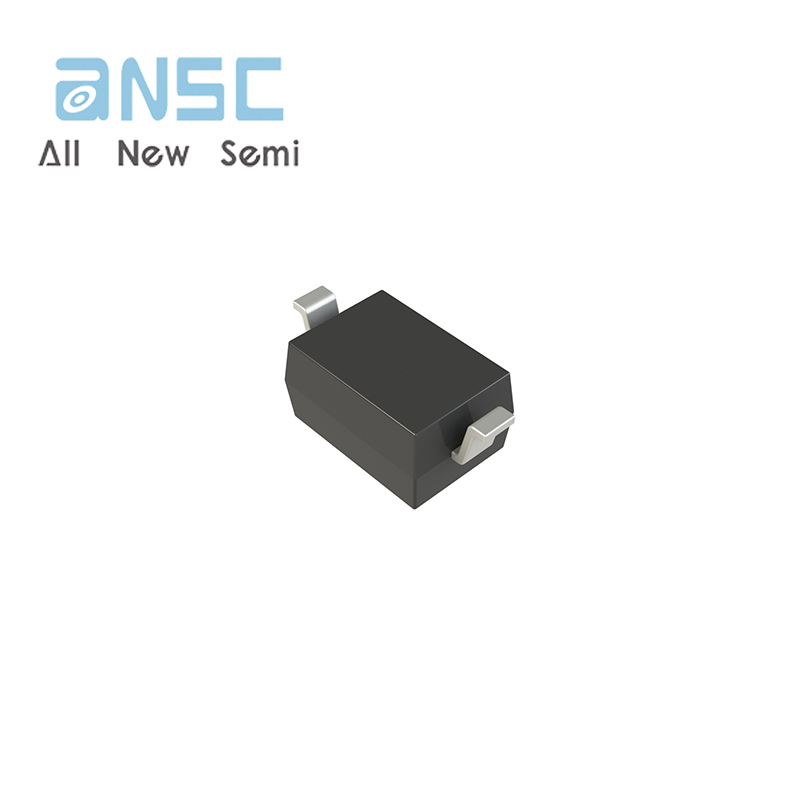

Product Photos

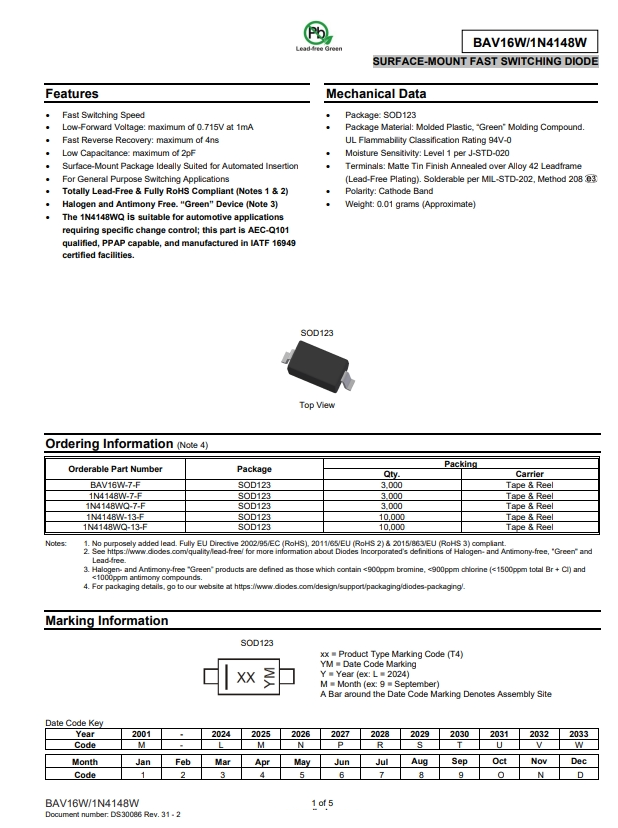

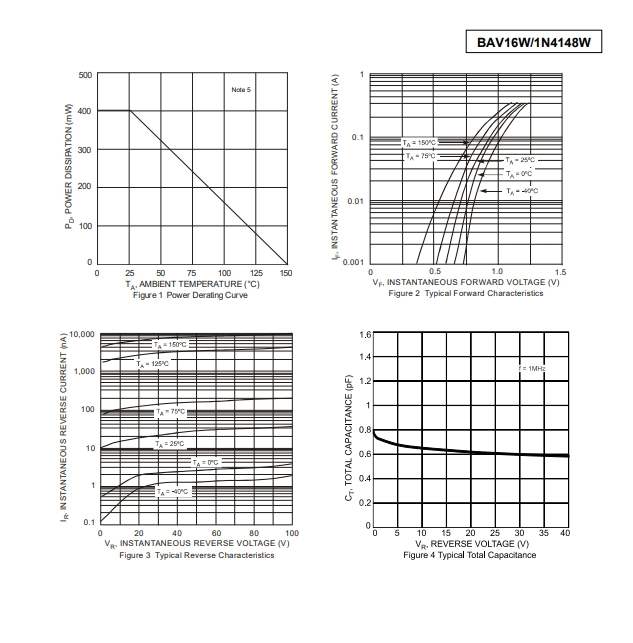

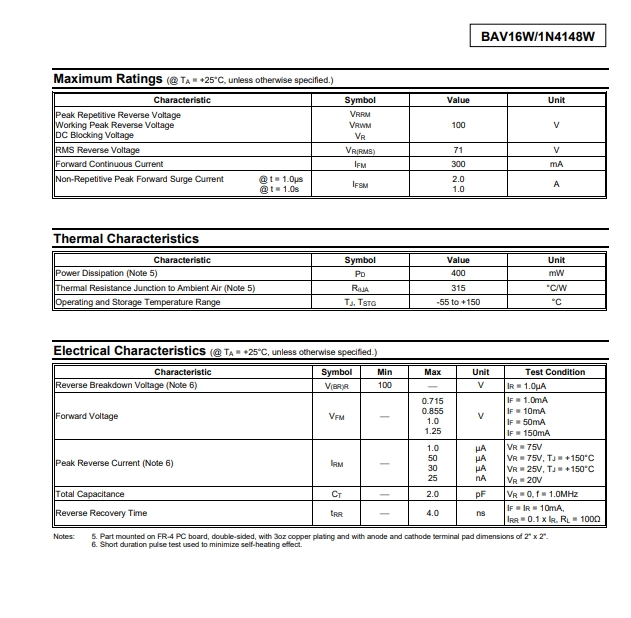

Product datasheet
For more information, please download
