Product Details
| Description/Applications These general purpose switching diodes are intended for low power switching applications such as RF duplexers, antenna switching matrices, digital phase shifters, and time multiplex filters. The 5082-3188 is optimized for VHF/UHF bandswitching. The RF resistance of a PIN diode is a function of the current flowing in the diode. These current controlled resistors are specified for use in control applications such as variable RF attenuators, automatic gain control circuits, RF modulators, electrically tuned filters, analog phase shifters, and RF limiters. Outline 15 diodes are available on tape and reel. The tape and reel specification is patterned after RS-296-D. Features • Low Harmonic Distortion • Large Dynamic Range • Low Series Resistance • Low Capacitance |
Product Description
| Type | Description |
| Part# | 5082-3080 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| RF Diodes | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Diode Type | PIN - Single |
| Voltage - Peak Reverse (Max) | 100V |
| Current - Max | 100 mA |
| Capacitance @ Vr, F | 0.4pF @ 50V, 1MHz |
| Resistance @ If, F | 2.5Ohm @ 100mA, 100MHz |
| Power Dissipation (Max) | 250 mW |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | - |
| Base Product Number | 1162263 |

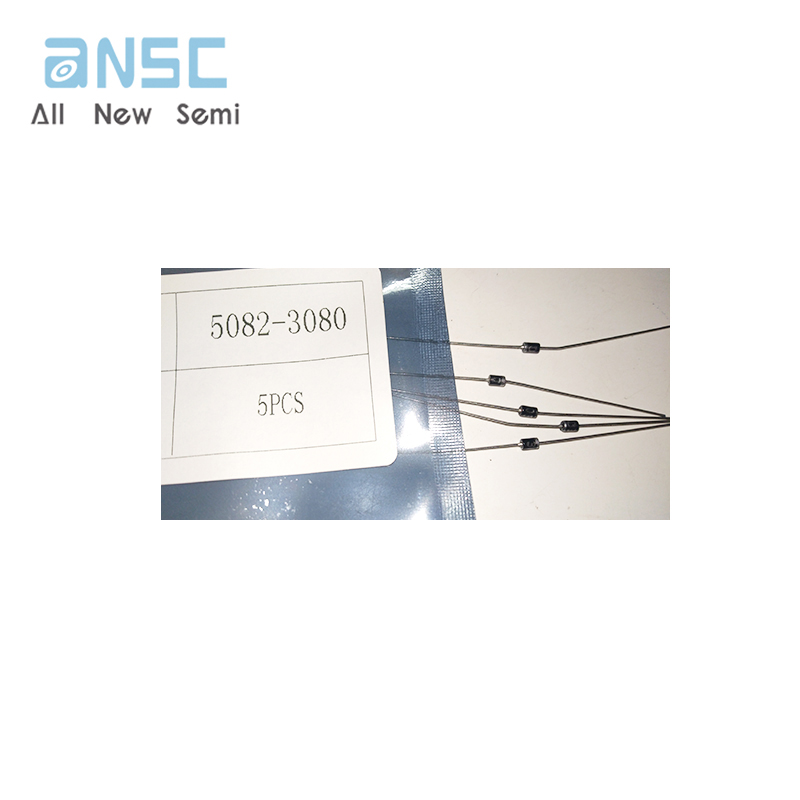

Product Photos

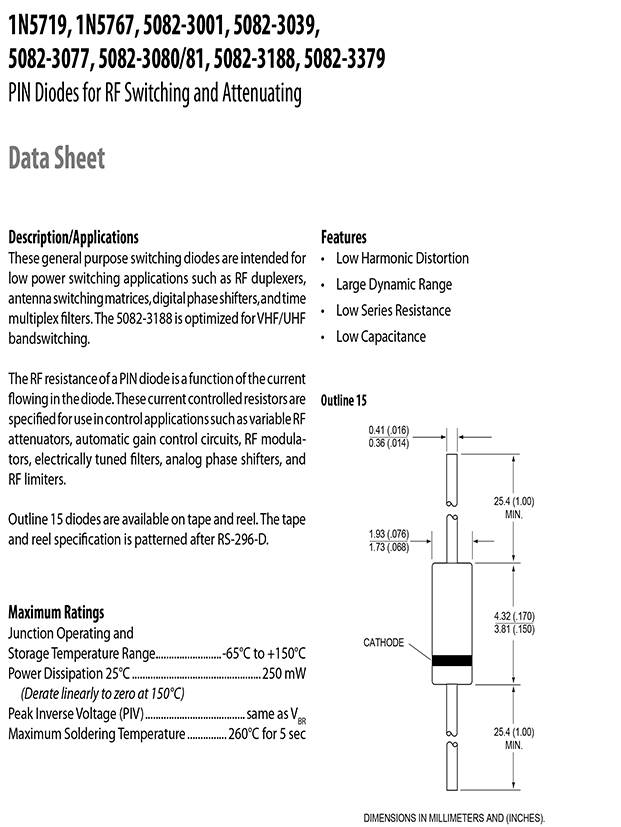

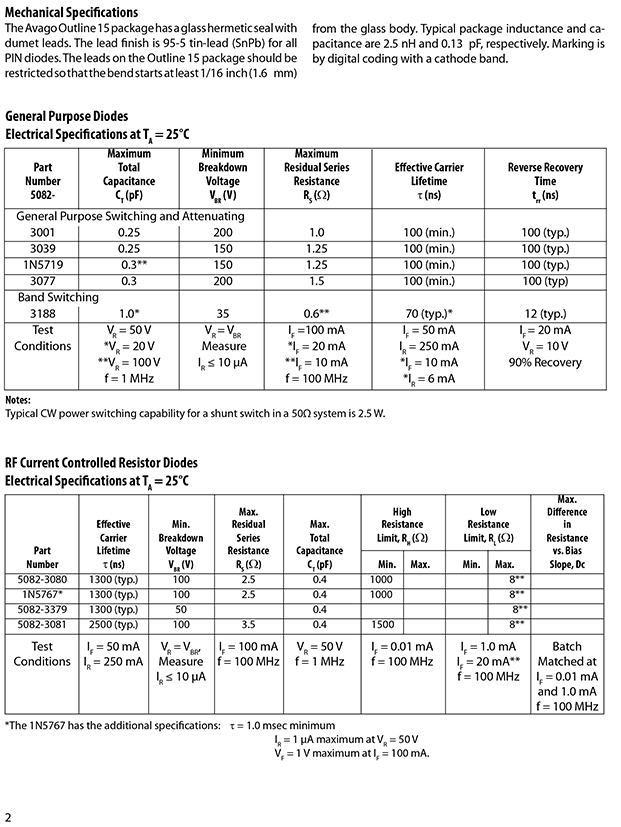

Product datasheet
For more information, please download
