Product Details
50-W, 48-V INPUT, 12-V OUTPUT, ISOLATED DC/DC CONVERTER
Product Description
| Type | Description |
| PART# | PTEA404120N2AD |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Original |
| Series | PTEA404120 (50W) |
| Packaging | Tray |
| Part Status | Not For New Designs |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 35V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 50 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.22" L x 0.90" W x 0.52" H (56.4mm x 22.9mm x 13.2mm) |
| Base Product Number | PTEA404120 |

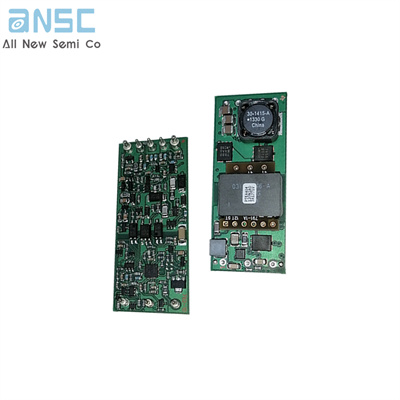

Actual image of the product
