Hot selling One-stop electronic component E70-433NW14S LoRa spread spectrum technology wireless transmission monitoring

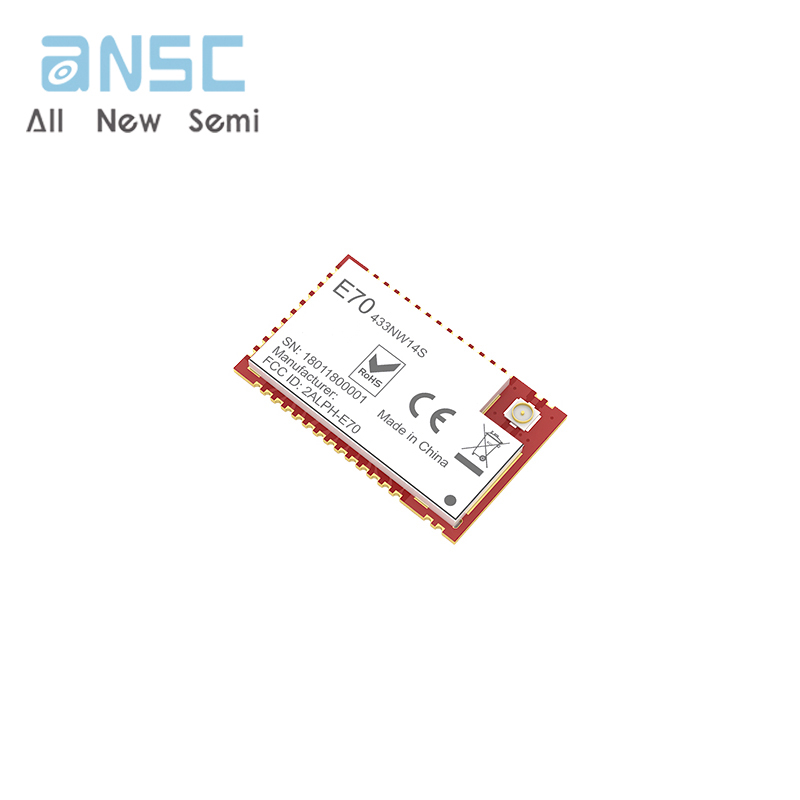

E70-433NW14S

Model:E70-433NW14S

Manufacturer:EBYTE

Package:module

详情

Product Descriptions


E70-433NW14S is the star network module, operating at 433MHz, based on originally imported TI CC1310 and 15.4-Stack protocol, with coordinator and terminal as a whole. The module features with long range and high-speed transmission modes.

Maximum 200 nodes can send data to one coordinator. Use industry-standard AT commands for operating configuration, which greatly simplifies user operations. With stable batch production, the module is suitable for various wireless communication

network applications.


E70-433NW14S is the first 433MHz wireless module which meets IEEE 802.15.4 in China and solves a series of problems caused by the traditional 433MHz module. Users will no longer spend more effort to deal with complex

network protocols, which greatly reduces the difficulty of customer development and shortens the user's development cycle. The protocol guarantees the stability and packet rate of the entire wireless communication system. E70-433NW14S strictly

follows design standards of FCC, CE, CCC and meets various RF certification requirements for exporting.


Product Features


 Communication distance tested is up to 2.5km

 Maximum transmission power of 25mW, software multi-level adjustable;

 Support the global license-free ISM 433MHz band;

 Support air date rate of 5kbps~50kbps;

 Support CSMA/CA, Carrier multi - channel interception technology which can avoid collision effectively

 Maximum 200 nodes, no need to deal with complicated protocol.  Adopting AES128 data encryption, Ensure the reliability of data packets.  Supports DSSS technology, like LoRa, better than GFSK.  Low power consumption for battery supplied applications;

 Can achieve up to 115200bps continuous frame unlimited-packet length transmission

 Support 2.2V~3.8V power supply, power supply over 3.3V can guarantee the best performance;

 Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

 IPEX access point, stamp hole is optional, facilitate user secondary development, facilitate integration.


Product Applications


 Home security alarm and remote keyless entry;

 Smart home and industrial sensors;

 Wireless alarm security system;

 Building automation solutions;

 Wireless industrial-grade remote control;

 Health care products;

 Advanced Meter Reading Architecture(AMI);

 Automotive industry applications.


Specifications


AttributeAttribute valueNotes
ANSM-Part#ANSM-E70-433NW14S
Working frequency431~446.5 MHzSupport ISM band
Transmitting power14 dBm-
Receiving sensitivity-110 dBmAir data rate is 5kbps
Air data rate5k~50kbpsControlled via user’s programming
Test distance2500mTest condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 5kbps
Size16 * 26 mm-
Antenna typeIPEX / Stamp hole50 ohm impedance
Communication interfaceUART-
PackageSMD-
Buffer512 byteA single packet may not exceed 128 bytes
Communication level (VDC)2.5~3.6
Power supply voltage (V DC)2.2~3.8
Emission current (mA)25~30
Received current (mA)7~9


Actual product photos


E70-433NW14S


Product Data Book:



For more product information, please download the PDF
