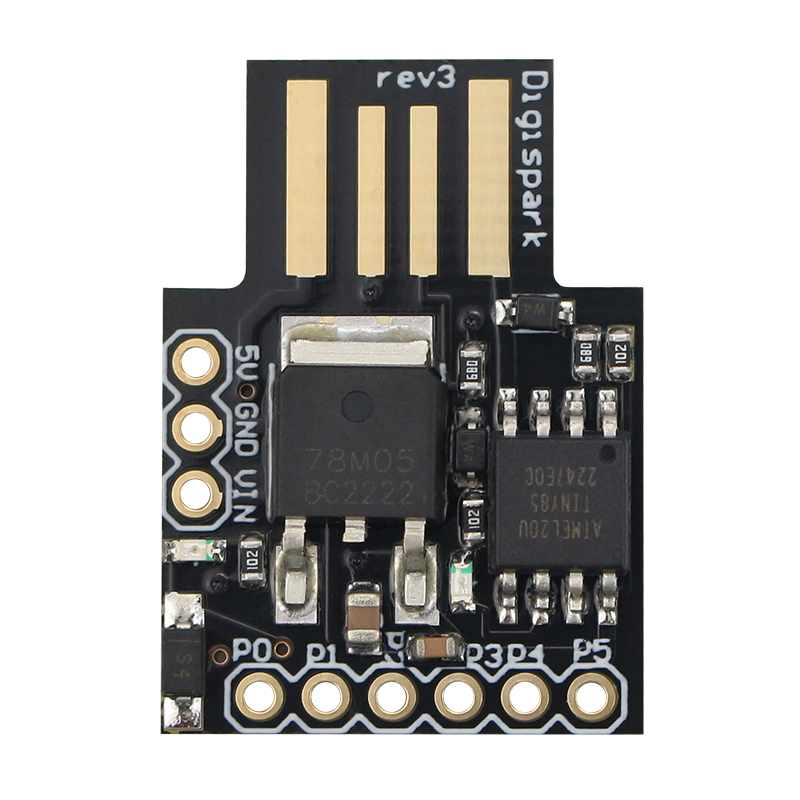

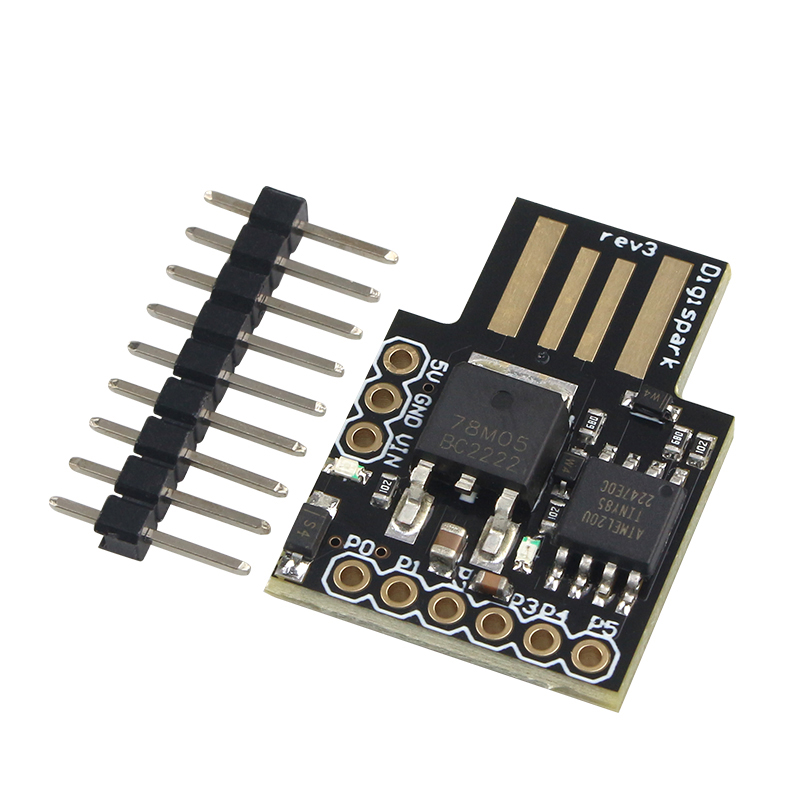

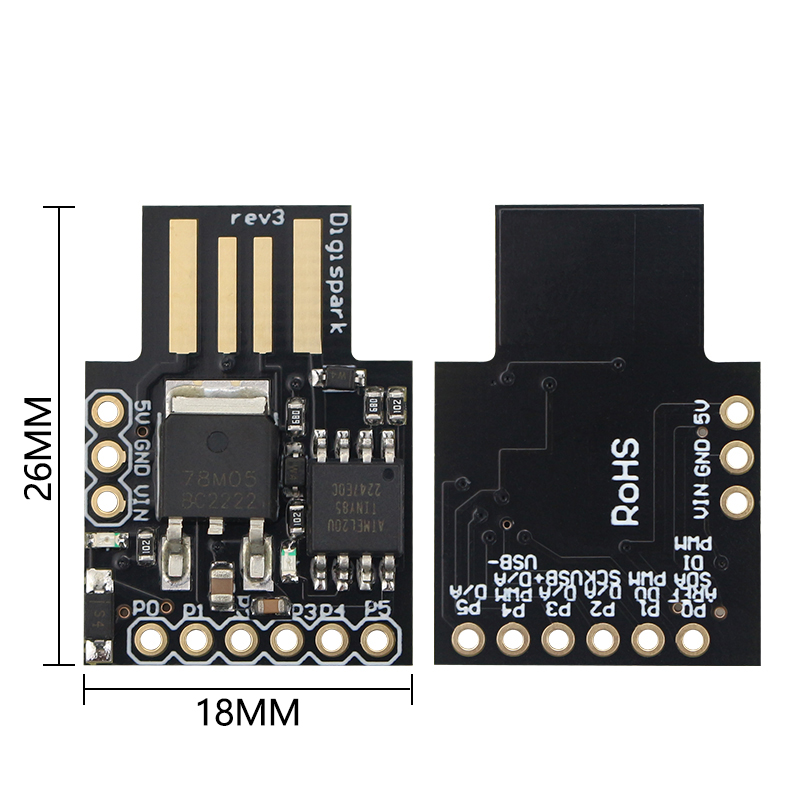

Spot Quality Assurance ATTINY85 Digispark Kickstarter Micro USB Development Board

Product Descriptions：

http://pan.baidu.com/share/link?shareid=2984232046&uk=2302102993

The interfaces provided by the universal development motherboard are:

Video demonstration: http://v.youku.com/v_show/id_XNTc2NTIyMDg0.html

1. Supports Arduino IDE 1.0+(OSX/Win/Linux)

2. Can be powered by an additional power supply via USB or 5V or 7-35V (automatic matching)

3. There is a 500ma 5V regulator on the motherboard

4. USB embedding (serial port debugging)

5.6 I/O Pins (2 to support USB)

6.8k Flash Memory (about 6k after bootloader)

7. I2C and SPI (vis USI)

8. PWM on 3 pins (more possible with Software PWM)

9. ADC on 4 pins

10. Power LED indicator and Test/Status LED (at Pin0)

The Specs:

• Support for the IDE 1.0+ (OSX/Win/Linux)

• Power via USB or External Source - 5v or 7-35v (automatic selection)

• On-board 500ma 5V Regulator

• Built-in USB (and serial debugging)

• 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

• 8k Flash Memory (about 6k after bootloader)

• I2C and SPI (vis USI)

• PWM on 3 pins (more possible with Software PWM)

• ADC on 4 pins

• Power LED and Test/Status LED (on Pin0)

•
