Spot ATTINY85 Digispark Kickstarter Mini USB Development Board Compatible with UNO R3 Quality Online

Black board

Model:Black board

Manufacturer:ANSC/OEM

Package:module

详情

Spot ATTINY85 Digispark Kickstarter Mini USB Development Board Compatible with UNO R3 Quality Online


Product Descriptions:


Digispark USB Development Board


The Digispark is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much.

The Digispark is shipped fully assembled except for the two included and easy to solder headers.

Here are the specs:

Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
On-board 500ma 5V Regulator
Built-in USB
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6k after bootloader)
I2C and SPI (vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/Status LED

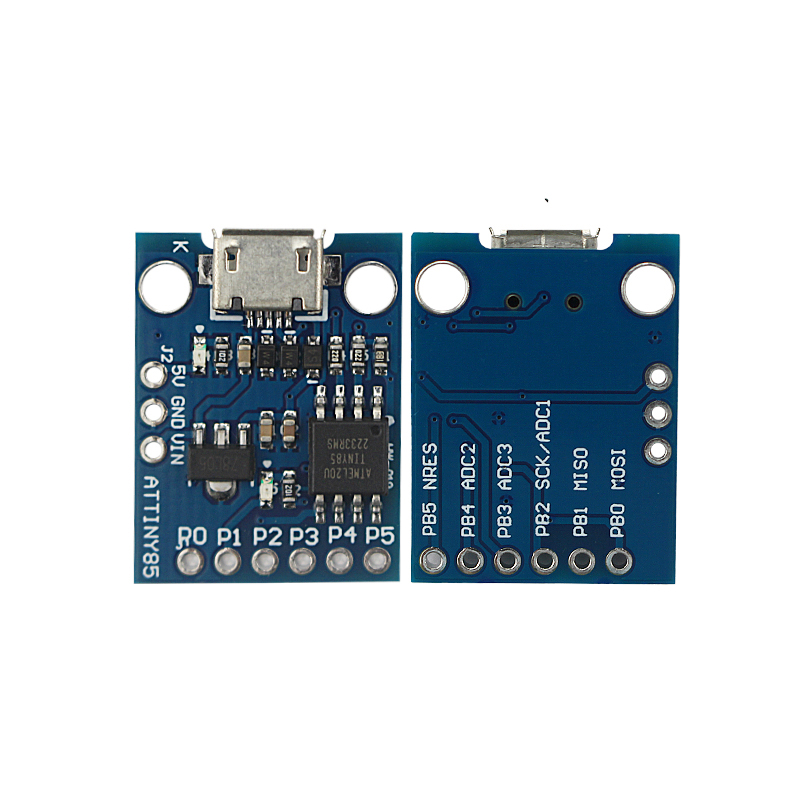

SKU-01-蓝色板

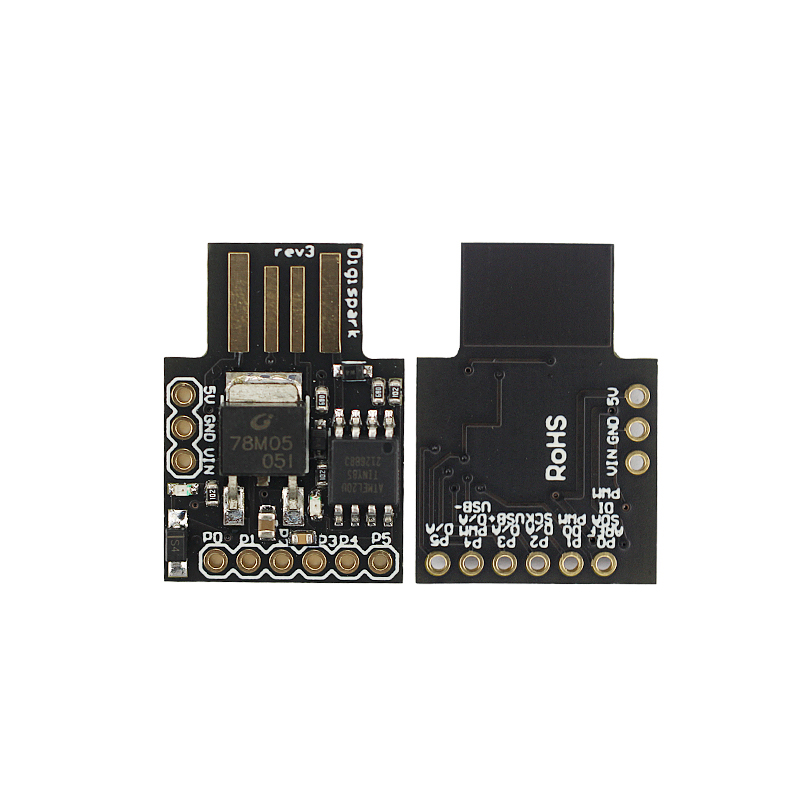

SKU-02-黑色板

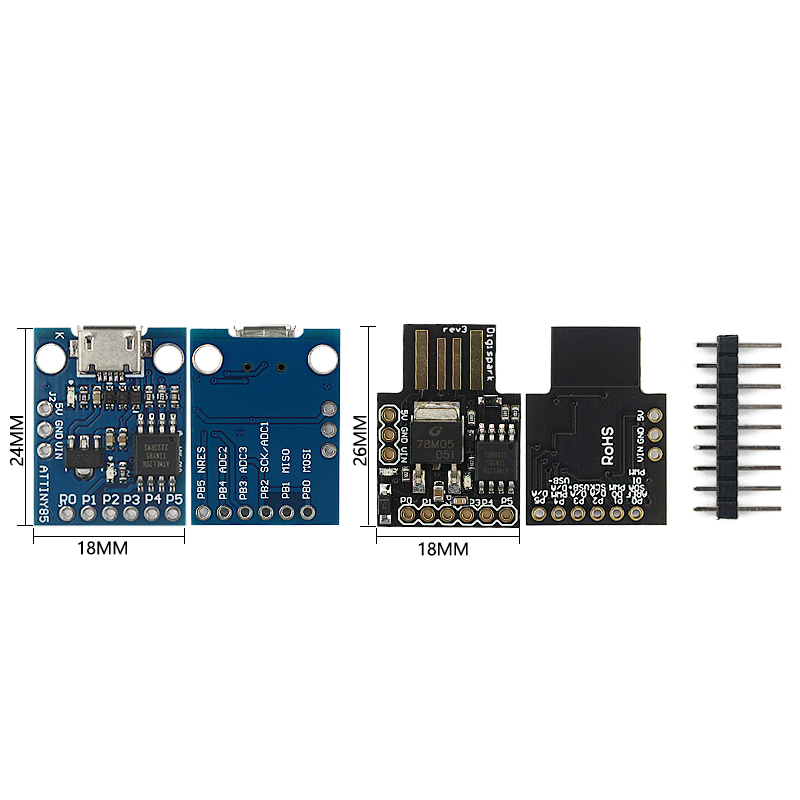

主图-00

主图-03
