New tracking module obstacle avoidance module tracking sensor TCRT5000 infrared reflection sensor quality assurance

Product Descriptions：

Purpose:

1. Pulse data sampling of electric meter

2. Fax machine shredder paper detection

3. Obstacle detection

4. Black and white line detection

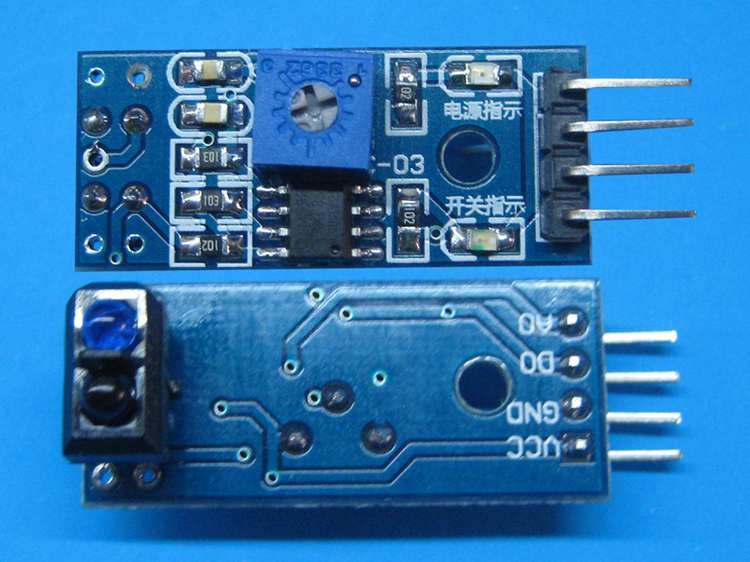

Module features:

1. Using TCRT5000 infrared reflection sensor

2. Detection distance: 1mm~8mm applicable, focal distance is 2.5mm

3. The comparator output has a clean signal, good waveform, and strong driving capability, exceeding 15mA.

4. Equipped with multi turn adjustable precision potentiometer to adjust sensitivity

5. Working voltage 3.3V-5V

6. Output format: Digital switch output (0 and 1)

7. Equipped with fixed bolt holes for easy installation

8. Small PCB size: 3.2cm x 1.4cm

9. Using a wide voltage LM393 comparator

Module Function Introduction:

The infrared emitting diode of TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not strong enough, the phototransistor remains in the off state. At this time, the output terminal of the module is at a low level, indicating that the diode is always in the off state; When the detected object appears within the detection range, the infrared rays are reflected back and the intensity is strong enough, causing the photosensitive transistor to saturate. At this time, the output terminal of the module is at a high level, indicating that the diode is lit up.

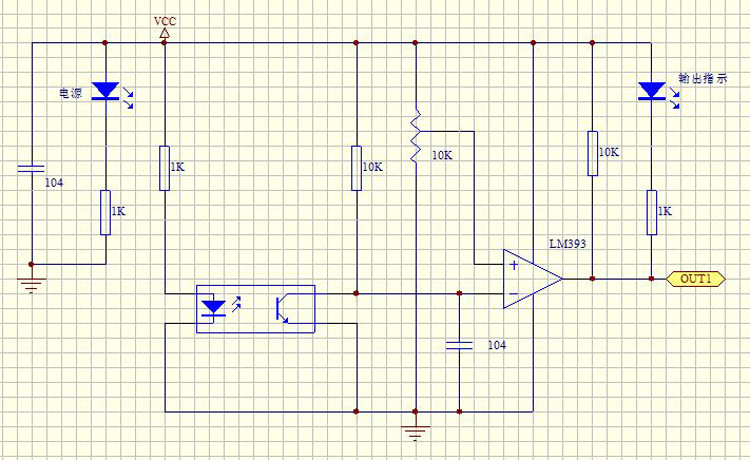

Circuit diagram
