Spot GY-91 MPU9250+BMP280 10DOF Acceleration Gyroscope Compass Nine Axis Sensor Module Quality Assurance

Product Descriptions：

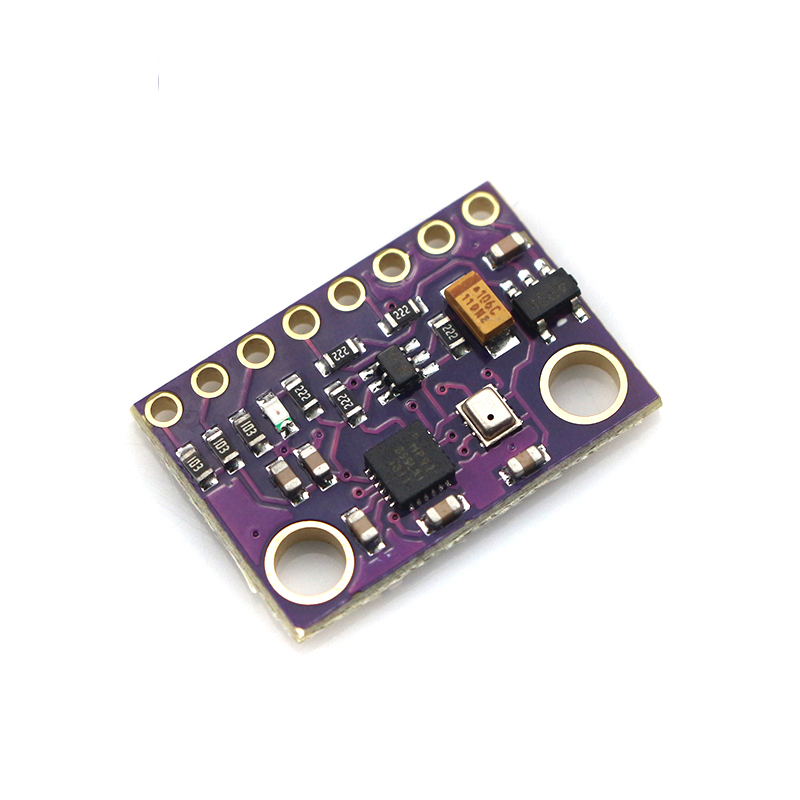

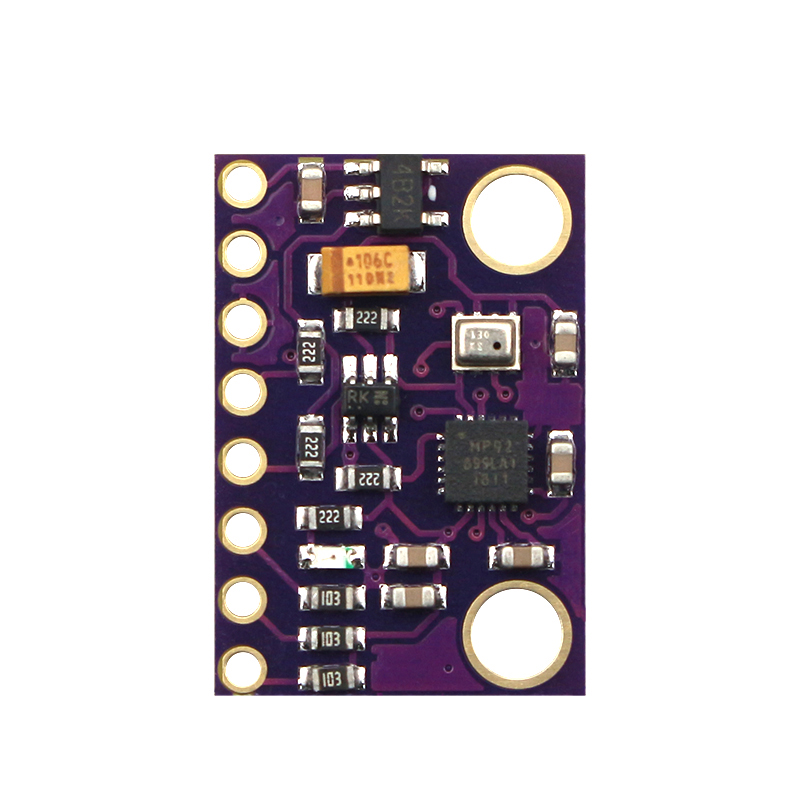

MPU-9250+BMP280 module

(Three axis gyroscope+Three axis acceleration+Three axis magnetic field+Air pressure)

Module model: GY-91

Using chips: MPU-9250+BMP280

Power supply: 3-5V (internal low voltage differential stabilization)

Communication method: Standard IIC/SPI communication protocol

The chip is equipped with a 16 bit AD converter for 16 bit data output

Gyroscope range: ± 250, 500, 1000, 2000 °/s

Acceleration range: ± 2 ± 4 ± 8 ± 16g

Magnetic field range: ± 4800uT

Pressure range: 300-1100hPa

Adopting gold-plated PCB and machine soldering process to ensure quality

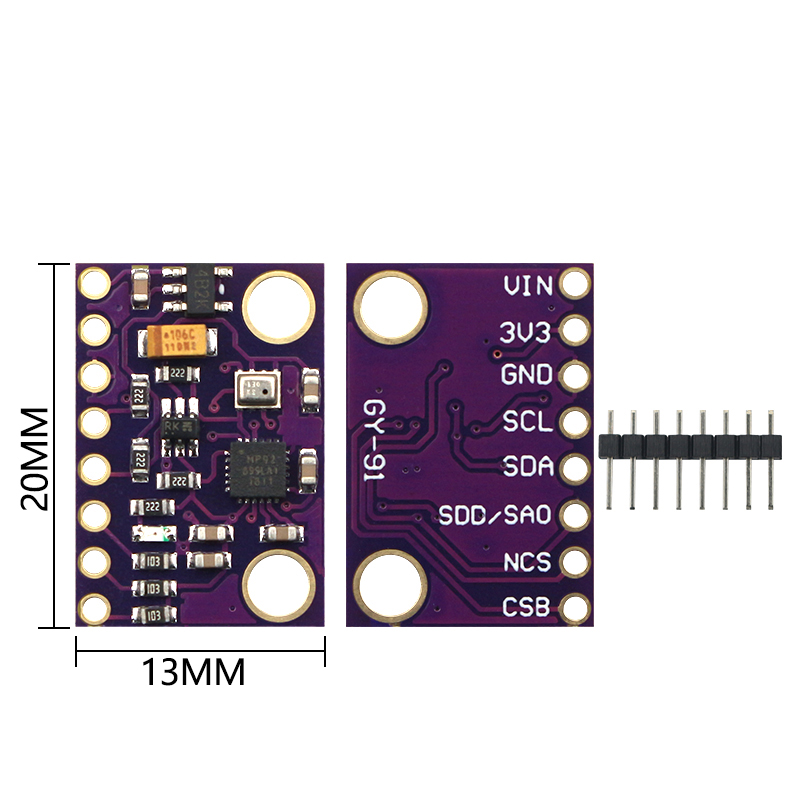

Pin spacing 2.54mm

Module size 14.3mm * 25mm
