Spot dual axis button joystick PS2 game joystick control lever sensor JoyStick electronic building block quality assurance

Product Descriptions：

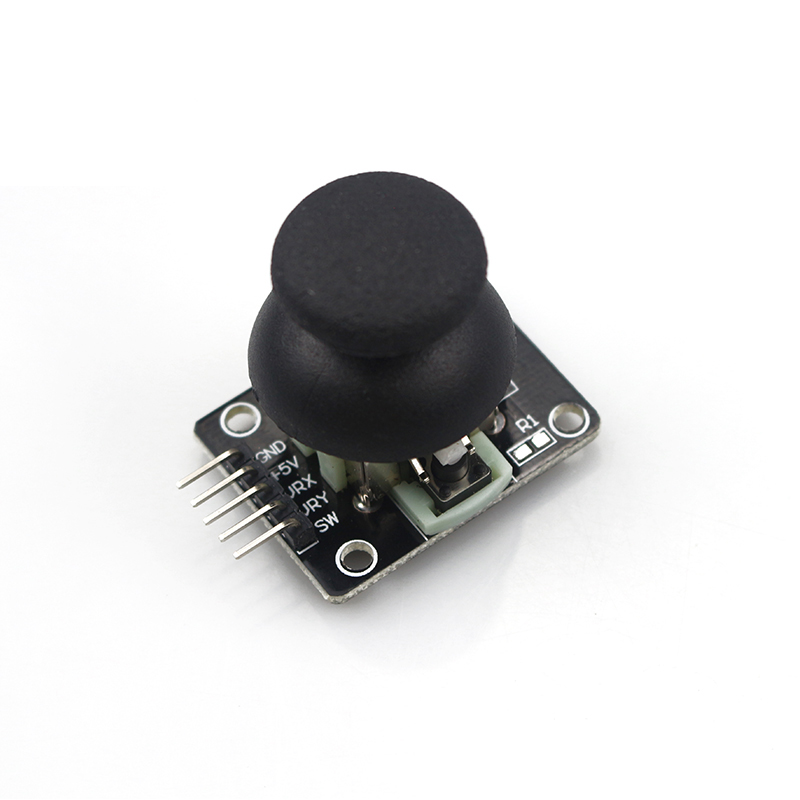

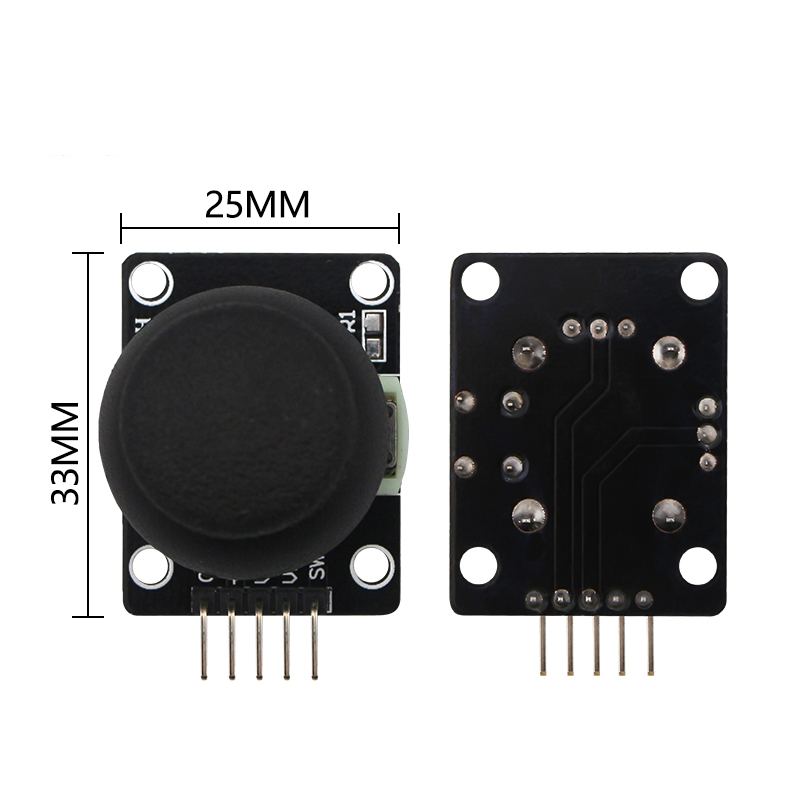

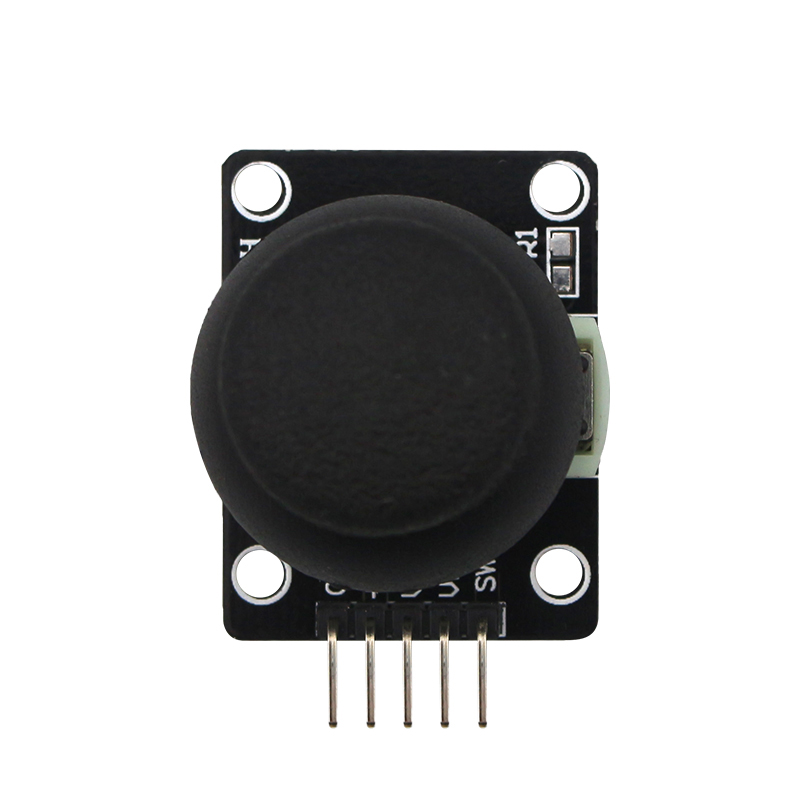

PS2 joystick game joystick module electronic building block standard interface and 2.54mm pin interface lead out.

The cross joystick is a bidirectional 10K resistor, and the resistance of the tap varies with the direction of the joystick. This module is powered by 5V. In its original state, the read voltage of X and Y is around 2.5V. When pressed in the direction of the arrow, the read voltage value increases and reaches 5V; Press the arrow in the opposite direction to read the voltage value, which decreases to 0V.
