Original stock GP2Y1051AU0F PM2.5 dust sensor 0 peripheral circuit 5V serial port

Product Descriptions：

Sharp GP2Y1010AU0F

Additional driving signals need to be provided to the sensor.

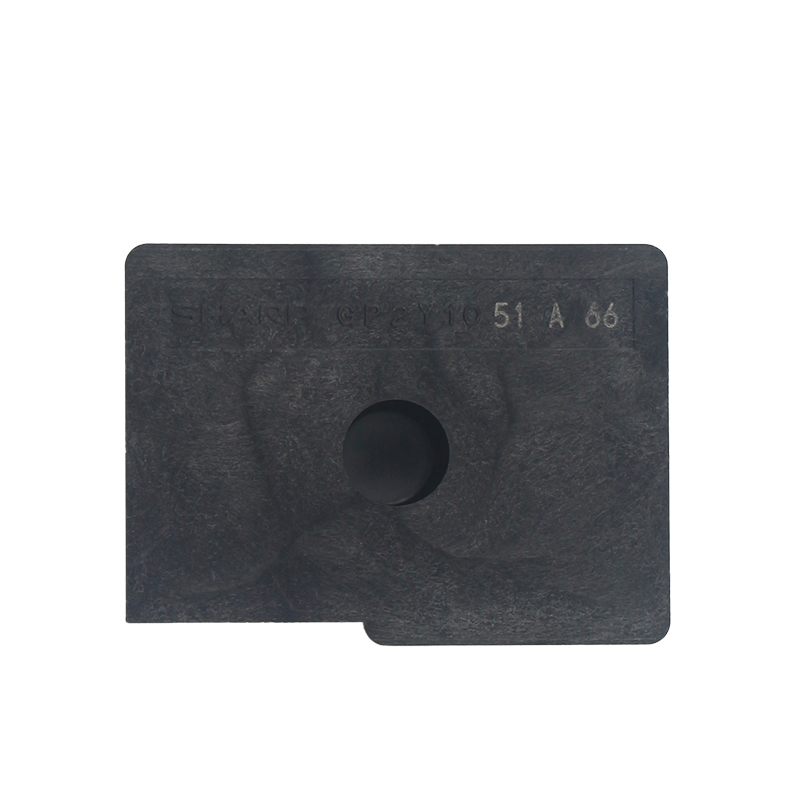

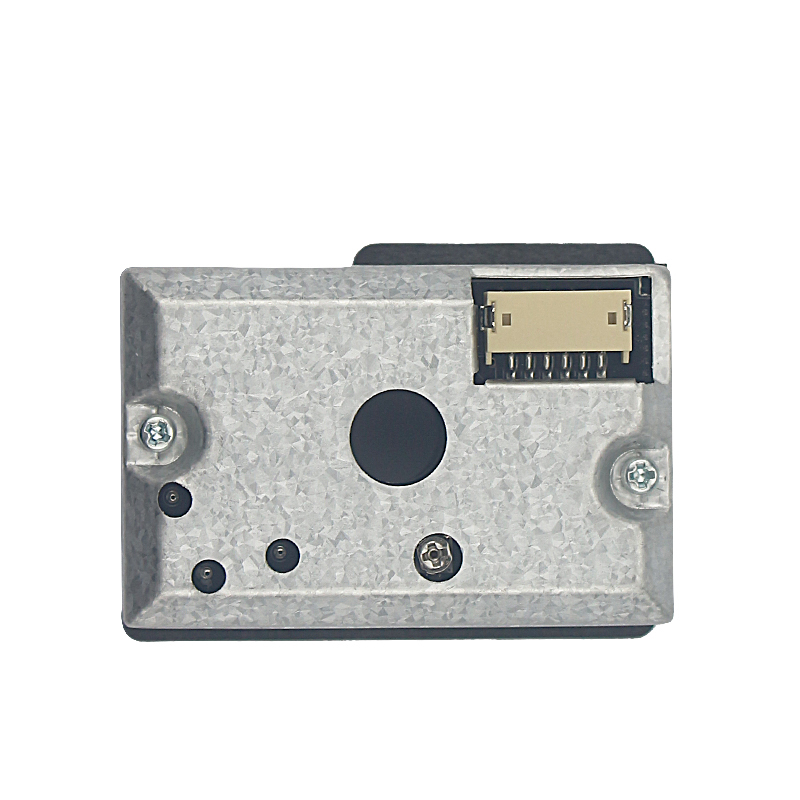

Sharp second-generation GP2Y1051AU0F

No need to provide a driving signal to the sensor, just add 5V DC power.

Sharp's second-generation upgraded version from Japan has high sensitivity and good stability!

Power supply voltage: DC 4.8V-5.2V

Current consumption: 20mA

Sensitivity: 0.35V/(0.1mg/m3)

Working temperature: -10~65 ℃

Storage temperature: -20~80 ℃

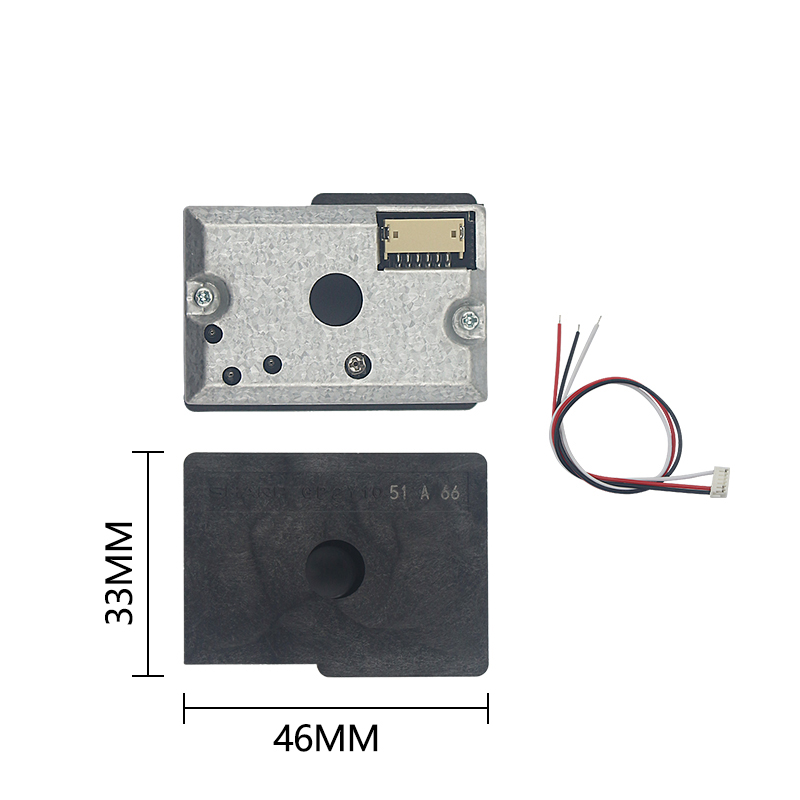

Size: 46mm × 30mm × 17.6mm

Line length: 20cm
