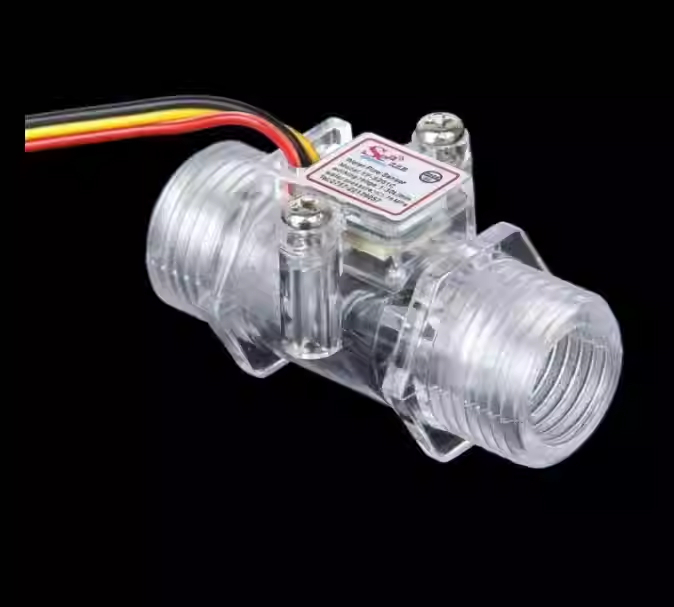

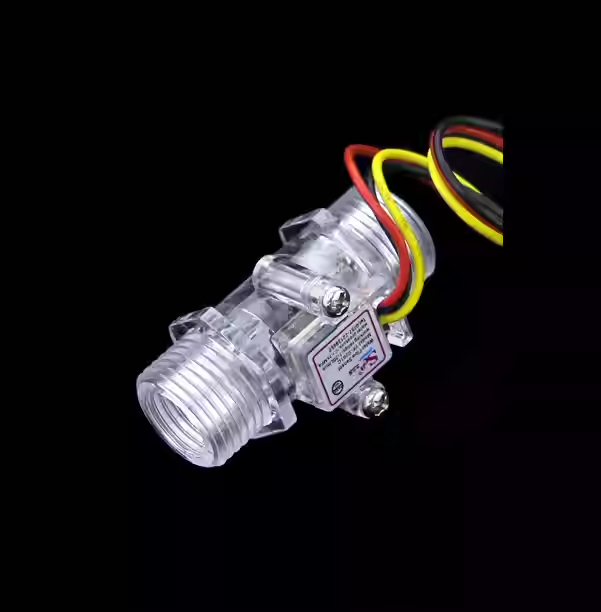

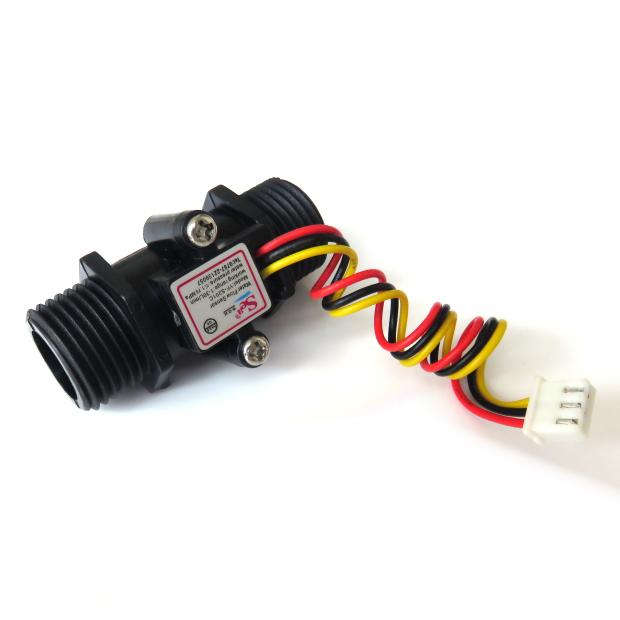

Original spot transparent flowmeter YF-201C water flow sensor turbine flowmeter 4-point flow sensor

Product Descriptions：

Wiring method:

Red IN connected to positive pole

Yellow OUT signal output line

Connect black GND to negative pole

Parameter

1. The appearance product identification is clear, accurate and meets the requirements

2. Water pressure resistance>1.75MPa

3. Operating voltage range DC5-15V

4. Insulation resistance>100M Ω

5 Accuracy (within 1-30L/MIN) ± 10%

6 Flow Pulse Characteristics (5 * Q) Q=L/Min ± 3%

7 output pulse high level>DC 4.7V (input voltage DC 5V)

8 output pulse low level

9 output pulse duty cycle 50% ± 10%
