Product Parameters

Product model: MIFARE RC522

Sleep current:< 80UA

Peak current:< 30MA

Working frequency: 13.56MHz

Reading distance: 0~45MM

Interface: UART TTL

Baud rate: 115200

Data transmission rate: maximum 10MBIT/S

Size: 50MM * 50MM

Environmental working temperature: -20~80 degrees Celsius

Storage temperature: -40~85 degrees Celsius

Humidity: Relative humidity 5% -95%

Protocol: Compliant with ISO14443A standard, supports MIFAREL S50 S70

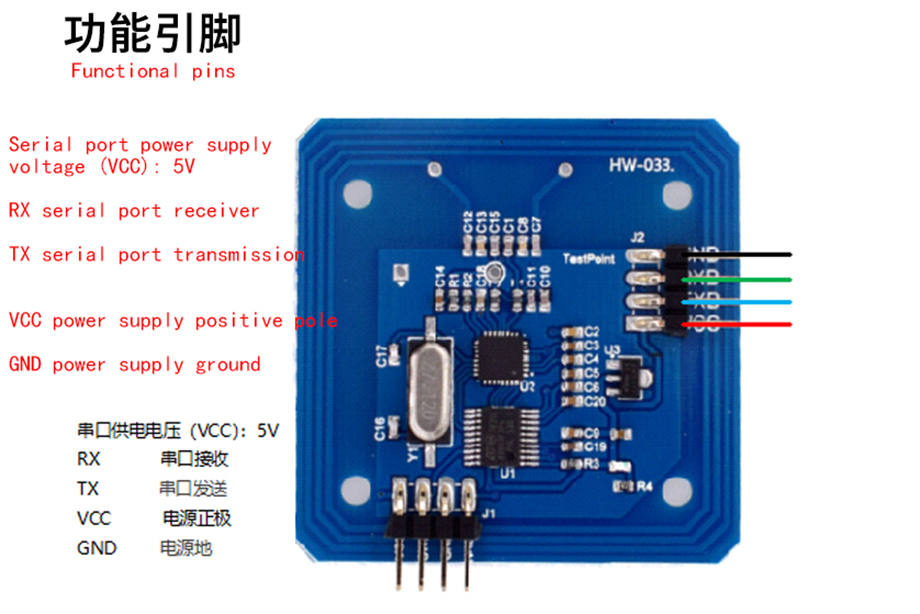

Product Instructions

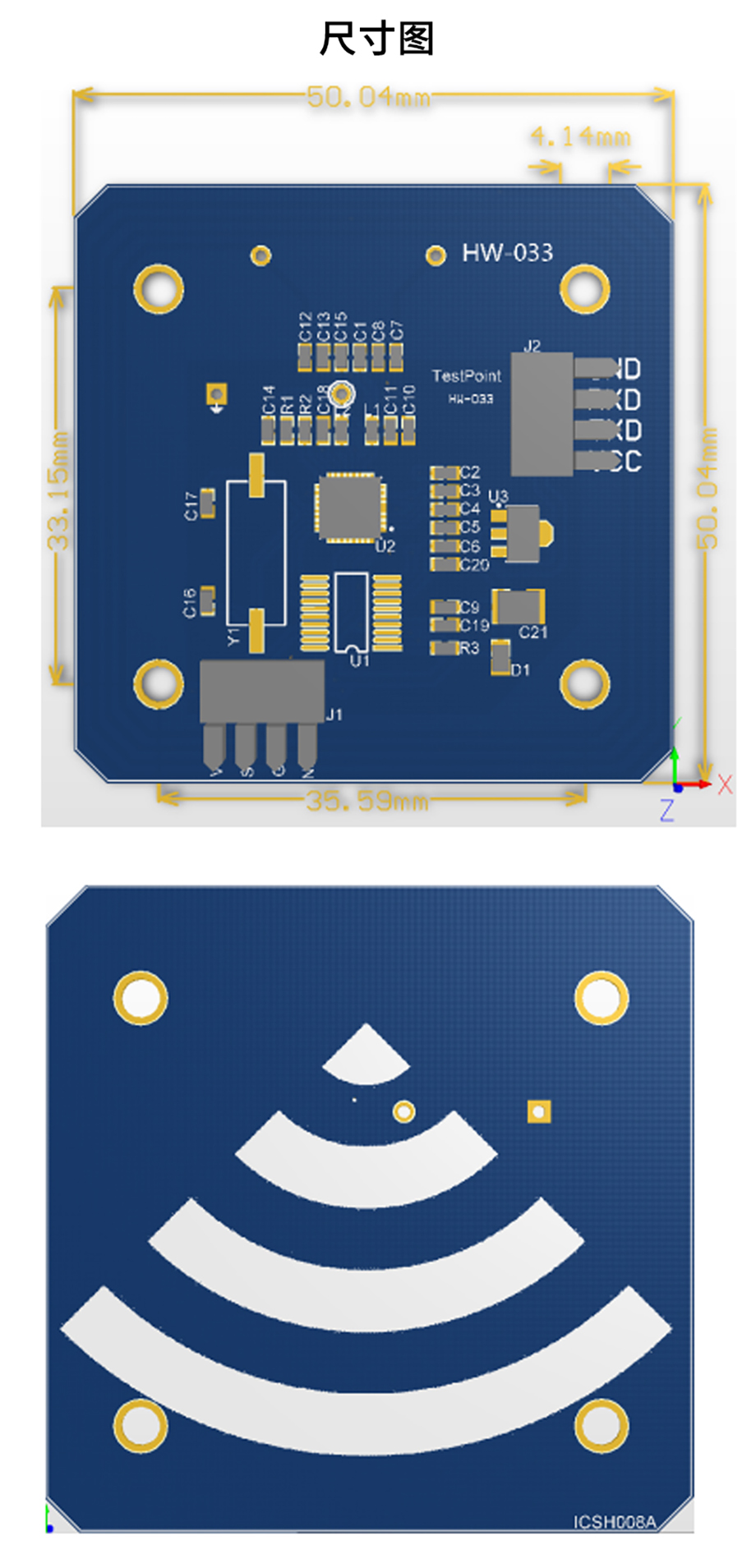

Product Size

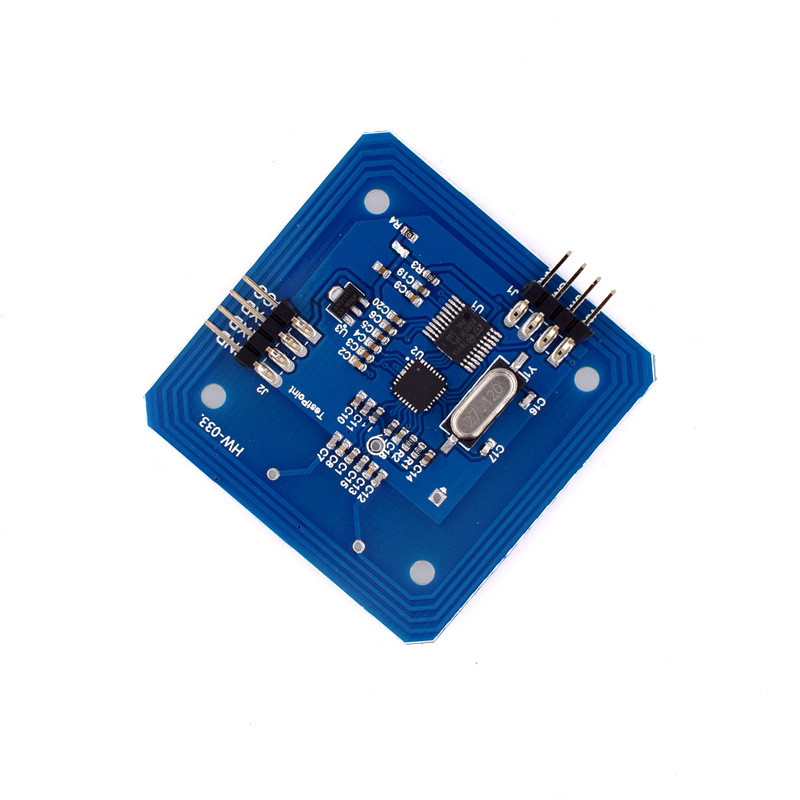

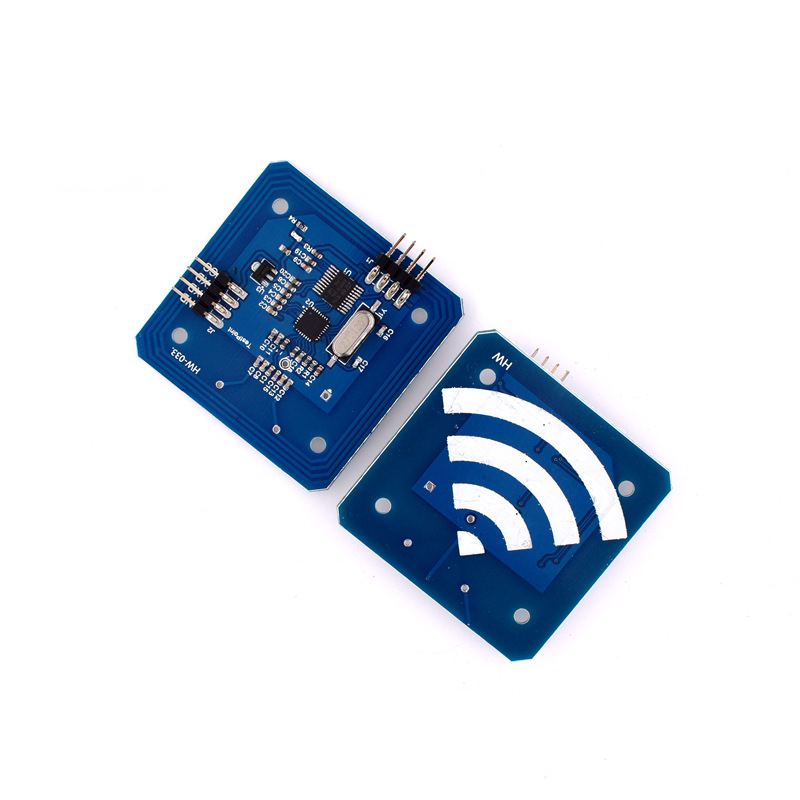

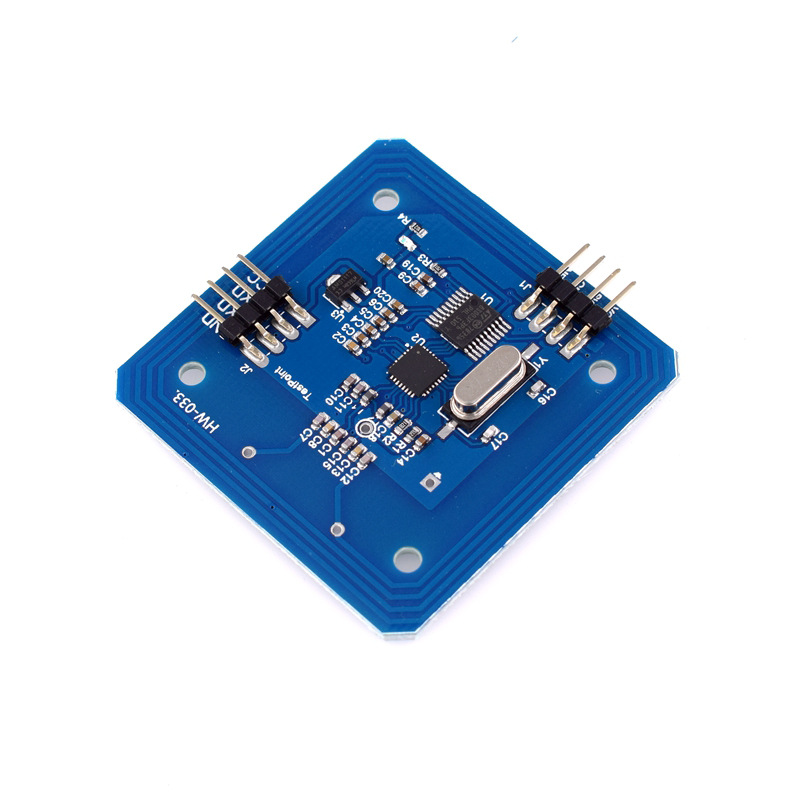

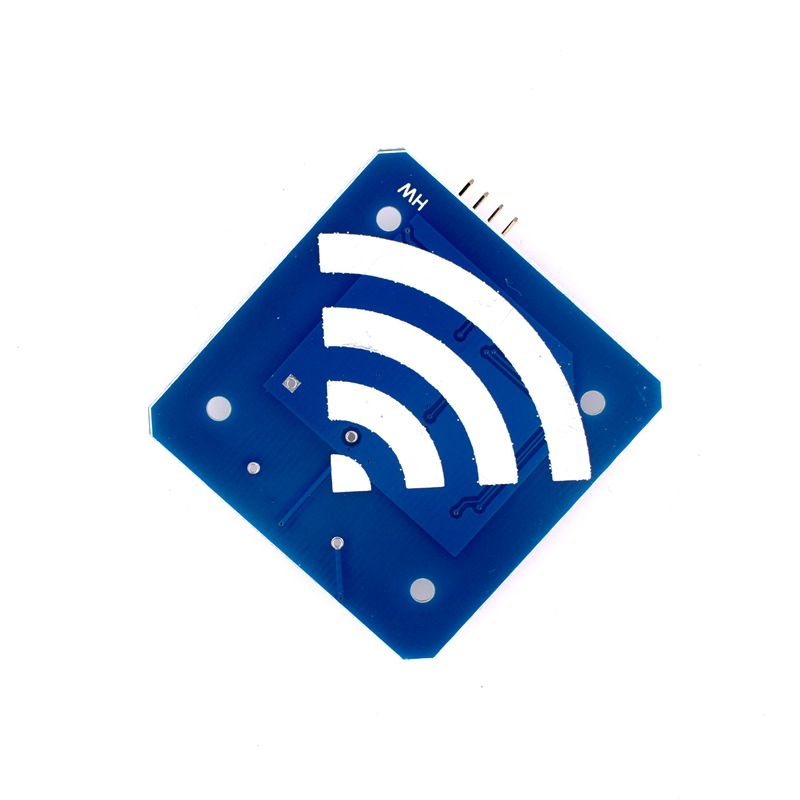

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
