Product Parameters
Based on ESP8266 WIFI chip

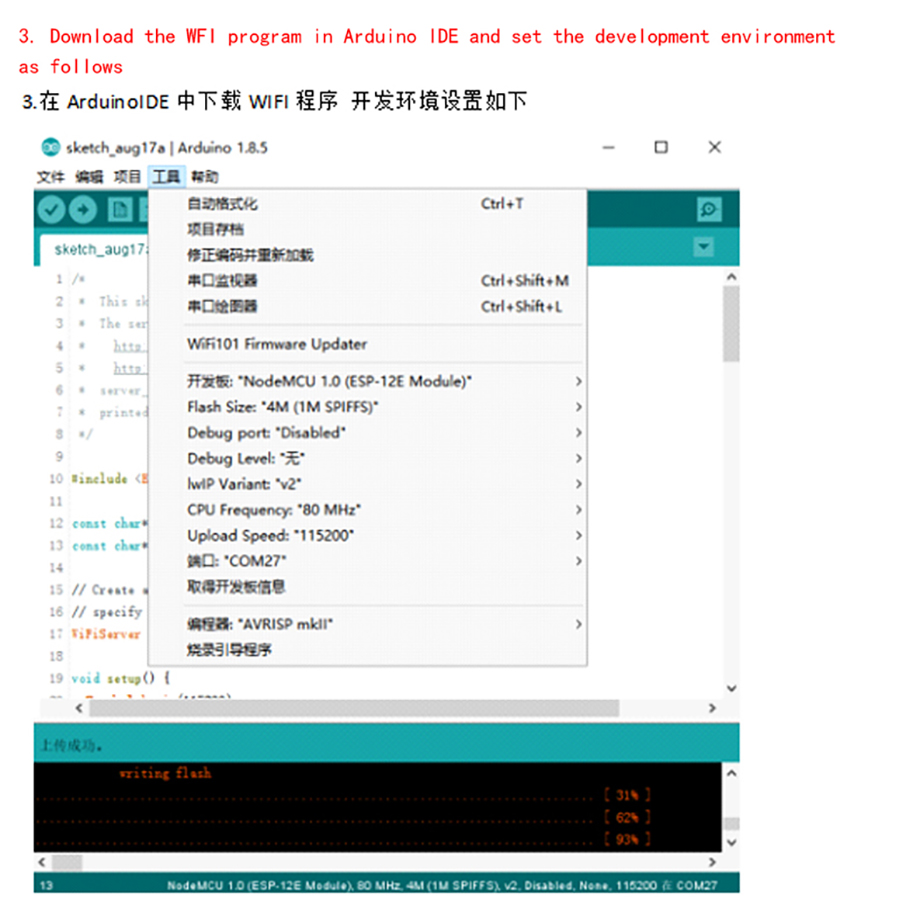

Compatible with ARDUINO programming using ARDUINOIDE
ESP burning tool can be used for burning
11 * 1/O pin
1 * ADC pin
1 * RST button
1 * FLASH button

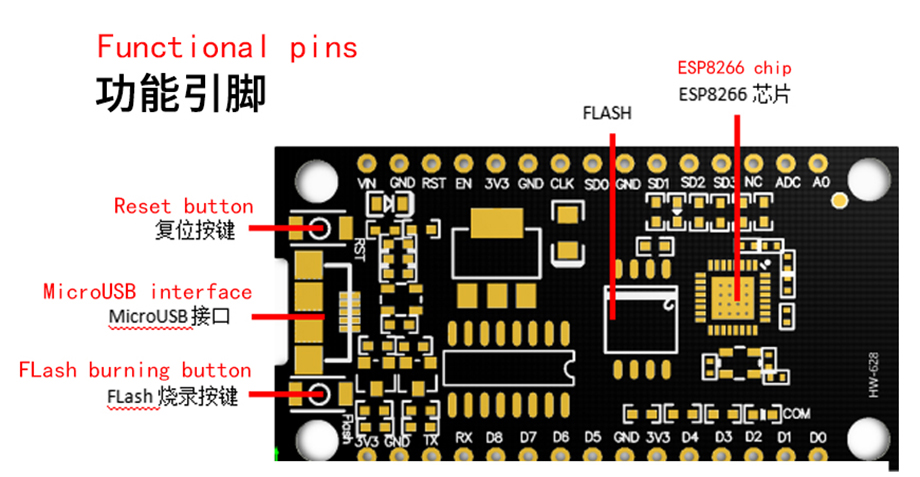

Product Functions
| 引脚 Pin | 说明 Explain | IC内部引脚 Internal pins of IC |
| D0 | GPIO16 | |
| D1 | GPI05 | |
| D2 | GPI04 | |
| D3 | GPI00 | |
| D4 | GPI02 | |
| D5 | GP1O14 | |
| D6 | GPI012 | |
| D7 | GPI013 | |
| D8 | GPIO15 | |
| A0 | ADC | |
| ADC | RESERVED | |
| SD3 | GPI010 | |
| SD2 | GPI09 | |
| SD1 | MOSI | |
| SD0 | MISO | |
| NC | CS0 | |
| CLK | SCLK | |
| EN | 使能端口 高电平有效 Enable port high level to be effective | EN |
| RST | 复位 Reset | RST |
| RX | 串口接收 Serial port reception | RXD |
| TX | 串口发送 Serial port sending | TXD |
| 3.3V | 3.3v供电 外部电源输出电流建议在 500mA 以上 The recommended output current for external power supply with 3.3V power supply is above 500mA | VCC |
| GND | 接地 Grounding | |
| VIN | 5V |

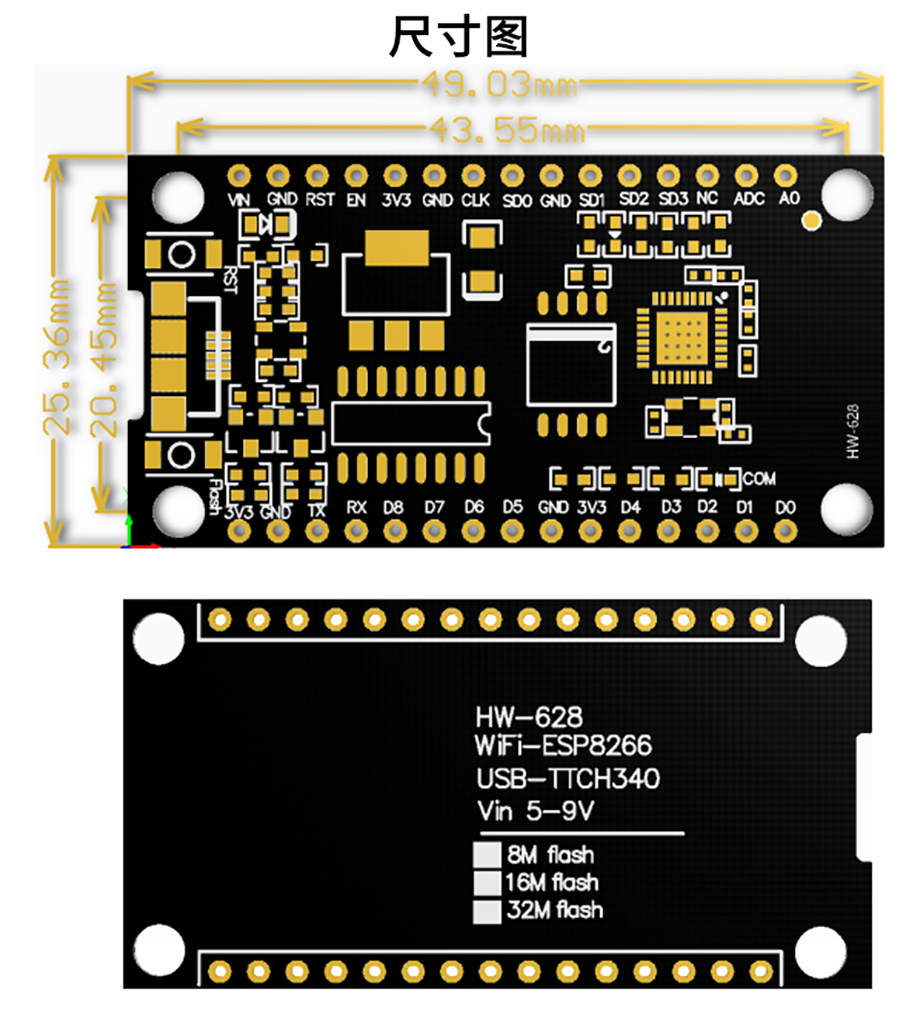

Product Size

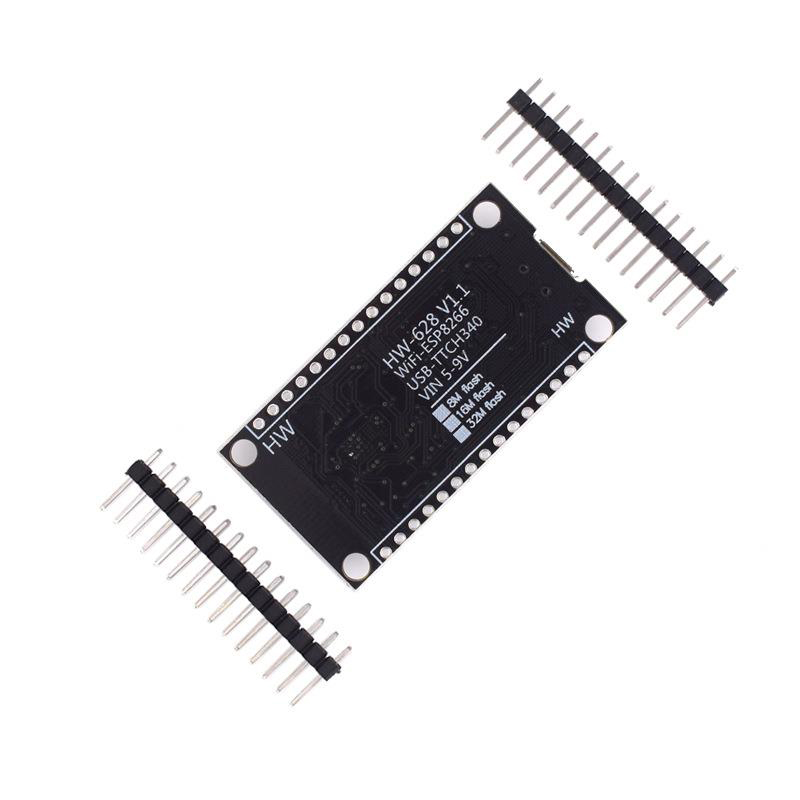

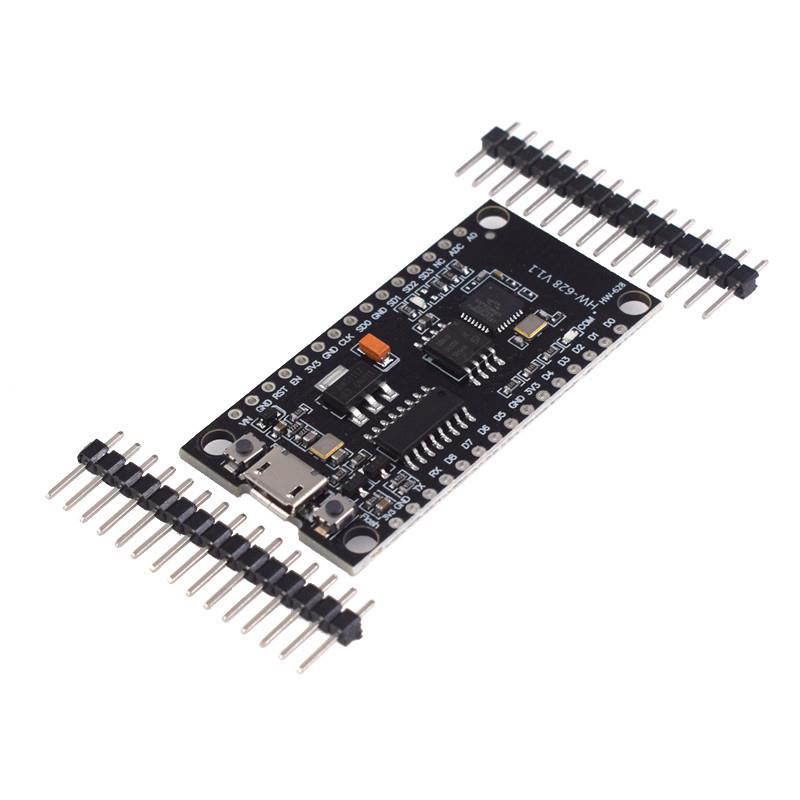

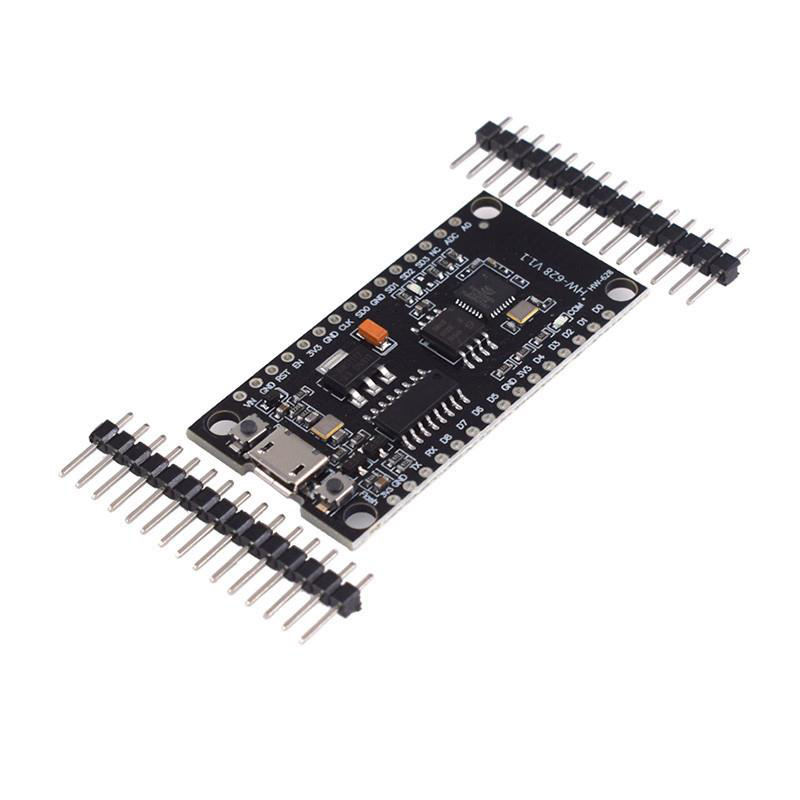

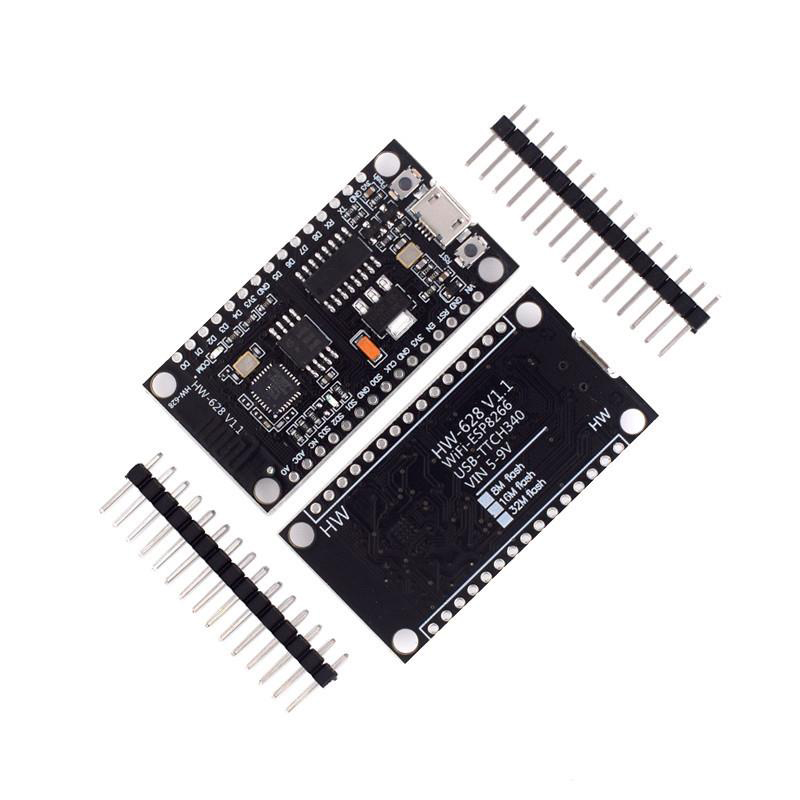

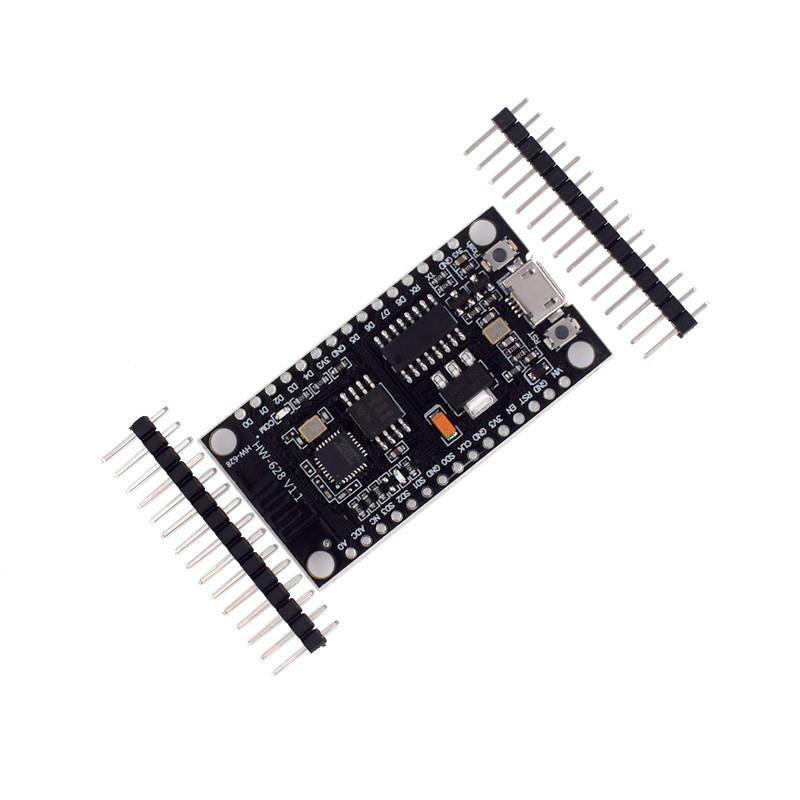

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
