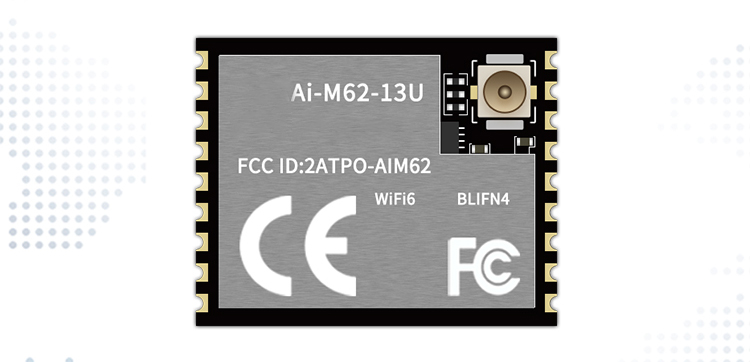

Product Functions
Ai-M62-13U is a Wi Fi 6+BLE5.3 module equipped with BL616 chip as the core processor, supporting Wi Fi 802.11b/g/n/ax protocol and BLE protocol, and supporting Thread protocol. The BL616 system includes a low-power 32-bit RISC-VCPU with floating-point unit, DSP unit, cache, and memory, with a maximum clock frequency of 320MHz.
The Ai-M62-13U module has rich peripheral interfaces, including AudioCodec、USB2.0、SDU、SD/MMC(SDH)、SPI、UART、I2C、I2S、PWM、GPDAC、GPADC、ACOMF And GPIO, etc.
The Ai-M62-12F module SecEng module supports AES/SHA/PKA/TRNG and other functions, as well as image encryption and signature activation, to meet various security application requirements in the Internet of Things field.

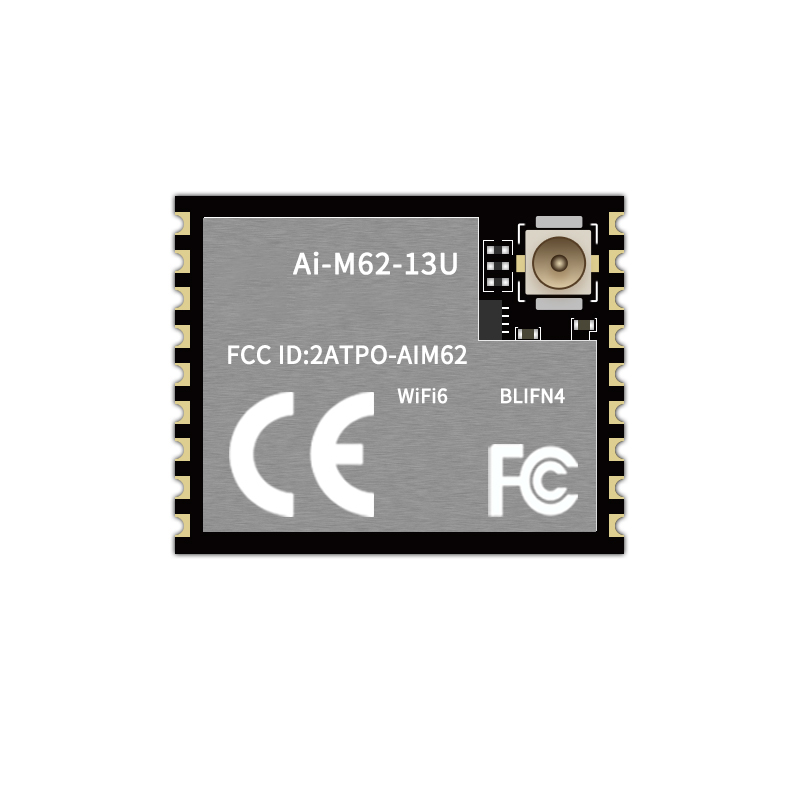

Product Specifications
| 模组型号 Module model | Ai-M62-13U |
| 模组封装 Module packaging | SMD-18 |

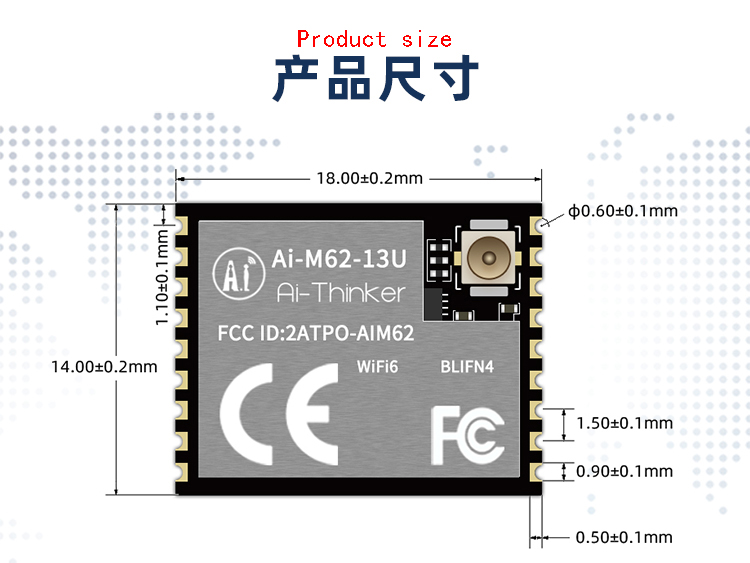

| 尺寸(mm) Size(mm) | 14.0*18.0*3.2(±0.2)MM |
| 天线形式 Antenna form | IPEX座子 IPEX transposon |
| 频谱范围 Spectrum range | 2400-2483.5MHz |
| 工作环境 Work environment | -40℃~85 ℃ |
| 存储环境 Storage environment | -40℃~125°C,<90%RH |
| 供电范围 Power supply range | 供电电压2.97V~3.6V，供电电流≥500mA Supply voltage 2.97V~3.6V,supply current≥500mA |
| 支持接口 Support interfaces | Audio Codec、USB2.0、SDU、SD/MMC(SDH)、SPI.UART、I2C、I2S、PWM、GPDAC、GPADC、ACOMP和GPIO etc. |
| IO口数量 Number of IO ports | 11个 Default 11 |
| 串口速率 Series Rate | 默认115200bps Default 115200bps |
| 安全性 Safety | WPS/WEP/WPA/WPA2/WPA3 |
| Flash | 默认4MByte,支持扩展 Default 4MByte, supports extension |

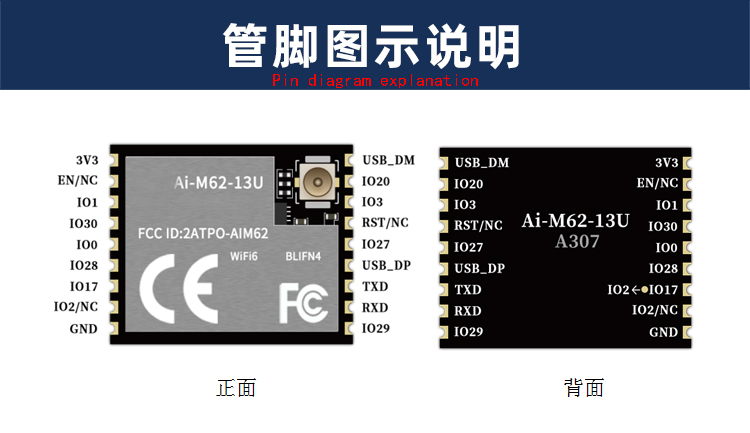

The Ai-M62-13U module has a total of 18 pins connected, as shown in the pin diagram. The pin function definition table is the interface definition.
| 脚序 Foot sequence | 名称 Name | 功能说明 Function Description |
| 1 | 3V3 | 3.3V 供电;外部供电电源输出电流建议在 500mA 以上 3.3V power supply; It is recommended that the output current of the external power supply be above 500mA |
| 2 | EN/NC | 默认作为芯片使能，高电平有效，跟 RST不能同时使用 Default as chip enable, high level effective, cannot be used simultaneously with RST |
| 3 | IO1 | GPIO1/SPI_SCLK/I2S_FS/I2C_SDA/ADC_CH8/PWMO |
| 4 | IO30 | GPIO30/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0 |
| 5 | IO0 | GPIO0/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH9/PWM0 |
| 6 | IO28 | GPIO28/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH11/PWM0 |
| 7 | IO17 | 默认可用，该 I0 口与模组内部 32.768KHz 晶振输出 PIN 脚共用.如果定制内部贴片 32.768KHz 晶振的模组，该 IO 则为 NC 状态。(By default, this I0 port is shared with the 32.768KHz crystal oscillator output PIN pin inside the module If a module with an internal chip 32.768KHz crystal oscillator is customized, the IO will be in NC state.) GPIO17/SPI_SCLK/I2S_FS/I2C_SDA/XTAL_32K_OUT/PWM0 |
| 8 | IO2/NC | 默认 NC，不可使用，如果引出，支持(Default NC, not available. If exported, supported) Bootstrap/GPIO2/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/ADC_CH2/PWM0 |
| 9 | GND | 接地 Grounding |
| 10 | IO29 | GPIO29/SPI_SCLK/I2S_FS/I2C_SDA/PWM0 |
| 11 | RXD | RXD/GPIO22/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0 |
| 12 | TXD | TXD/GPIO21/SPI_SCLK/I2S_FS/I2C_SDA/ADC_RCAL_VOUT/PWM0 |
| 13 | USB_DP | USB_DP |
| 14 | IO27 | GPIO27/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/ADC_CH10/PWM0 |
| 15 | RST/NC | 默认悬空，可定制为复位引脚，低电平有效 Default floating, customizable as reset pin, effective at low level |
| 16 | IO3 | GPIO3/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/ADC_CH3/PWM0 |
| 17 | IO20 | GPIO20/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH0/PWM0 |
| 18 | USB_DM | USB_DM |
| Note: As a Bootstrap, when GPIO2 is powered on and reaches a high level, the module enters burning mode; When the power on moment is low, the module starts normally. | ||
WiFi RF Performance Table
| 描述 Describe | 典型值 Typical values | 单位 Unit | ||
| 频谱范围 Spectrum range | 2400~2483.5 | MHz | ||
| 输出功率 Output power | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 11ax 模式下HE40，PA输出功率为 | - | 16 | - | dBm |
| 11ax 模式下HE20，PA输出功率为 | - | 17 | - | dBm |
| 11n 模式下HT40，PA输出功率为 | - | 19 | - | dBm |
| 11n 模式下HT20，PA输出功率为 | - | 19 | - | dBm |
| 11g 模式下，PA输出功率为 | - | 19 | - | dBm |
| 11b 模式下，PA输出功率为 | - | 22 | - | dBm |
| 接收灵敏度 Receiver sensitivity | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 11b,1 Mbps | - | -98 | - | dBm |
| 11b, 11 Mbps | - | -90 | - | dBm |
| 11g, 6 Mbps | - | -93 | - | dBm |
| 1lg,54 Mbps | - | -76 | - | dBm |
| 11n,HT20(MCS7) | - | -73 | - | dBm |
| 11ax,HE20(MCS9) | - | -70 | - | dBm |
| 11ax,HE40(MCS9) | - | -67 | - | dBm |
BLE RF Performance Table
| 描述 Describe | 典型值 Typical values | 单位 Unit | ||
| 频谱范围 Spectrum range | 2400~2483.5MHz | MHz | ||
| 输出功率 Output power | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 1Mbps | - | 10 | 15 | dBm |
| 2Mbps | - | 10 | 15 | dBm |
| 接收灵敏度 Receiver sensitivity | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 单位 Unit |
| 1Mbps sensitivity @ 30.8% PER | - | -99 | - | dBm |
| 2Mbps sensitivity @ 30.8% PER | - | -97 | - | dBm |
Power consumption meter
·The following power consumption data is based on a 3.3V power supply, an ambient temperature of 25 ° C, and measured using an internal voltage regulator.
·All measurements were completed at the antenna interface with a filter in place.
·All emission data is measured based on a 100% duty cycle in continuous emission mode.
| 模式 Mode | 最小值 Minimum value | 平均值 Average value | 最大值 Maximum value | 单位 Unit |
| 发射(Transmit)802.1lb，11Mbps，POUT=+22dBm | - | 442 | - | mA |
| 发射(Transmit)802.11g，54Mbps，POUT=+19dBm | - | 296 | - | mA |
| 发射(Transmit)802.11n，MCS7，POUT=+19dBm | - | 301 | - | mA |
| 发射(Transmit)802.11ax，MCS9，POUT=+17dBm | - | 269 | - | mA |
| 接收(Receive)802.11b | - | 59 | - | mA |
| 接收(Receive)802.11g | - | 59 | - | mA |
| 接收(Receive)802.11n | - | 59 | - | mA |
| 接收(Receive)802.11ax | - | 59 | - | mA |
