Product Descriptions
Functional features: BW12 is a highly integrated WIFI SOC module. The main chip RTL8710BX is a low-power chip that has a built-in ARM-CM4F MCU. It integrates WLAN, MAC, 1T1R supported WLAN baseband, and RF baseband, and provides a set of configurable GPIO ports for controlling different peripheral devices.
BW12 is equipped with a fully functional WIFI protocol, embedded memory, and simple application development.
Product Specifications
| 型号 Model | BW12 |
| 产品类型 Product type | SoC WIFl module |
| 主要芯片 Main chips | RTL8710BX |
| 支持协议 Support agreement | 802.11 b/g/n |
| 通信接口 Communication interface | UART.I2C,SPI.GPIO,SWD,PWM |
| 标准电压 Standard voltage | 3.3±10% V |
| 工作温度 Operation temperature | -20~+85°C ambient temperature |
| 存储温度 Storage temperature | -40~125°C ambient temperature |
| 工作湿度 Working humidity | 5 to 93 % maximum (non-condensing) |
| 封装尺寸 Package Size | 24 x16x 3mm(LxWxH)±0.2mm |

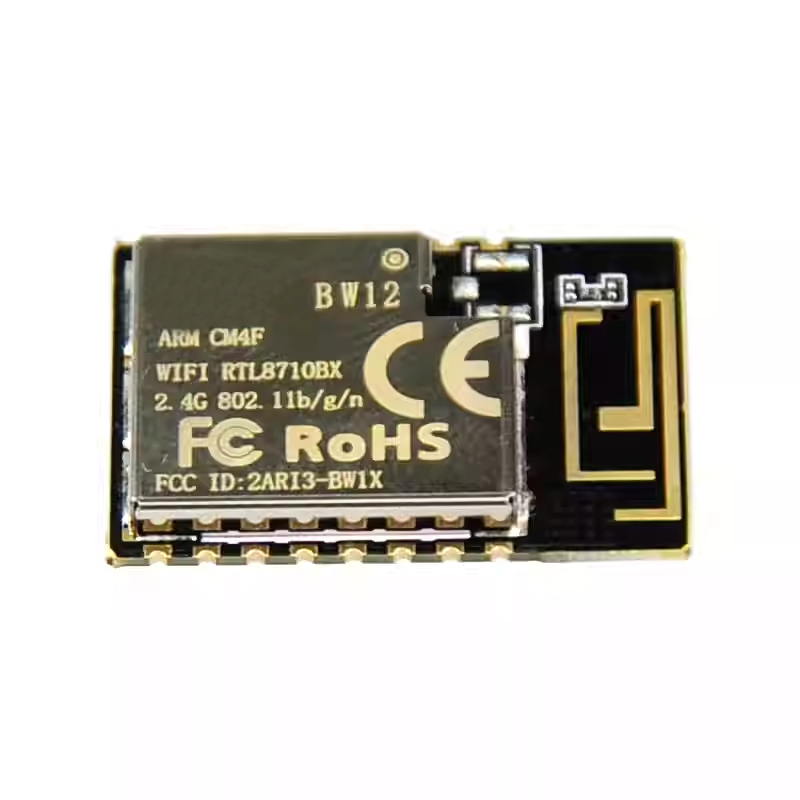

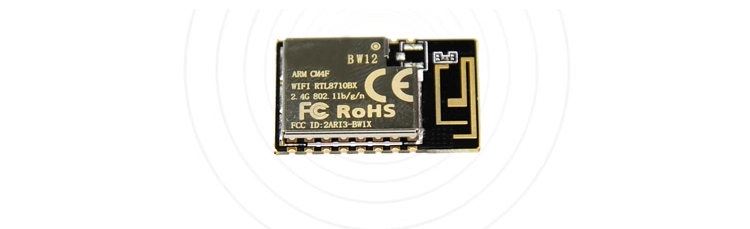

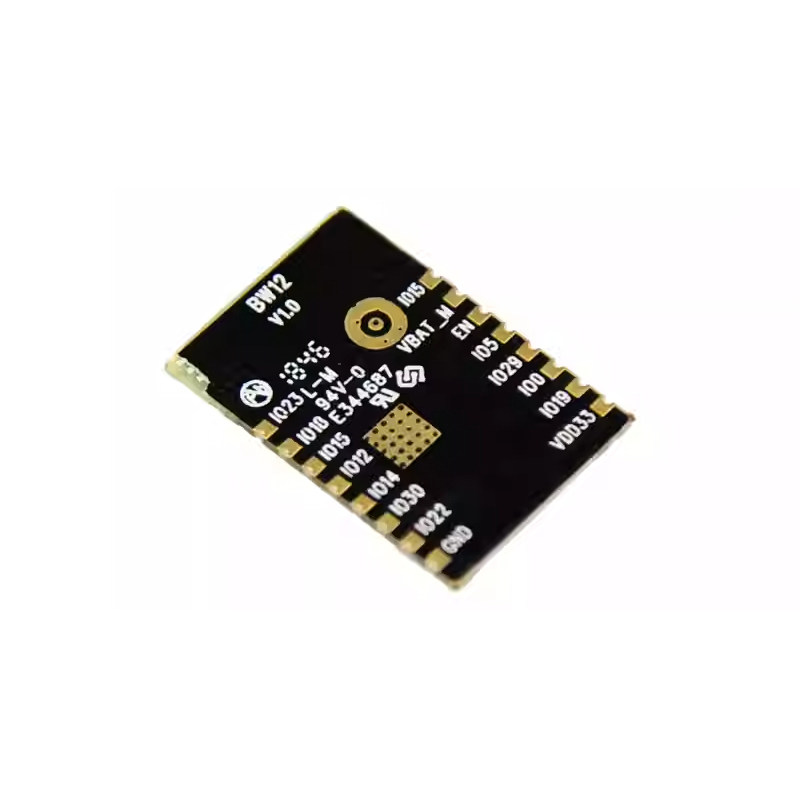

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
