Product Descriptions

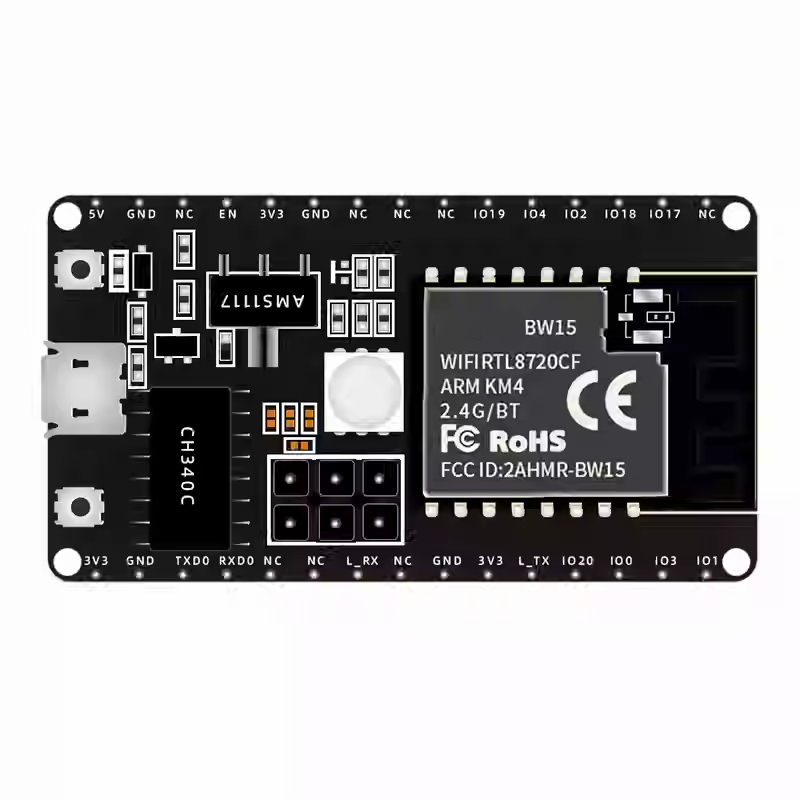

The BW15 Kit development board is a core development board based on the BW15 module for 2.4GHz WiFi and Bluetooth BLE4.2. This development board continues the classic design of NodeMCU development board, leading all I/O to the pin headers on both sides. Developers can connect peripherals according to their own needs.
The BW15 Kit development board comes with RGB light beads, which can save a lot of time for smart light control developers in the early stages of development and quickly verify product feasibility.
The BW15 Kit and new modules integrate internal memory, supporting simple application development. CH340 serial chip is used to support serial communication and basic AT instruction development.
Product Specifications
| 基本信息 Basic information | |
| 产品型号 Product Model | BW15-Kit |
| 产品类型 product type | 802.11 b/g/n WiFi+BLE4.2 module |
| 封装尺寸 Package Size | |
| 封装形式 Packaging form | DIP-30 |

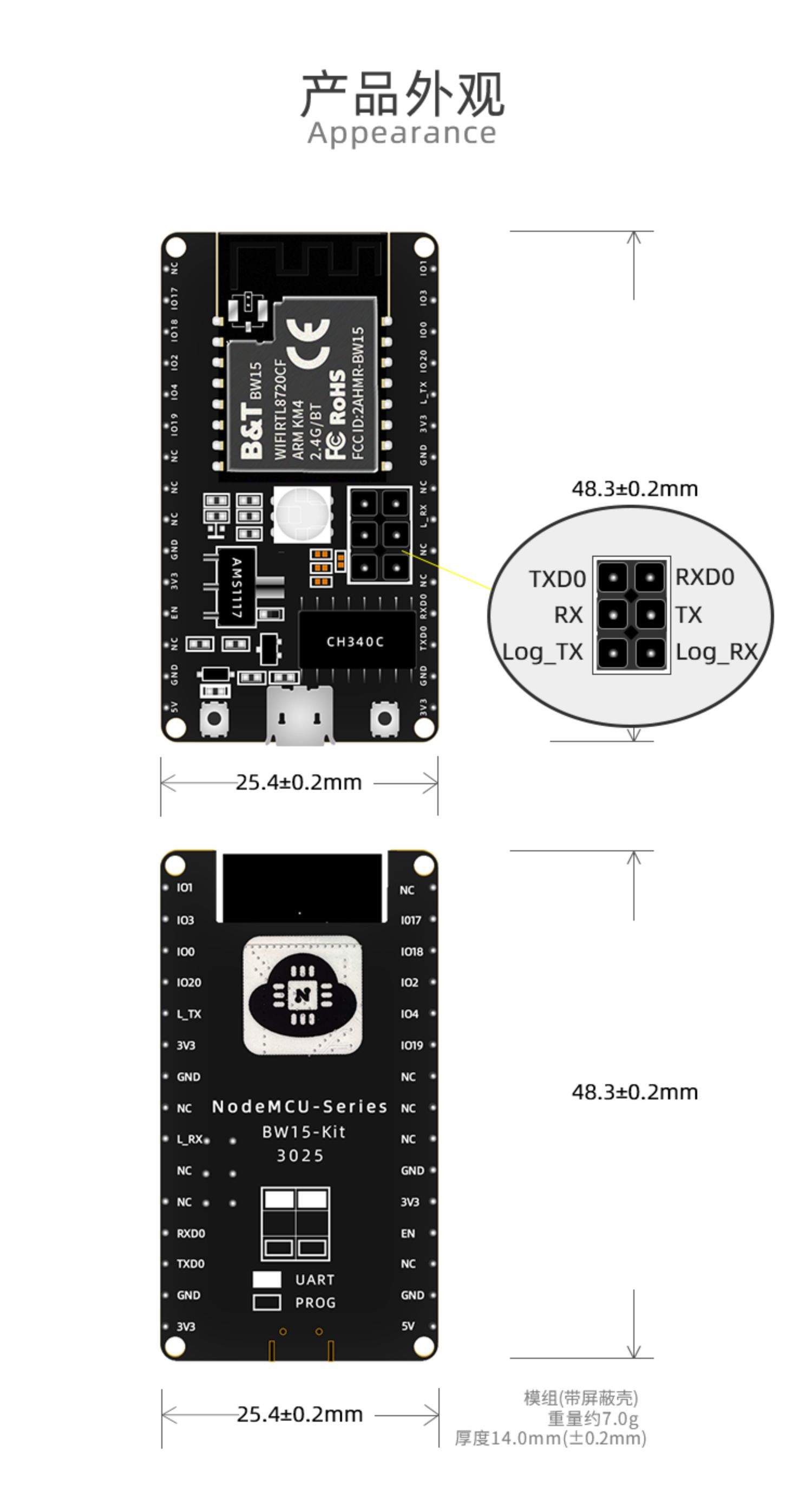

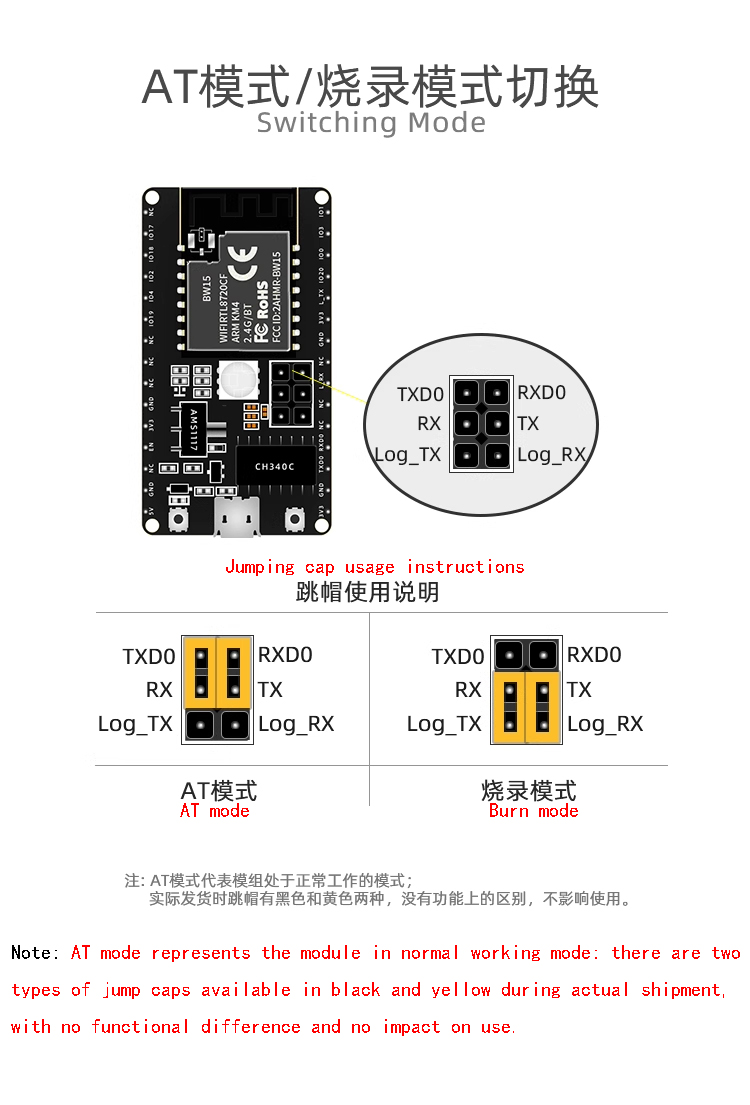

| 尺寸大小 Size | 25.4*48.3*14.0(±0.2)mm,Net weight 7.0g |
| 天线形式 Antenna form | 板载 PCB 天线/预留IPEX座 Onboard PCB antenna/reserved IPEX socket |
| 工作频率 Operating Frequency | |
| 典型值 Typical values | 2400-2483.5MHz |
| 串口速率 Series Rate | |
| Supports 2400~1152000bps，default 115200bps | |
| 引脚接口 Pin interface | |
| 可用IO口 Available IO ports | 19个 19 of them |
| 支持接口 Support interfaces | UART/GPIO/ADC/PWM/I2C etc |
| 供电范围 Power supply range | |
| Micro USB power supply voltage 4.75V~5.25V, recommended 5.0V | |
| 工作环境 Work environment | |
| 工作温度 Operation temperature | -40°C~85°C |
| 存储环境 Storage environment | -40°C~125°C，<90%RH |
| 模组认证 Module certification | |
| FCC/CE/SRRC/ROHS/REACH | |
| 功耗 Power consumption | |
| Modem-Sleep | 20mA |
| Light-Sleep | 2mA |
| Deep-Sleep | 28μA |
| Power Off | 0.5μA |
| 输出功率 Output power | |
| 11n mode，PA | 15±2 dBm |
| 11g mode，PA | 16±2 dBm |
| 11b mode，PA | 18±2 dBm |
| 接收灵敏度 Receiver sensitivity | |
| CCK, 1 Mbps | ≤-98 dBm |
| CCK, 11 Mbps | ≤-90 dBm |
| 6 Mbps (1/2 BPSK) | ≤-94 dBm |
| 54 Mbps (3/4 64-QAM) | ≤-77 dBm |
| HT20(MCS7) | ≤-74 dBm |
| 序号 Serial Number | 引脚 Pin | 功能说明 Function Description |
| 1 | IO1 | GPIOA_1/UART1_OUT/PWM1 |
| 2 | IO3 | GPIOA_3/UART1_OUT/SPI_SCL/I2C_SDA/PWM3 |
| 3 | IO0 | GPIOA_0/UART1_IN/EXT_32K/PWM0 |
| 4 | IO20 | GPIOA_20/SD_D1/SPI_M_D1/UART2_RTS/SPI_MISO/I2C_S_DA/ PWM0 |
| 5 | L_TX | GPIOA_16/SD_D3/SPI_M_CLK/UART2_OUT/SPI_SCL/I2C_S_DA/ PWM4 |
| 6 | 3V3 | 3.3V供电(VDD);最大500mA 3.3V power supply (VDD); Maximum 500mA |
| 7 | GND | 接地 Grounding |
| 8 | NC | 空 Empty |
| 9 | L_RX | GPI0A_15/SD_D2/SPIM_CS/UART2_IN/SPI_CS/I2C_SCL/PWM 3 |
| 10 | NC | 空 Empty |
| 11 | NC | 空 Empty |
| 12 | RXD0 | AT_UART_RX |
| 13 | TXD0 | AT_UART_TX |
| 14 | GND | 接地 Grounding |
| 15 | 3V3 | 3.3V供电(VDD);最大500mA 3.3V power supply (VDD); Maximum 500mA |
| 16 | NC | 空 Empty |
| 17 | IO17 | GPIOA_17/SD_CMD/SPI_M_D2/PWM5 |
| 18 | IO18 | GPIOA_18/SD_CLK/SPI_M_D3/PWM6 |
| 19 | IO2 | GPIOA_2/UART1_IN/SPI_CS/I2C_SCL/PWM2 |
| 20 | IO4 | GPIOA_4/UART1_CTS/SI_MOSI/PWM4 |
| 21 | IO19 | GPIOA_19/SD_DO/SPI_M_DO/UART2_CTS/SPI_MOSI/I2C_S CL/ PWM7 |
| 22 | NC | 空 Empty |
| 23 | NC | 空 Empty |
| 24 | NC | 空 Empty |
| 25 | GND | 接地 Grounding |
| 26 | 3V3 | 3.3V供电(VDD);最大500mA 3.3V power supply (VDD); Maximum 500mA |
| 27 | EN | 芯片使能端 Chip enable terminal |
| 28 | NC | 空 Empty |
| 29 | GND | 接地 Grounding |
| 30 | 5V | 5V电源 5V power supply |

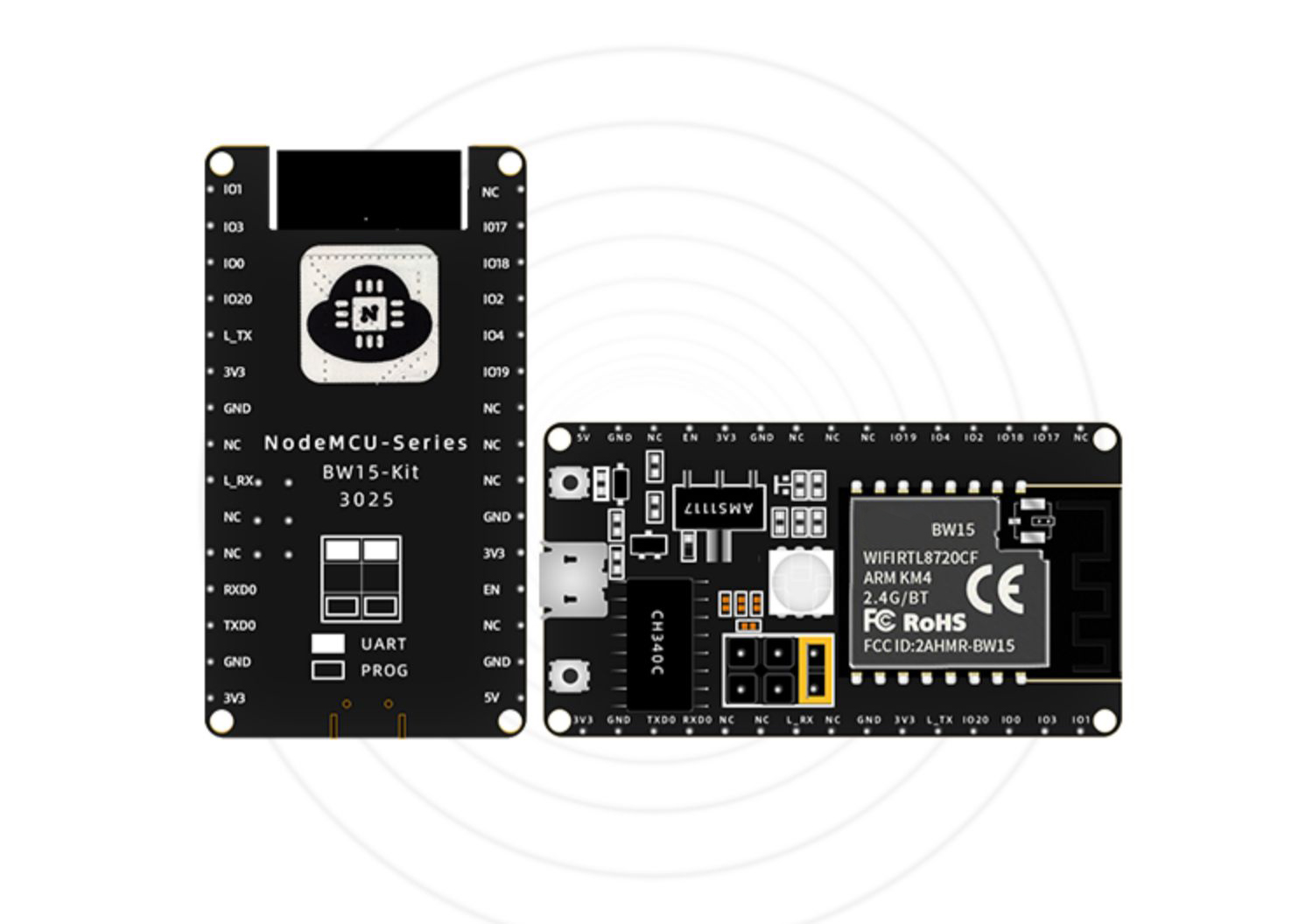

Product Show
