Product Descriptions

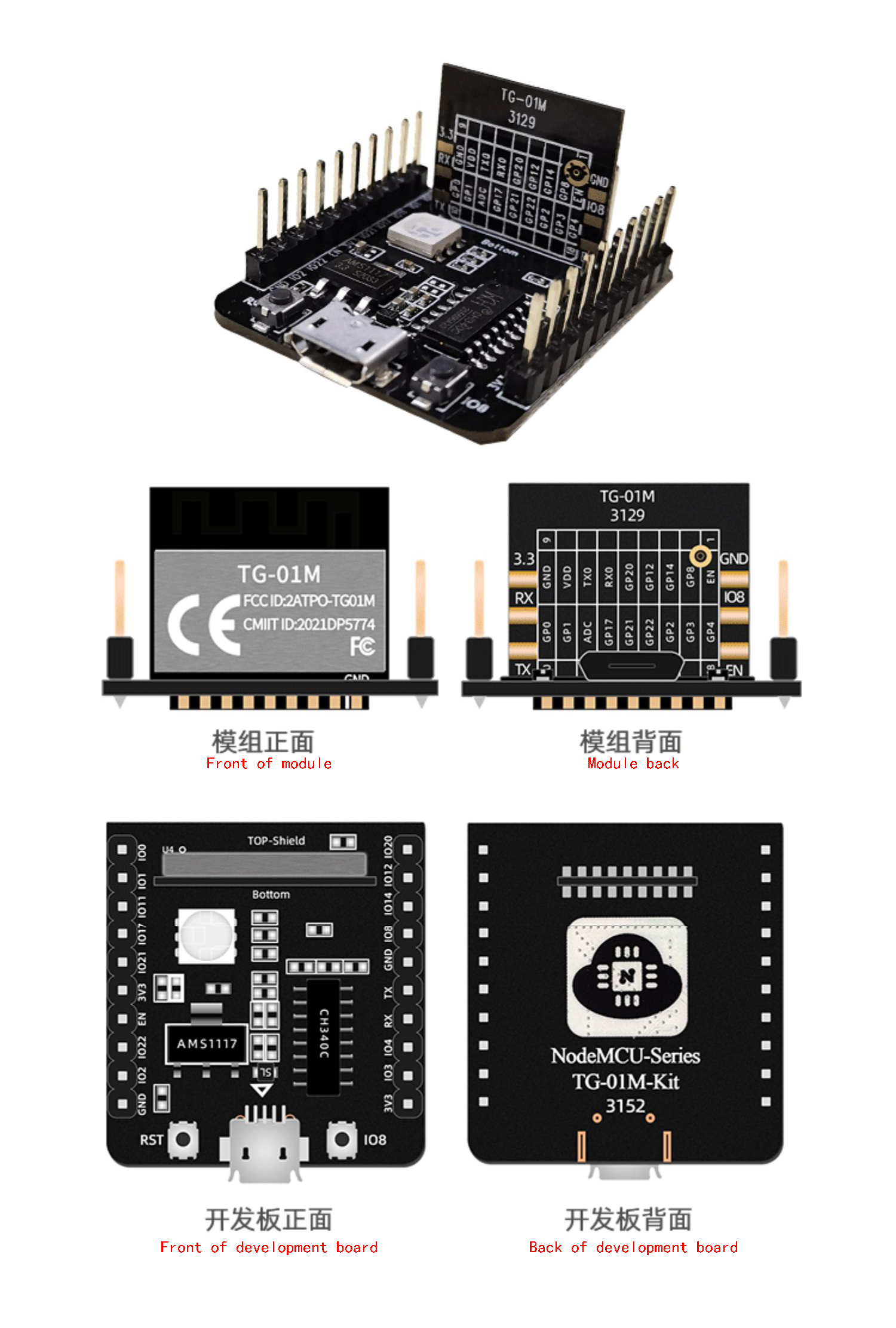

The TG-01M Kit development board is developed and designed based on the TG-01M module, using 2.4G RF, Wi Fi 802.11b/g/n, and BLE baseband/MAC design.
The microcontroller subsystem includes a low-power 32-bit RISC CPU, cache, and memory. The power management unit provides flexible settings to achieve low-power mode and supports multiple safety functions.
Product Specifications
| 基本信息 Basic information | |
| 产品型号 Product Model | TG-01M-Kit |
| 产品类型 Product type | 802.11b/g/n和BLE5.0 Core development board |
| 封装尺寸 Package Size | |
| 封装形式 Packaging form | DIP-20(2.54 Standard spacing needle arrangement) |

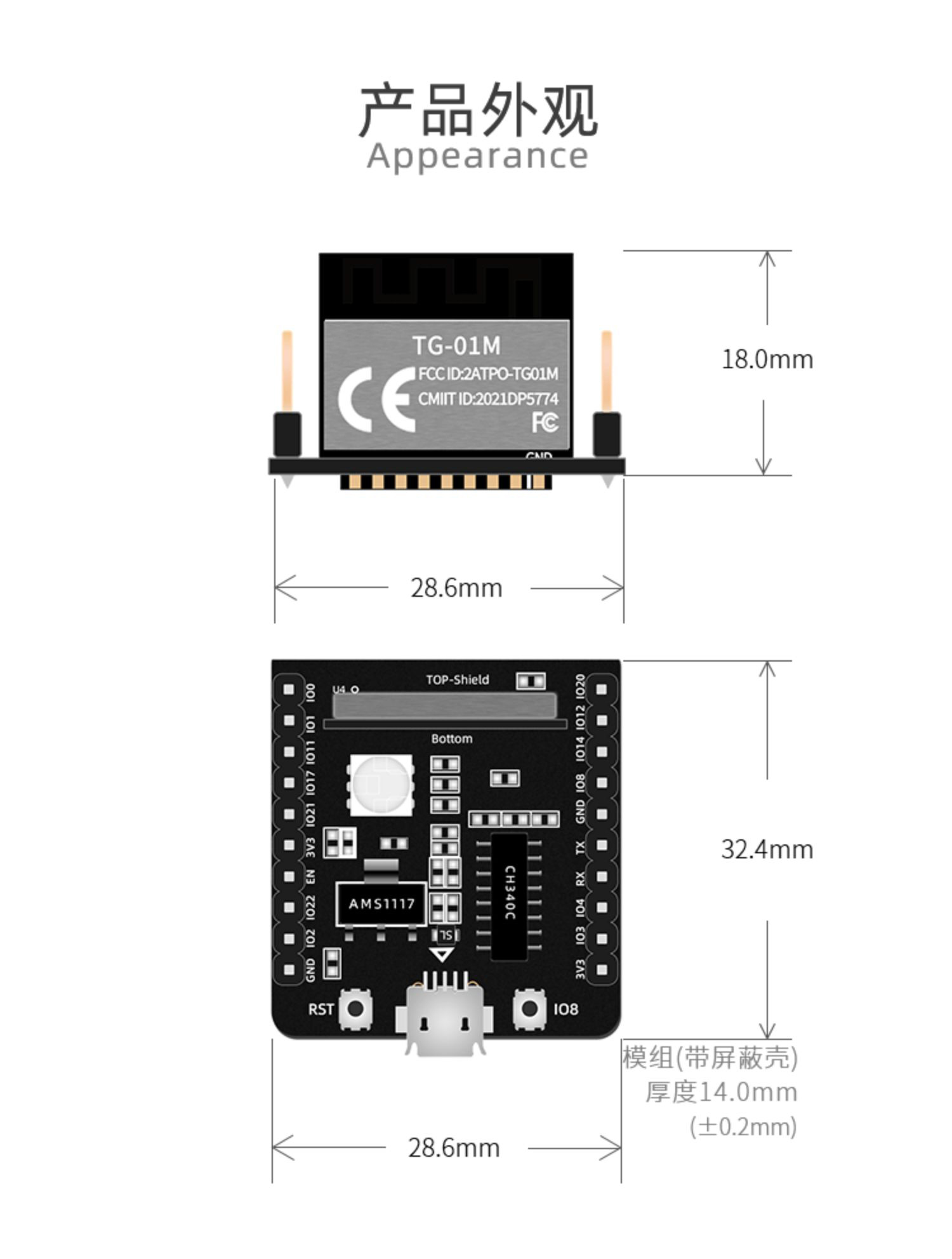

| 尺寸大小 Size | 32.4*28.6*18.0(±0.2)mm,Net weight 5.4g |
| 天线形式 Antenna form | 板载 PCB 天线 Onboard PCB antenna |
| 存储大小 Storage size | |
| 276 KB SRAM 128 KBROM | |
| 2MB SPI Flash | |
| WiFi features | |
| Supports 802.11 b/g/n protocol | |
| Supports Station/Soft AP /Sniffer Three working modes | |
| 接口类型 Interface type | |
| 13个可用IO 口 13 available IO ports | |
| Supports SDIO/SPI/UART/I2C/IR remote/PWM/ADC/DAC/PIR/GPIO | |
| 安全性能 Safety performance | |
| AES/SHA/PKA encryption algorithm | |

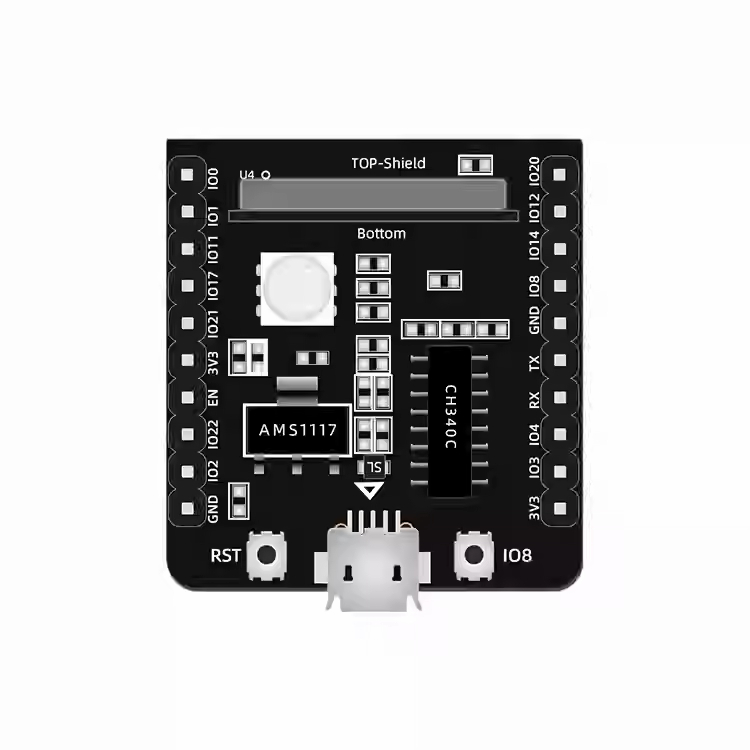

| 序号 Serial Number | 引脚 Pin | 功能说明 Function Description |
| 1 | IO0 | SDIO,SFLASH,SPI,I2C,UART,PWM,GPIO |
| 2 | IO1 | SDIO,SFLASH,SPI,I2C,UART,PWM,GPIO |
| 3 | IO11 | SPI,I2C,UART,PWM,AUXADC,GPIO |
| 4 | IO17 | SFLASH,SPI,I2C,UART,PWM,GPIO |
| 5 | IO21 | SFLASH,SPI,I2C,UART,PWM,GPIO |
| 6 | 3V3 | 供电 Power supply |
| 7 | EN | 复位/芯片使能 Reset/chip enable |
| 8 | IO22 | SFLASH,SPI,I2C,UART,PWM,GPIO |
| 9 | IO2 | SDIO,SFLASH,SPI,I2C,UART,PWM,GPIO |
| 10 | GND | GND |
| 11 | 3V3 | 供电 Power supply |
| 12 | IO3 | SDIO,SPI,I2C,UART,PWM,GPIO |
| 13 | IO4 | SDIO,SPI,I2C,UART,PWM,GPIO |
| 14 | RX | SPI,I2C,UART,PWM,AUXADC,GPIO |
| 15 | TX | SPI,I2C,UART,PWM,GPIO |
| 16 | GND | GND |
| 17 | IO8 | SPI,I2C,UART,PWM,AUXADC,GPIO |
| 18 | IO14 | SPI,I2C,UART,PWM,AUXADC,GPIO |
| 19 | IO12 | SPI,I2C,UART,PWM,AUXADC,GPIO |
| 20 | IO20 | SFLASH,SPL,I2C,UART,PWM,GPIO |
