Product Descriptions

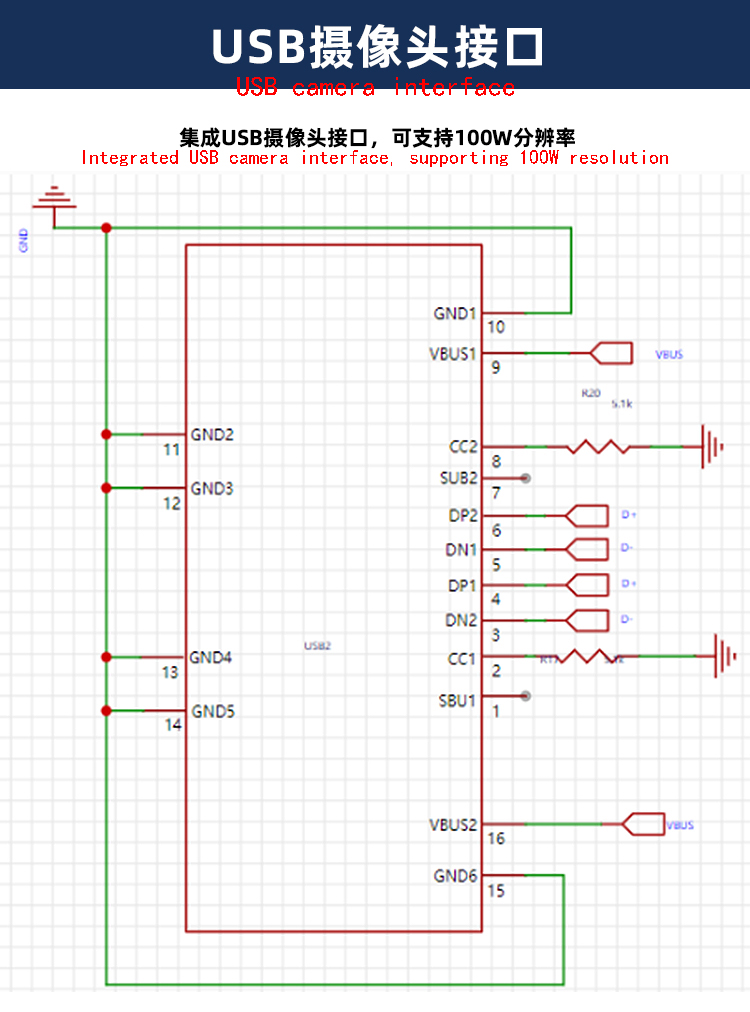

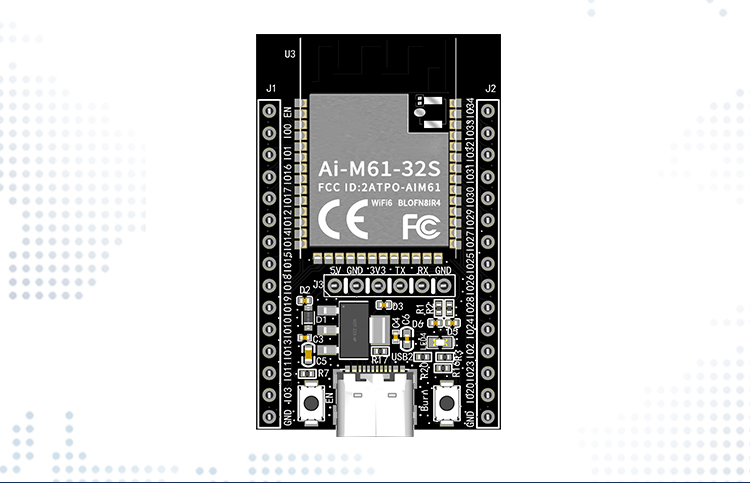

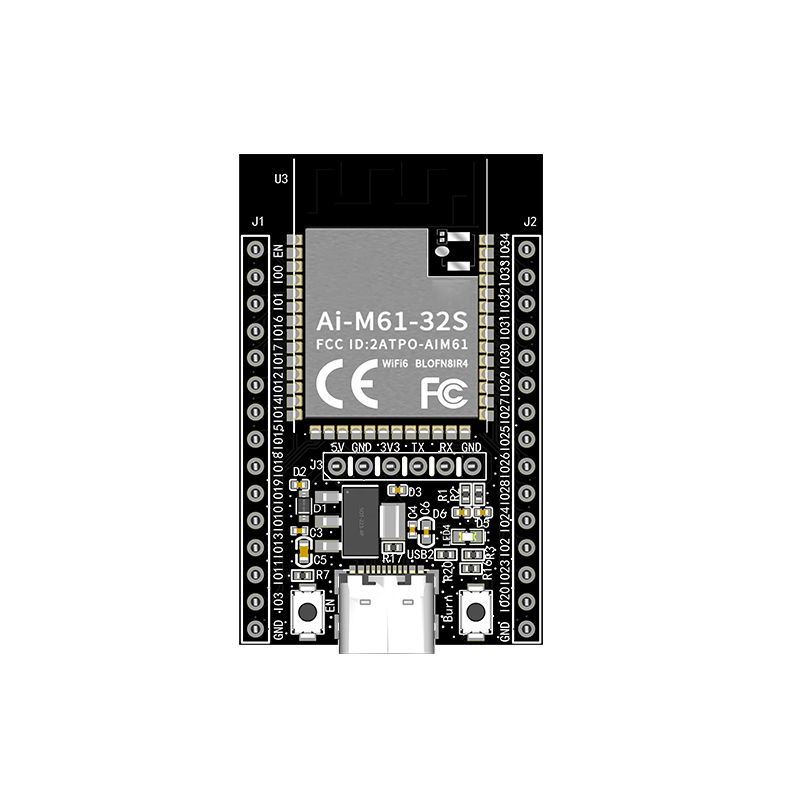

AiPi-Cam-U is a development board designed for Ai-M61-32S, supporting WiFi6 and BLE5.3. The Ai-M61-32S module equipped with it has a rich set of peripheral interfaces, including DVP, MJPEG, Dispaly, Audiocodec, USB2.0, SDU Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPI0. AiPi-Cam-U integrates USB-C (Type-C) and can be connected to a USB camera. Currently, a 100W pixel camera has been tested and approved.

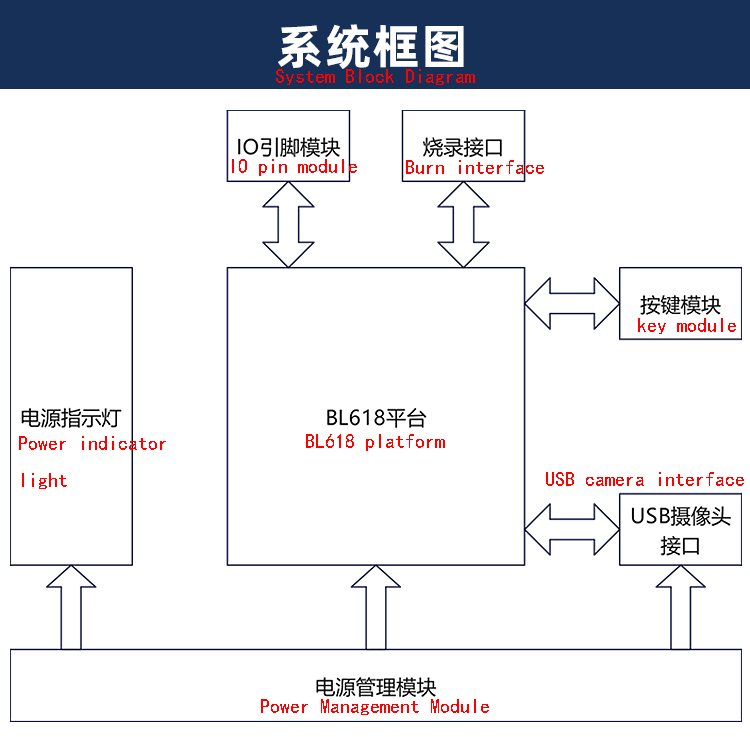

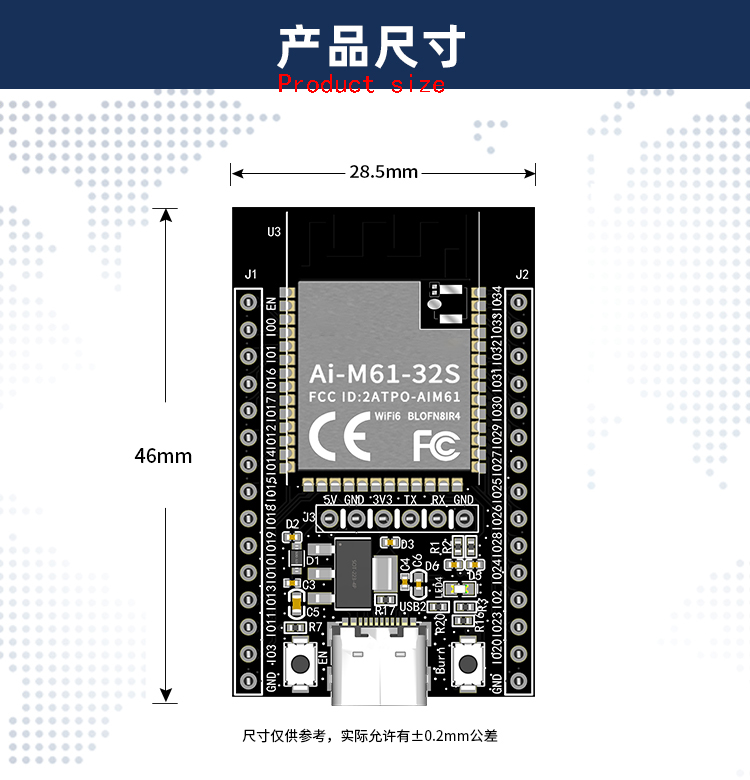

Product Specifications

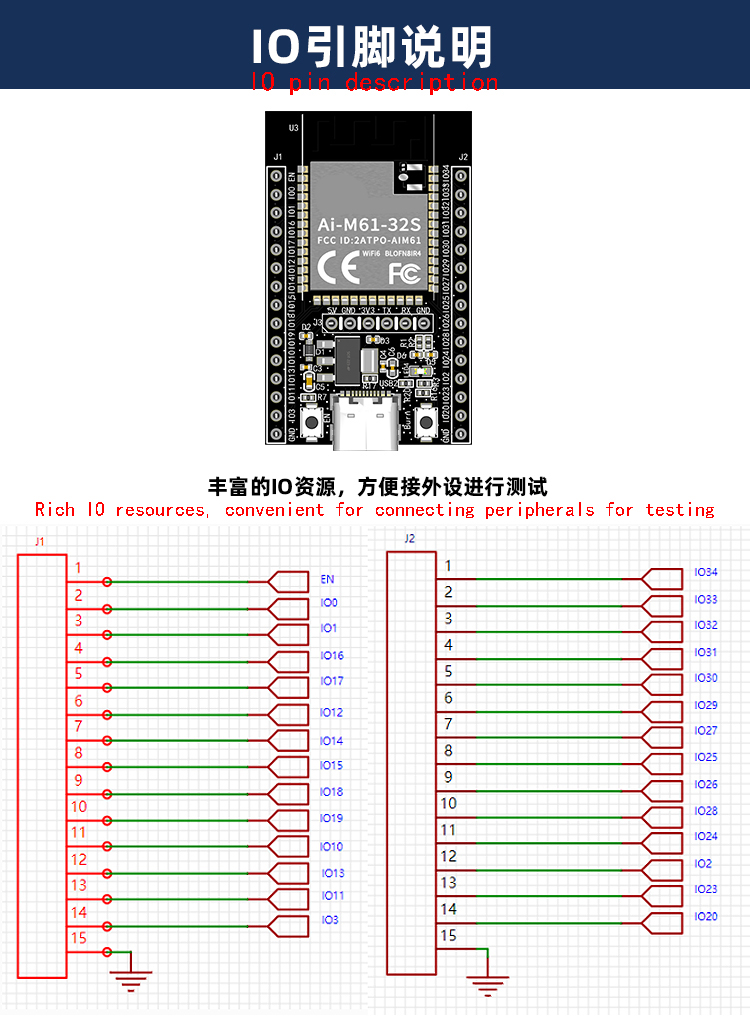

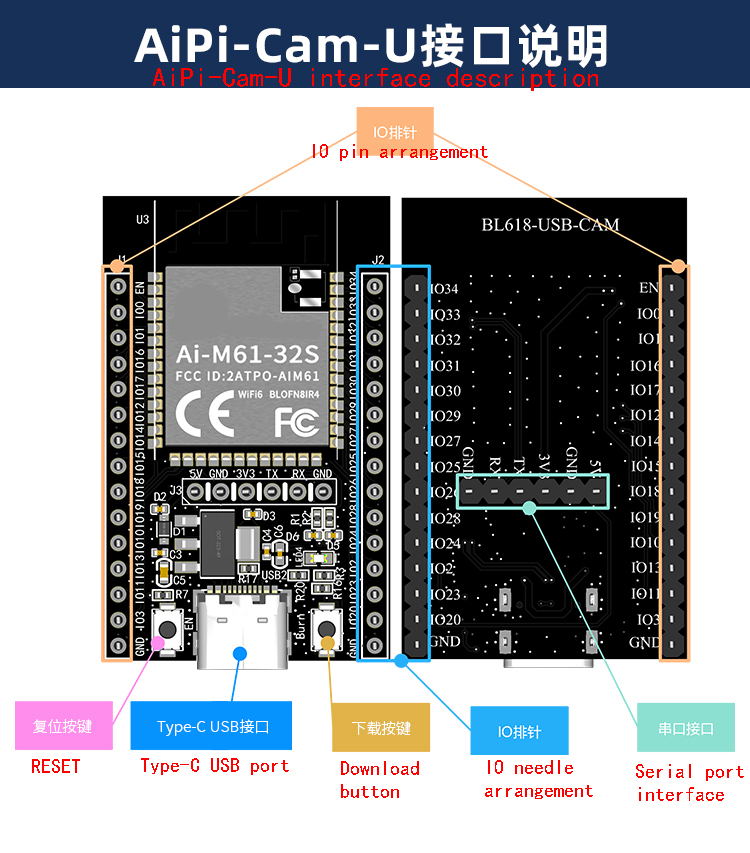

| IO名称 IO Name | 功能 Function |
| EN | 默认作为芯片使能，高电平有效 Default as chip enable, high level effective |
| IO0 | GPIO0/SPI-SS/I2S_BCLK/I2C_SCL/PWMO/ADC_CH9 |
| IO1 | GPIO_1/SPI_SCLK/I2S_FS/I2C_SDA/PWMO/ADC_CH8 |
| IO16 | GPIO_16/SPI_SS/I2S_BCLK/I2C_SCL/XTAL_32K_IN/PWMO |
| IO17 | GPIO_17/SPI_SCLK/I2S_FS/I2C_SDA/XTAL_32K_OUT/PWMO |
| IO12 | GPIO_12/SPI_SS/SDH_CLK/SF3_DO/I2S_BCLK/I2C_SCL/PWMO/ADC_CH6 |
| IO14 | GPIO_14/SPI_MOSI/SPI_MISO/SDH_DAT3/SF3_D1/I2S_DI/I2S_RCLK_O/I2C_SCL/PWMO/ADC_CH4 |
| IO15 | GPIO_15/SPI_MOSI/SDH_DAT2/SF3_CS/I2S_DO/I2S_RCLK_O/I2C_SDA/PWMO |
| IO18 | GPIO_18/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0 |
| IO19 | GPIO_19/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWMO/ADC_CH1 |
| IO10 | GPIO_10/SPI_MISO/SDH_DAT1/SF2_D3/I2S_DI/I2S_RCLK_O/I2C_SCL/PWMO/ADC_CH7 |
| IO13 | GPIO_13/SPI_SCLK/SDH_CMD/SF3_D2/I2S_FS/I2C_SDA/PWMO/ADC_CH5 |
| IO11 | GPIO_11/SPI_MOSI/SDH_DATO/SF3_CLK/I2S_DO/I2S_RCLK_O/I2C SDA/PWM0 |
| IO3 | GPIO_3/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWMO/ADC_CH3 |
| GND | GND |
| IO34 | GPIO_34/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWMO |
| IO33 | GPIO_33/SPI_SCLK/I2S_FS/I2C_SDA/PWMO |
| IO32 | GPIO_32/SPI_SS/I2S_BCLK/I2C_SCL/PWMO |
| IO31 | GPIO_31/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0 |
| IO30 | GPIO_30/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWMO |
| IO29 | GPIO_29/SPI_SCLK/I2S_FS/I2C_SDA/PWM0 |
| IO27 | GPIO_27/SPI MOSI/I2S DO/I2S RCLK O/I2C_SDA/PWMO/ADC_CH10 |
| IO25 | GPIO_25/SPI_SCLK/I2S_FS/I2C_SDA/PWM0 |
| IO26 | GPIO_26/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0 |
| IO28 | GPIO_28/SPI_SS/I2S_BCLK/I2C_SCL/PWMO/ADC_CH11 |
| IO24 | GPIO_24/SPI_SS/I2S_BCLK/I2C_SCL/PWMO |
| IO2 | GPIO_2/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWMO/ADC_CH2 |
| IO23 | GPIO_23/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0 |
| IO20 | GPIO_20/SPI_SS/I2S_BCLK/I2C_SCL/PWM0/ADC_CHO |
| GND | GND |
