Product Descriptions

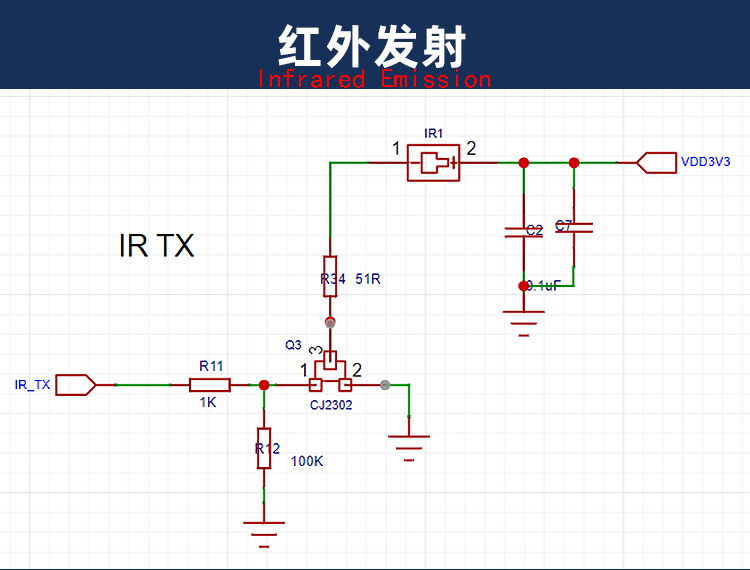

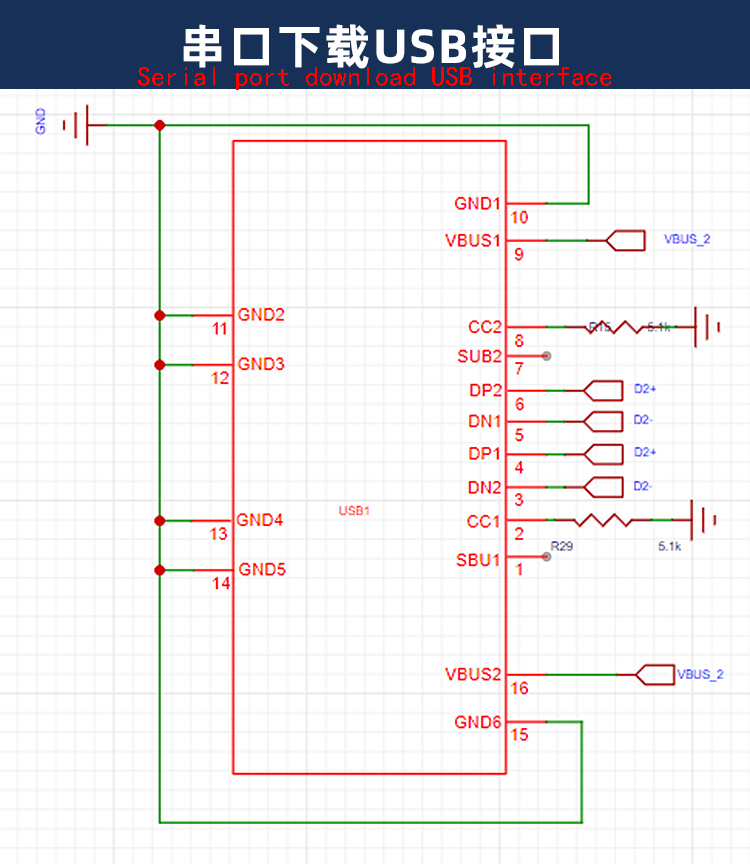

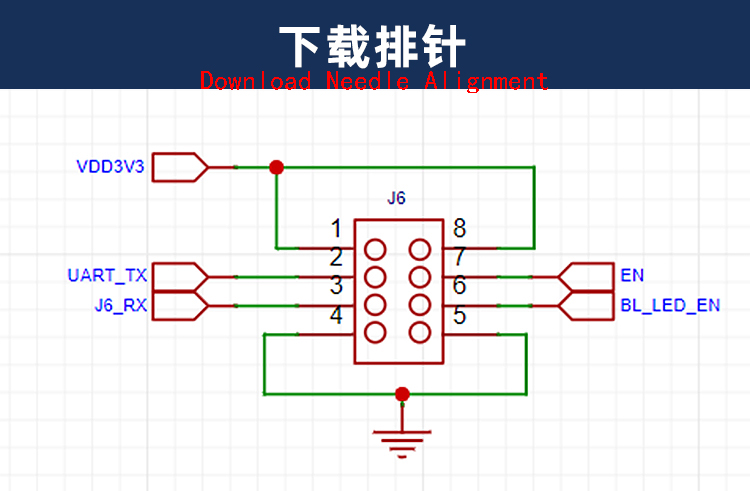

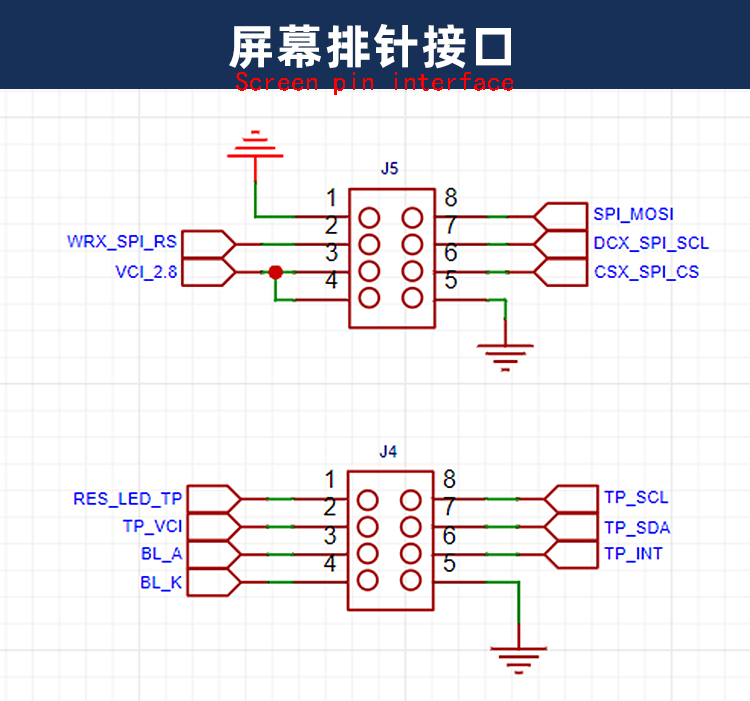

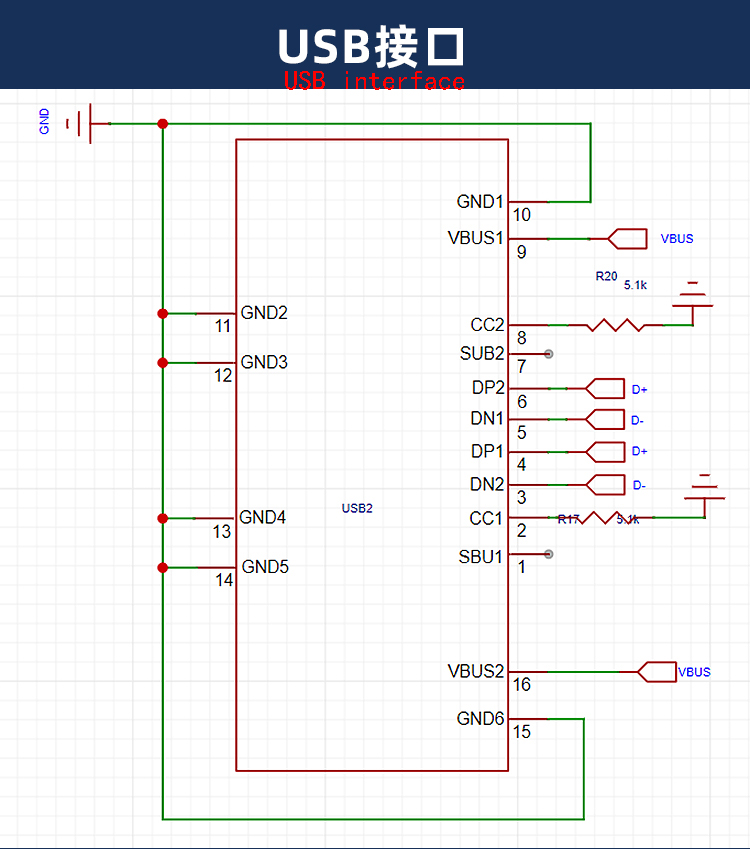

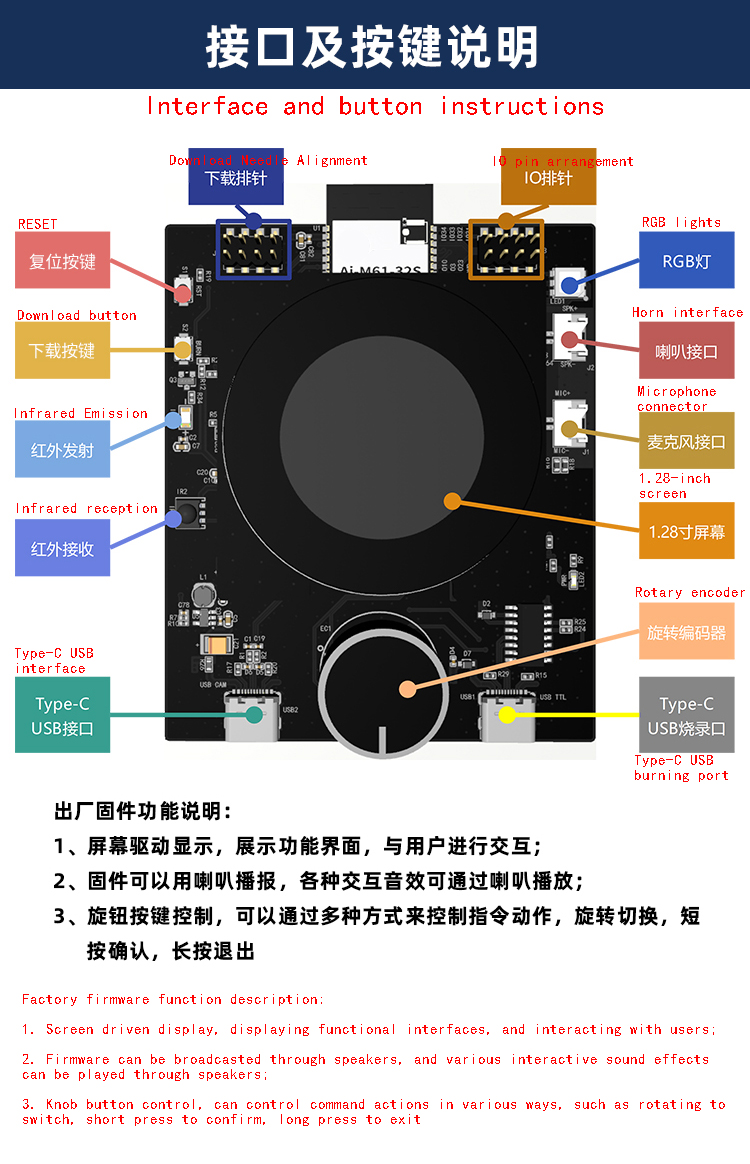

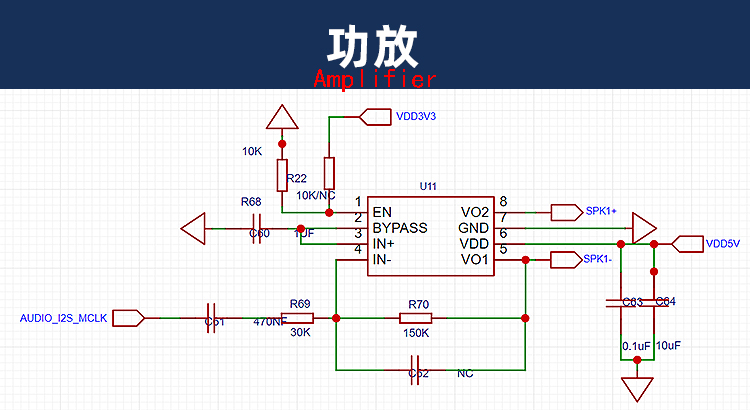

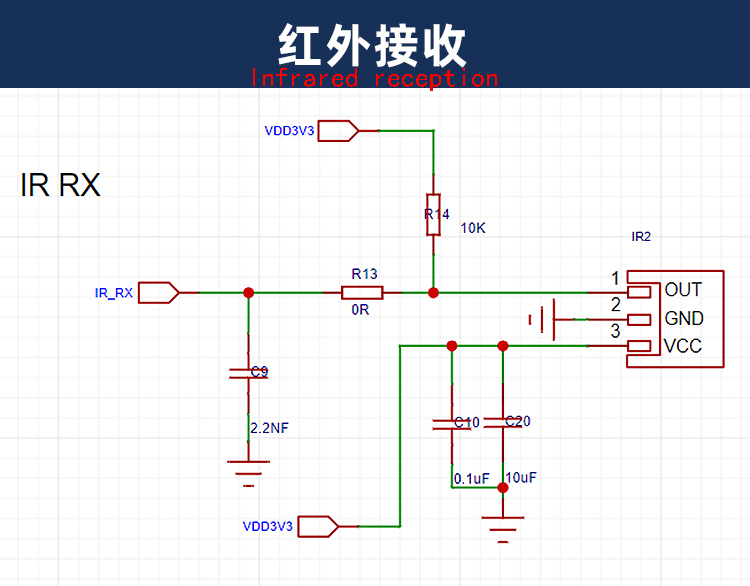

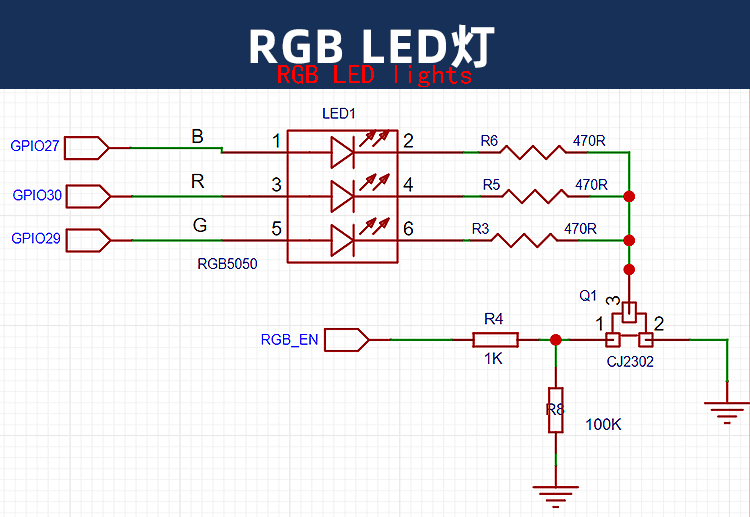

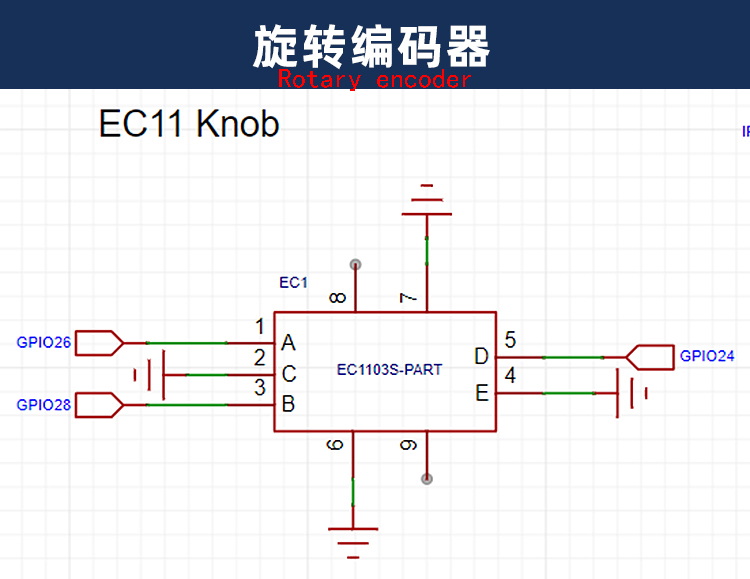

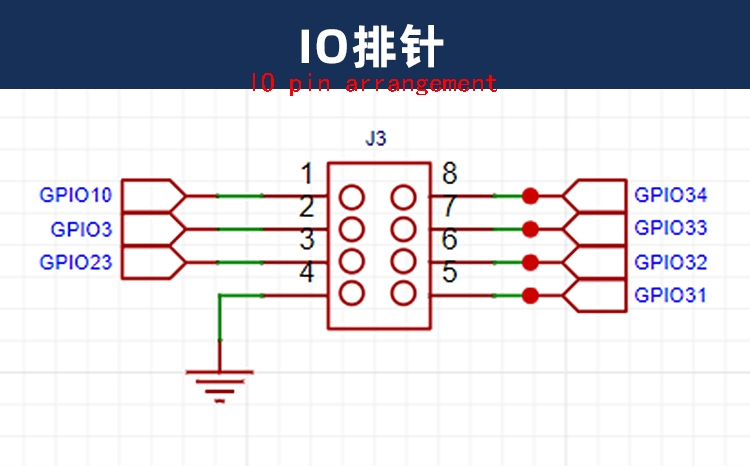

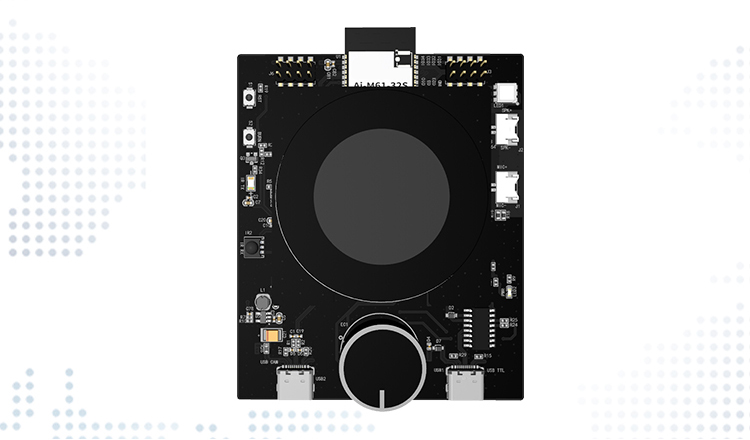

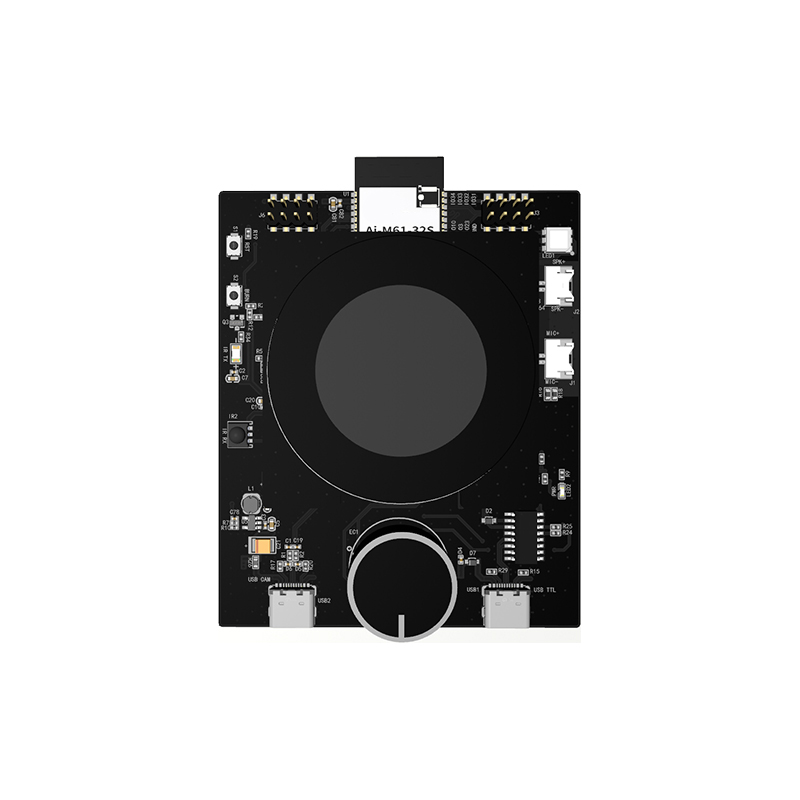

AiPi Knob is a rotary encoder driver board (referred to as a knob) that integrates a 1.28-inch circular screen, pin layout interface, rotary encoder, RGB lights, built-in audio, infrared emission and reception, download pin layout, 10 pin layout, serial port download USB interface, and USB interface. AiPi KNob has pre programmed the firmware and created four demonstration interfaces: washing machine interface, RGB light interface, TV control interface, and air conditioning control interface. The Ai-M61-32S module equipped with it has rich peripheral interfaces, including DVP, MJPEG, Display, Audiocodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.

Product Specifications
