Product Descriptions

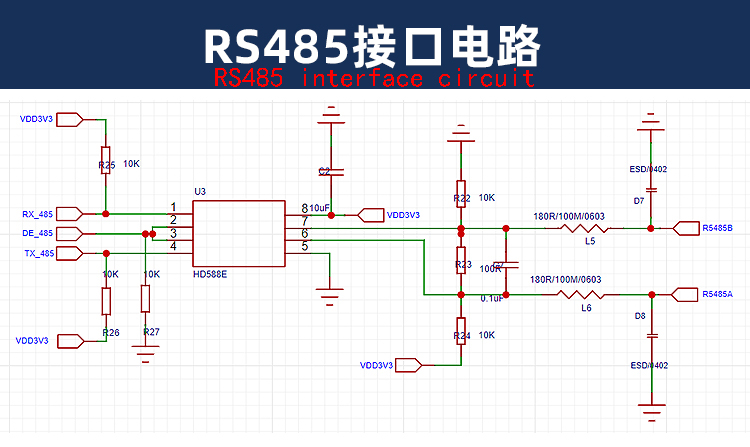

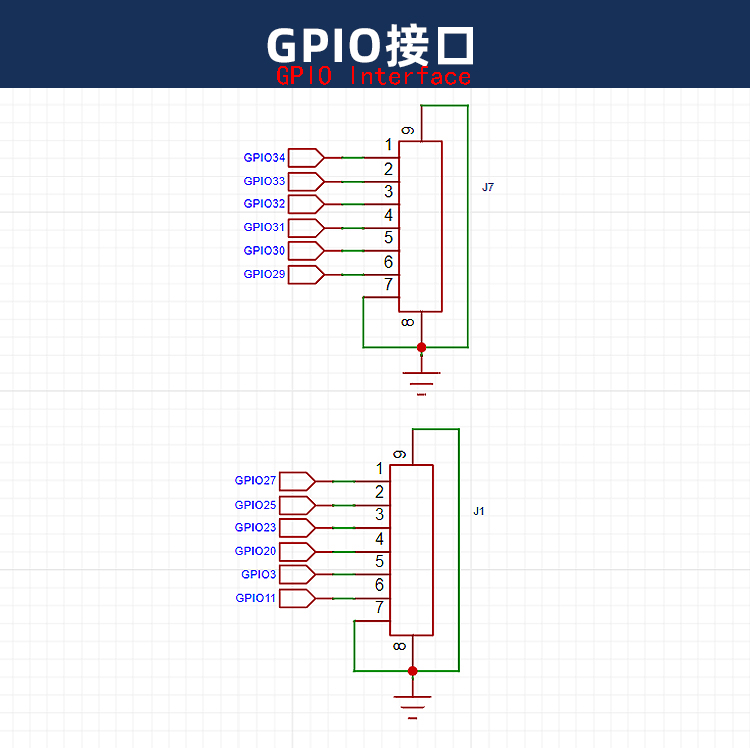

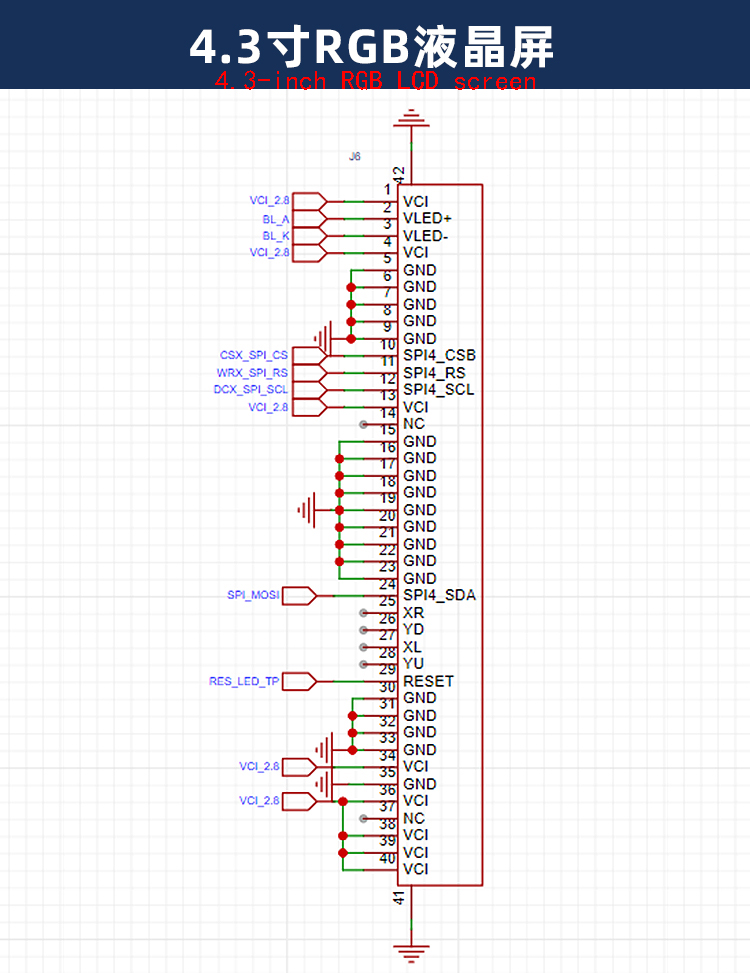

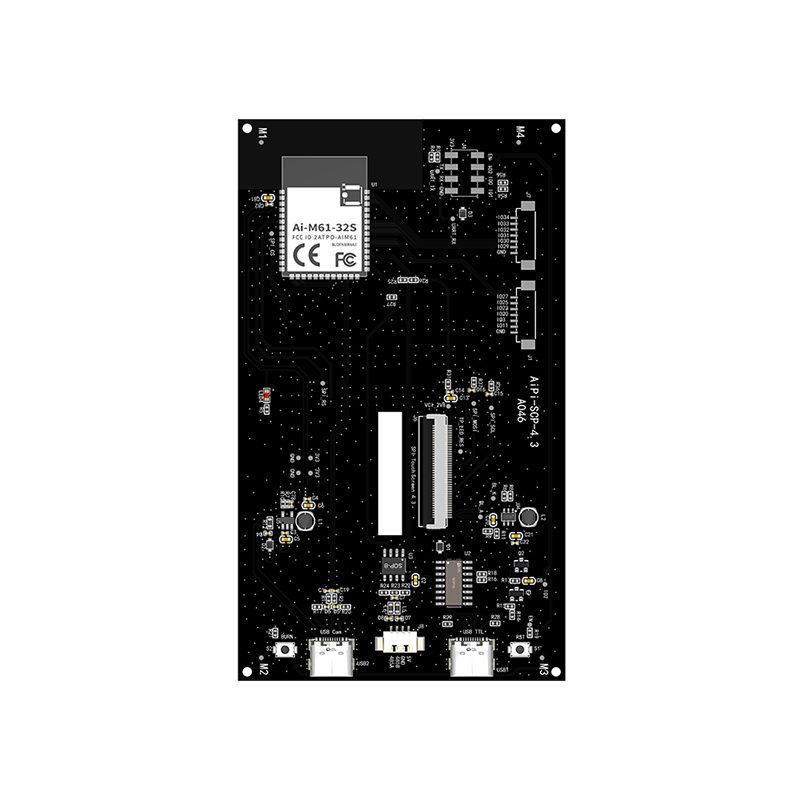

AiPi-SCP-4.3 is a screen driver development board that uses the Ai-M61-32S module as the control core. It is connected to a 4.3-inch RGB LCD screen through an SPI interface and driven by an M61 chip. It also has an external RS485 communication interface and provides 485 protocol communication function. The board is powered by a Type-C interface and the remaining IO ports are connected as GPI0 interfaces for easy expansion. AiPi-SCP-4.3 is equipped with a 4.3-inch screen driver at the factory, which can display the required information as a code wheel. The interface displayed on the screen can be changed by pressing buttons, making it suitable for applications of two wheeled vehicles such as electric vehicles or bicycles.

The Ai-M61-32S module equipped with it has rich peripheral interfaces, including DVP, MJPEG, Dispaly, Audiocodec, UsB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.

Product Specifications

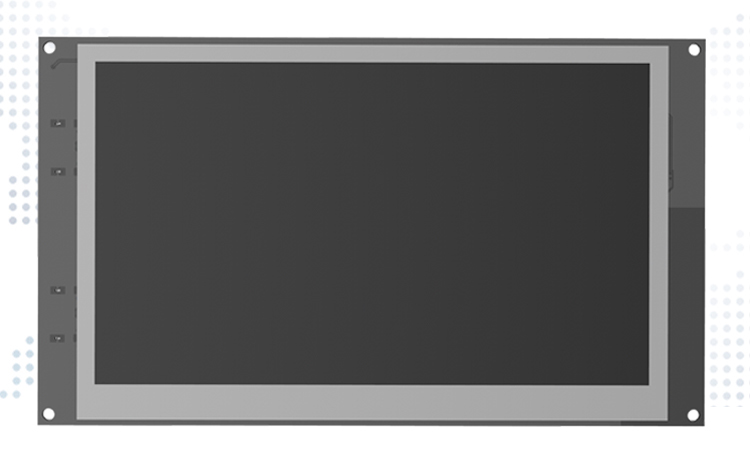

Product Show
