Product Descriptions

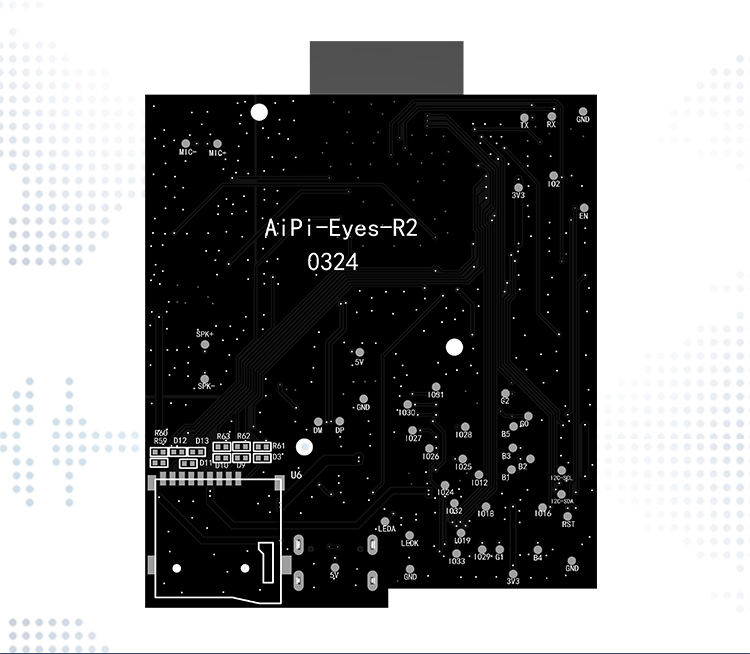

AiPi Eyes-R2 is a 4-inch RGB display driver board designed for Ai-M61-32S, with a display resolution of 480 * 480 pixels, supporting capacitive touch and USB camera access. AiPi Eyes-R2 adopts built-in CodeC and supports single channel audio output.

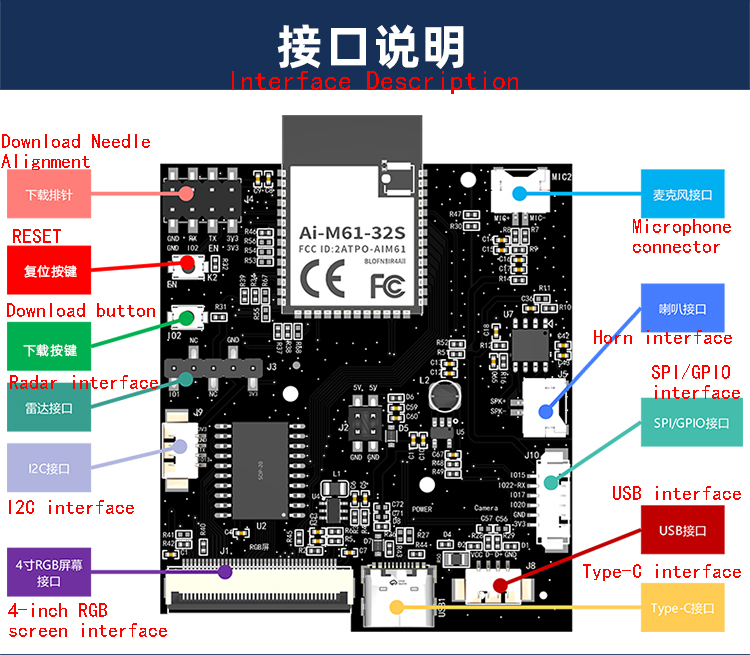

The Ai-M61-32S module it is equipped with supports WiFi6 and BLE5.3. It has rich peripheral interfaces, including DVP, MJPEG, Dispaly, Audiocodec, UsB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Integrated SPI screen interface, DVP camera interface, reserved TF card slot, and USB interface for connecting to USB camera.

Product Specifications

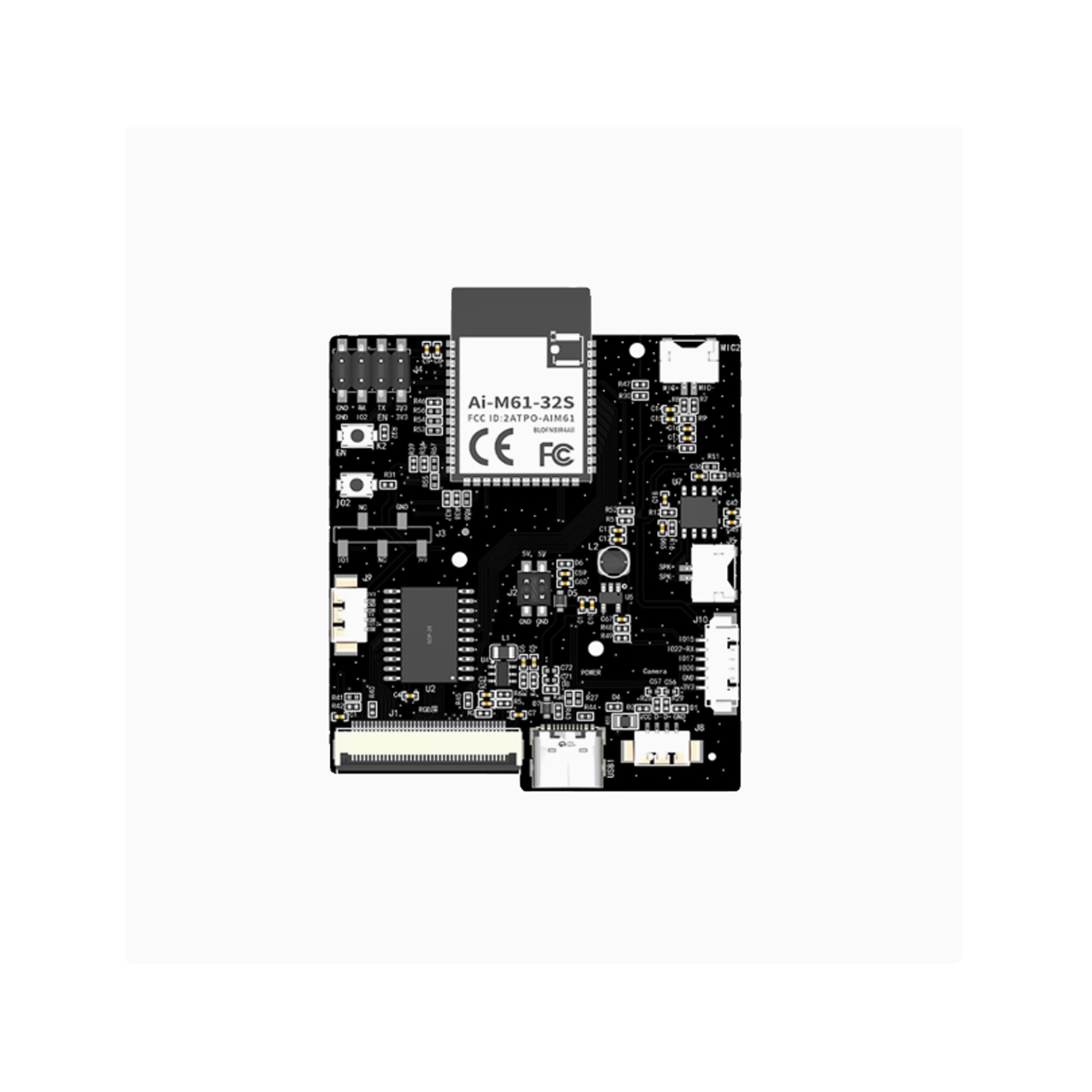

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
