Product Descriptions

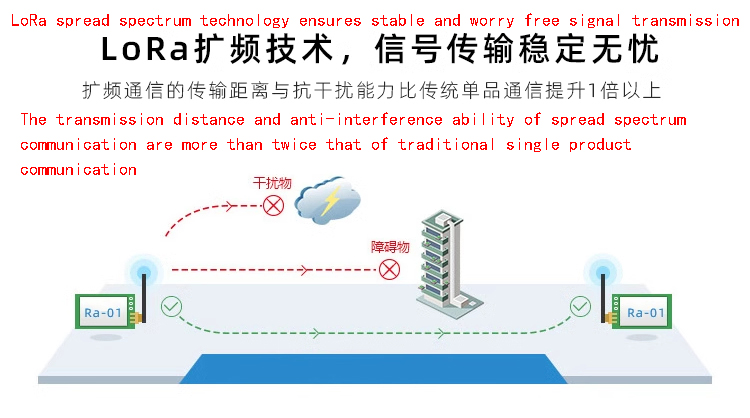

Functional features: Developed based on the SX1278 chip, it can be used for ultra long distance spread spectrum communication, compatible with FSK remote modulation and demodulation technology, and solves the problem that traditional wireless design solutions cannot simultaneously consider transmission distance, anti-interference, and power consumption. Suitable for wireless meter reading, building automation, security systems, and other scenarios.
Product Specifications
| 模组型号 Module model | Ra-01S |
| 模组封装 Module packaging | SMD-16 |
| 尺寸(mm) Size(mm) | 17*16*3.2(±0.2)MM |
| 通讯接口 Communication interface | SPI |
| 可编程比特率 Programmable Bit Rate | Up to 300Kbps |
| 频谱范围 Spectrum range | 410~525MHz |
| 天线形式 Antenna form | 兼容半孔/通孔焊盘(需焊接天线)/IPEX座子 Compatible with half hole/through-hole solder pads (requiring antenna soldering)/IPEX mounts |
| 最大发射功率 Maximum transmission power | +22dBm |
| 供电范围 Power supply range | 2.7V~3.6V，Typical value 3.3V, current greater than 200mA |
| 工作环境 Work environment | -40℃~85℃ |
| 存储环境 Storage environment | -40℃~125℃，<90%RH |

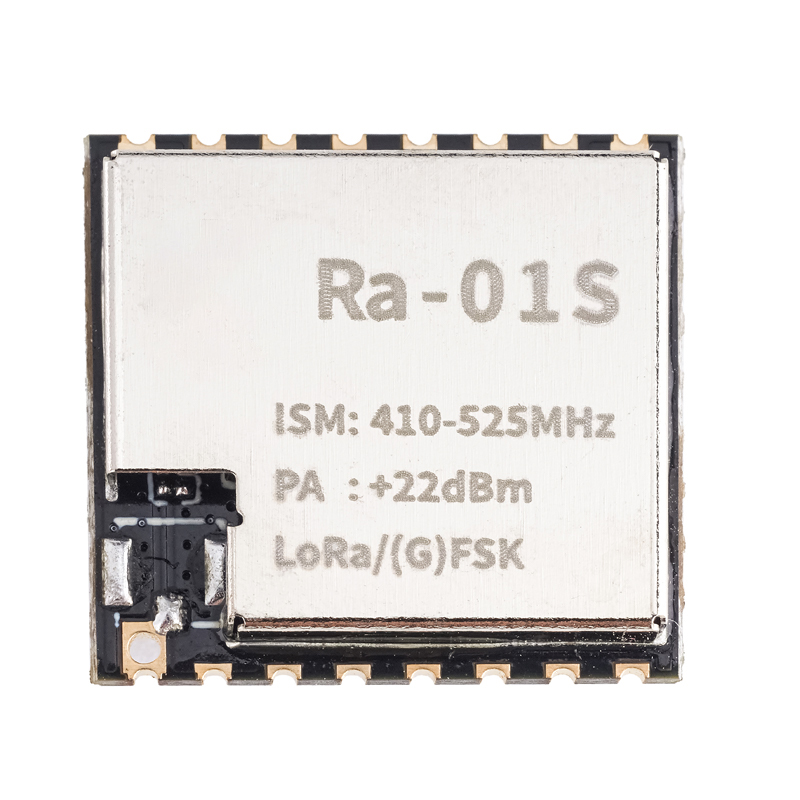

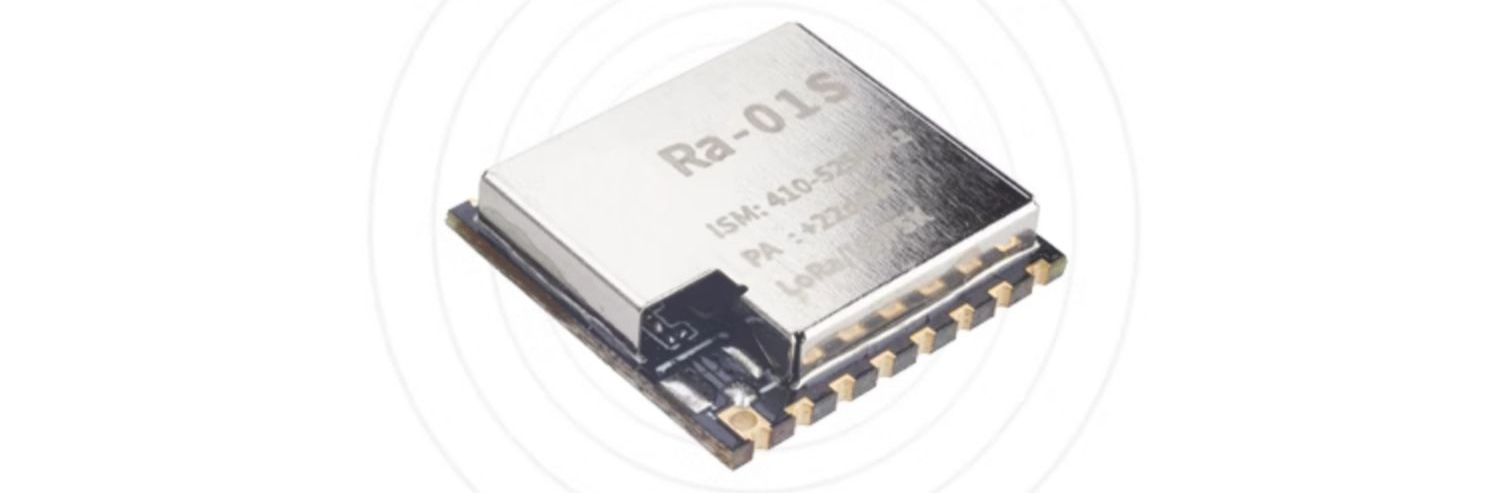

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
