LLCC68 chip LoRa wireless RF module SPI interface IPEX antenna Ra-01SC_各类模块

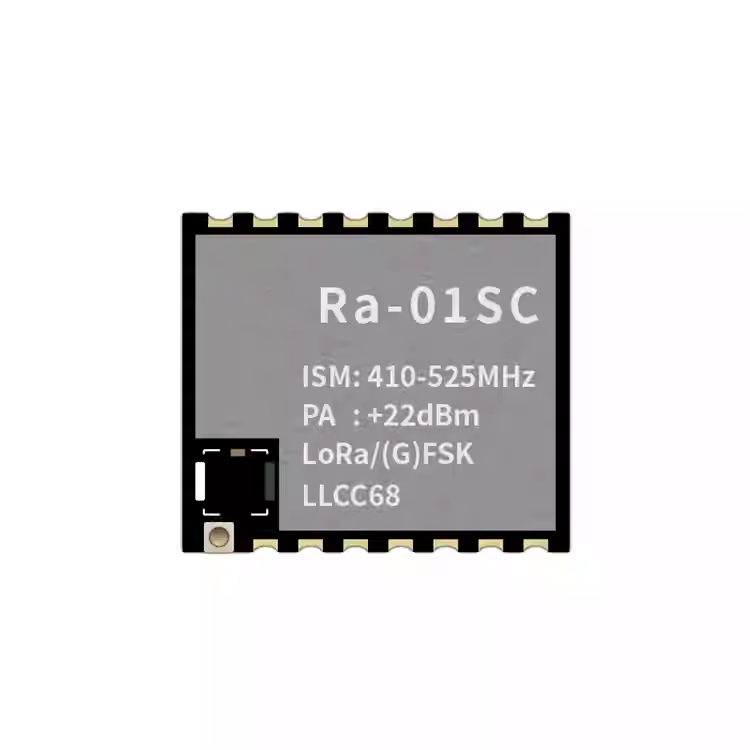

Product Descriptions

详情-12

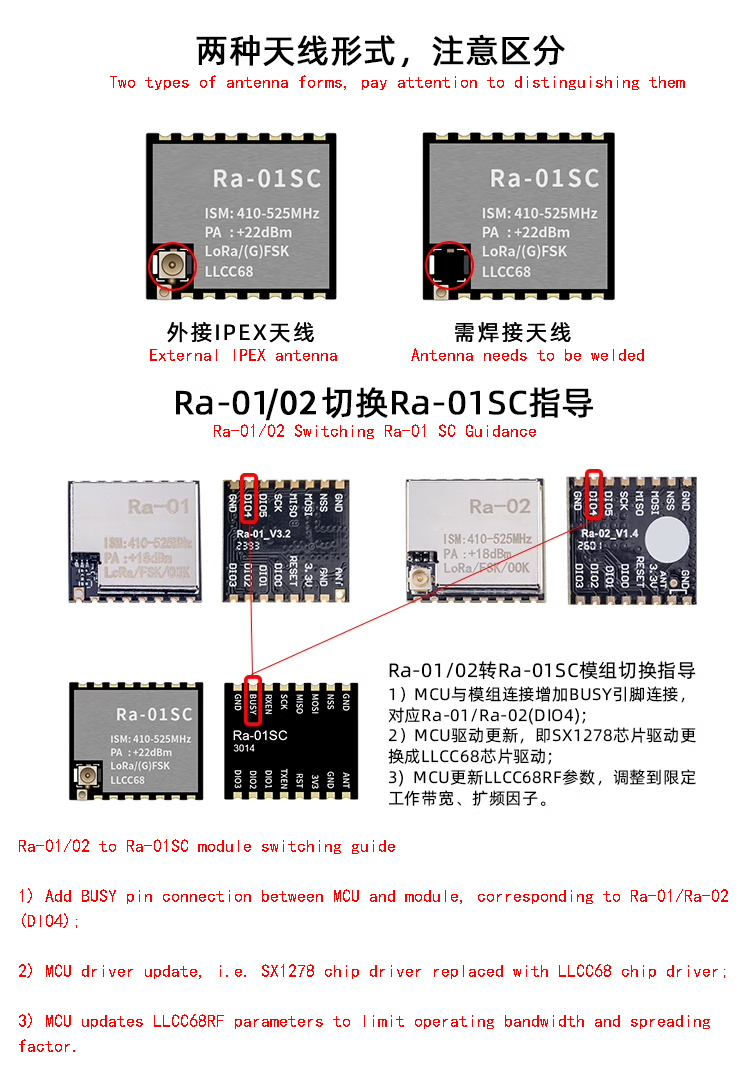

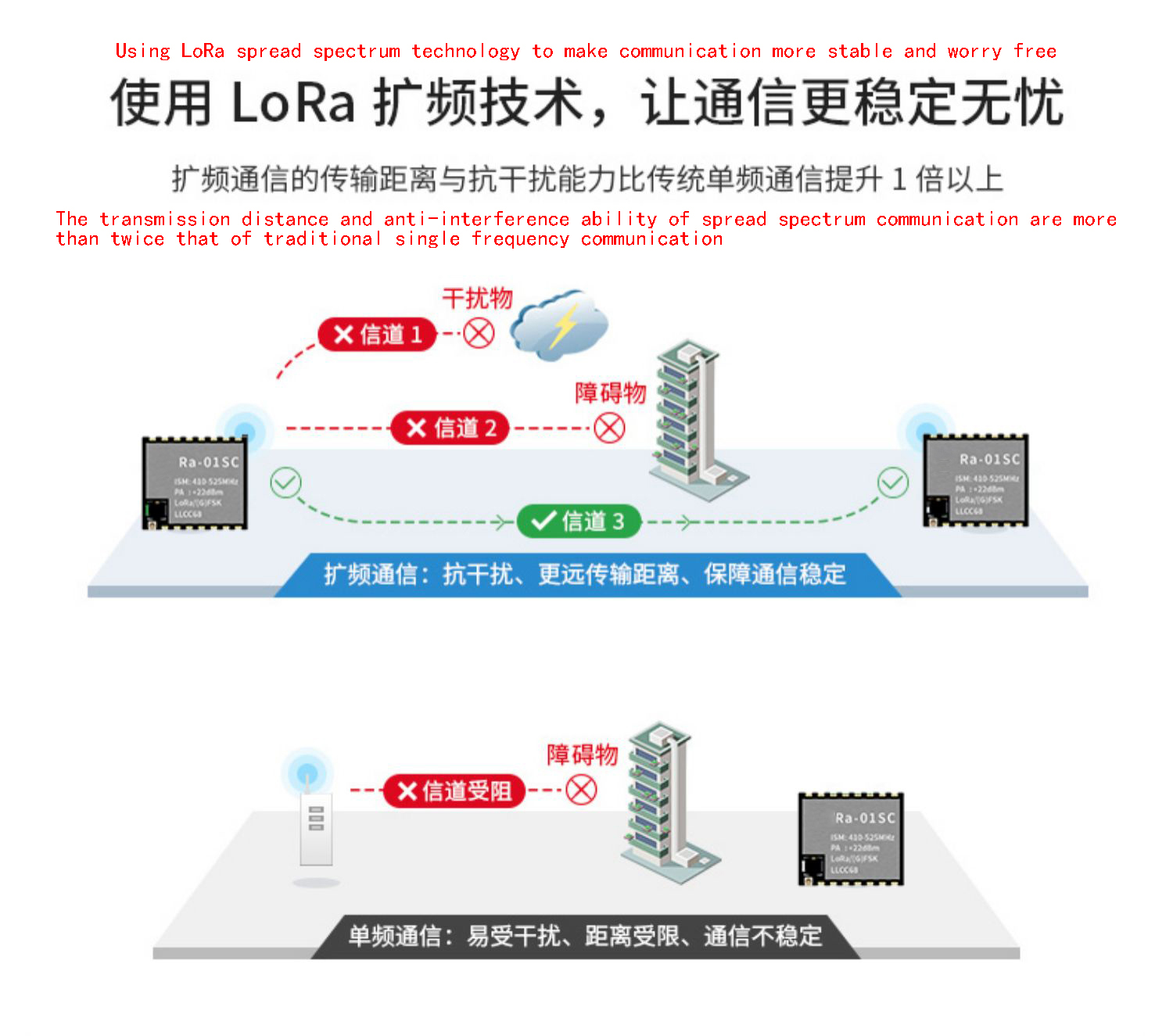

Functional features: Developed based on the LLCC68 chip, LLCC68 has high sensitivity exceeding -129dBm, power output of+22dBm, long transmission distance, and high reliability. The Ra-01SC module is mainly used for ultra long distance spread spectrum communication and is compatible with FSK remote modulation and demodulation technology, solving the problem that traditional wireless design solutions cannot simultaneously consider transmission distance, anti-interference, and power consumption. Suitable for wireless meter reading, building automation, security systems, and other scenarios.

详情-13

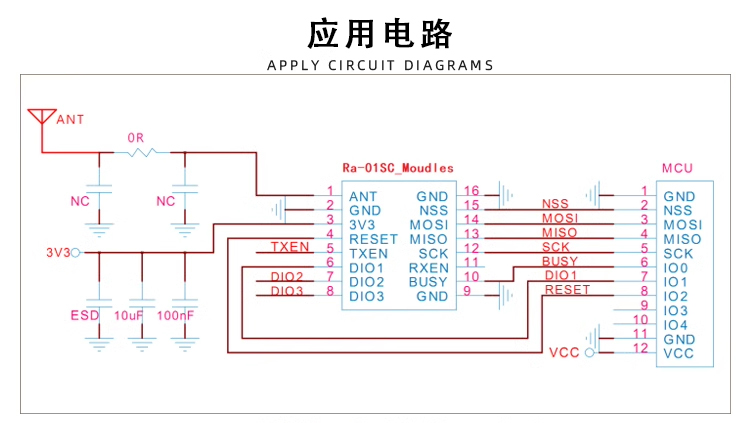

Product Specifications

模组型号 Module model	Ra-01SC
模组封装 Module packaging	SMD-16
尺寸(mm) Size(mm)	17163.2(±0.2)MM
通讯接口 Communication interface	SPI
可编程比特率 Programmable Bit Rate	Up to 300Kbps
频谱范围 Spectrum range	410~525MHz

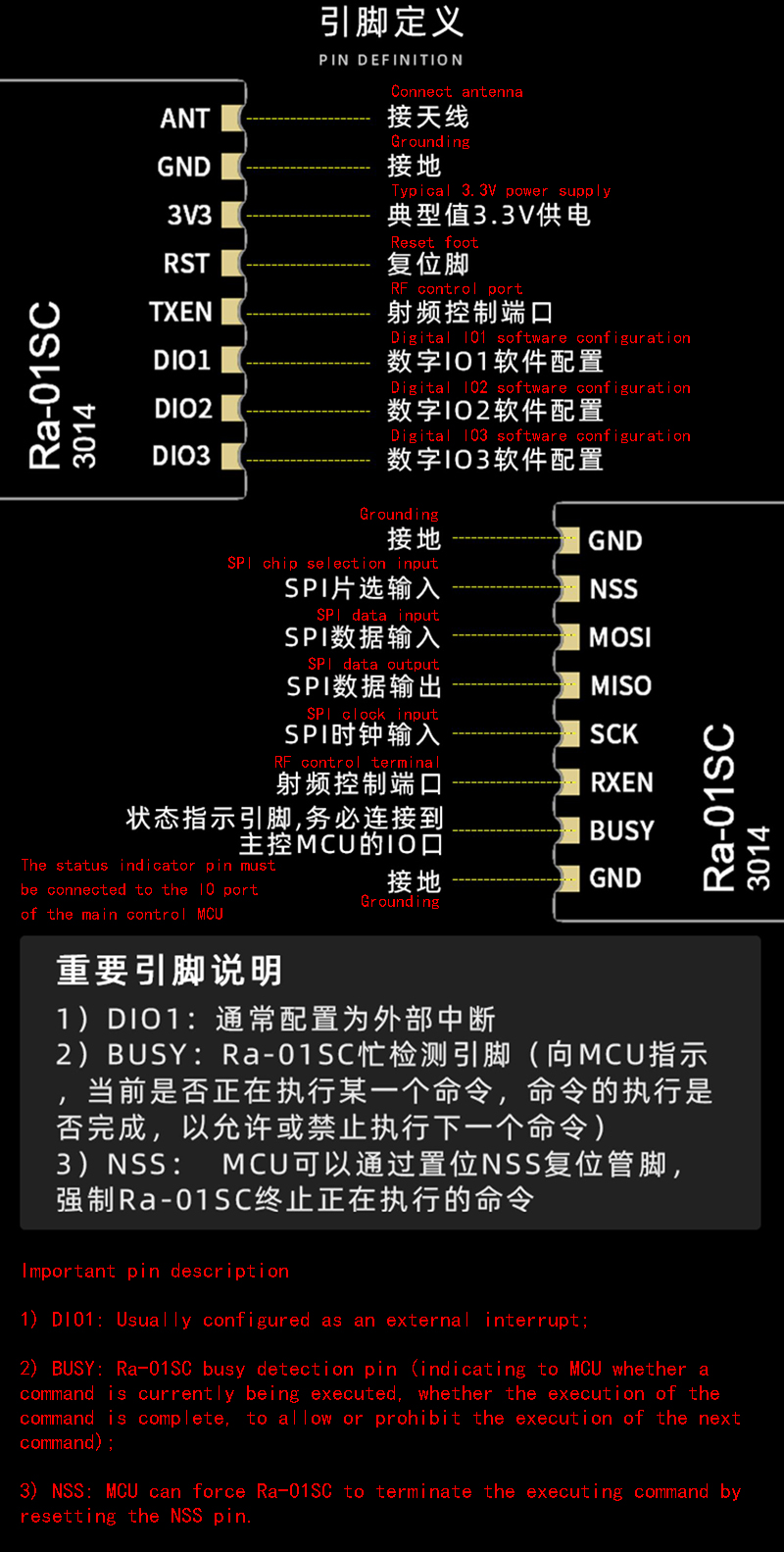

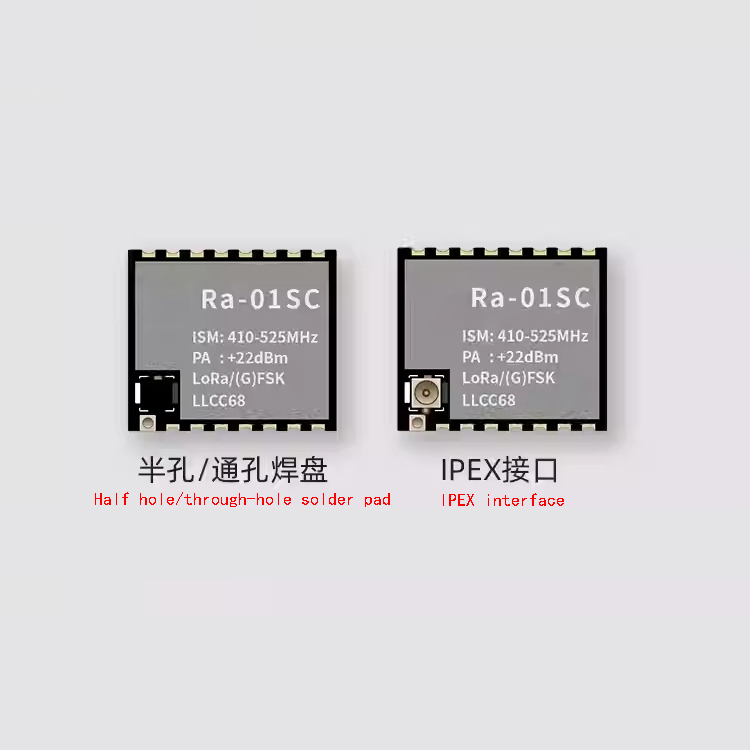

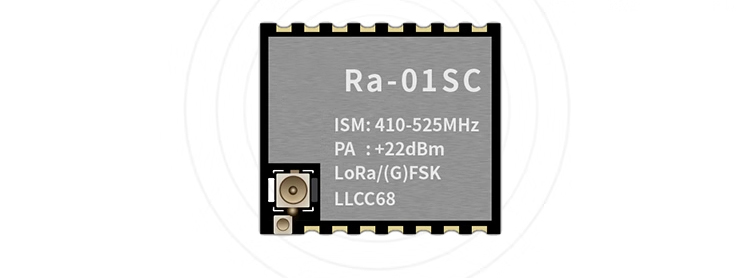

天线形式 Antenna form	兼容半孔/通孔焊盘(需焊接天线)/IPEX座子 Compatible with half hole/through-hole solder pads (requiring antenna soldering)/IPEX mounts
最大发射功率 Maximum transmission power	+22dBm
供电范围 Power supply range	2.7V~3.6V，Typical value 3.3V, current greater than 200mA
工作环境 Work environment	-40℃~85℃
存储环境 Storage environment	-40℃~125℃，<90%RH
传输距离 Distance	空旷场地搭配弹簧天线，实测2.8km Open space with spring antenna, tested 2.8km
晶振频率 Crystal frequency	32MHZ
