Product Descriptions

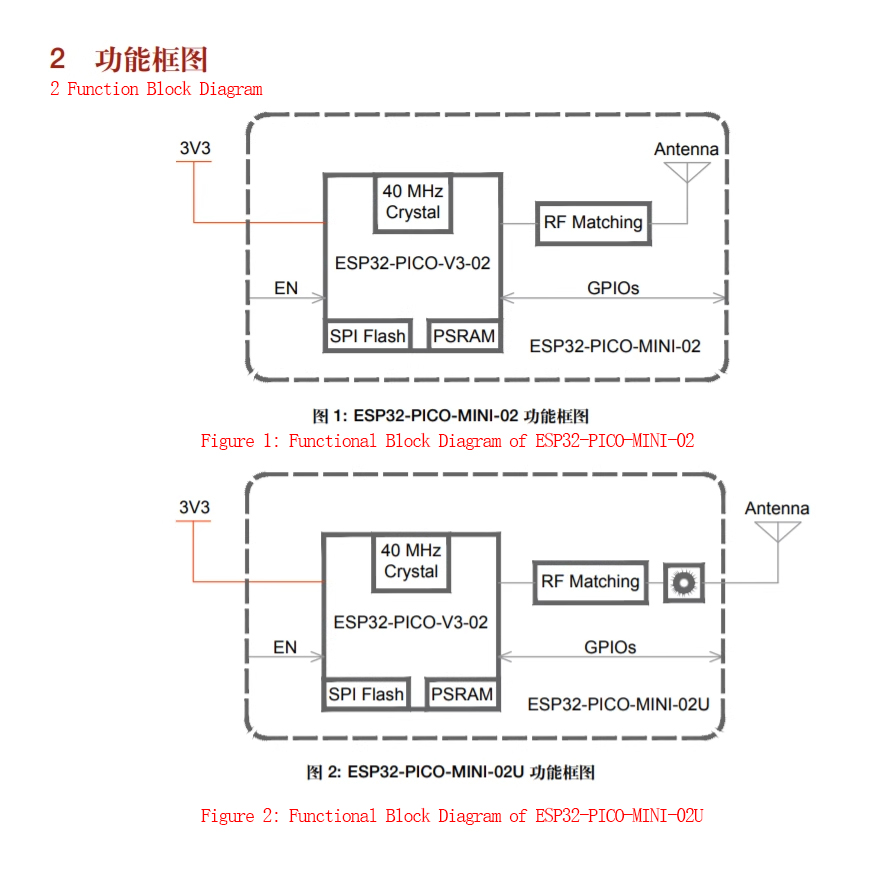

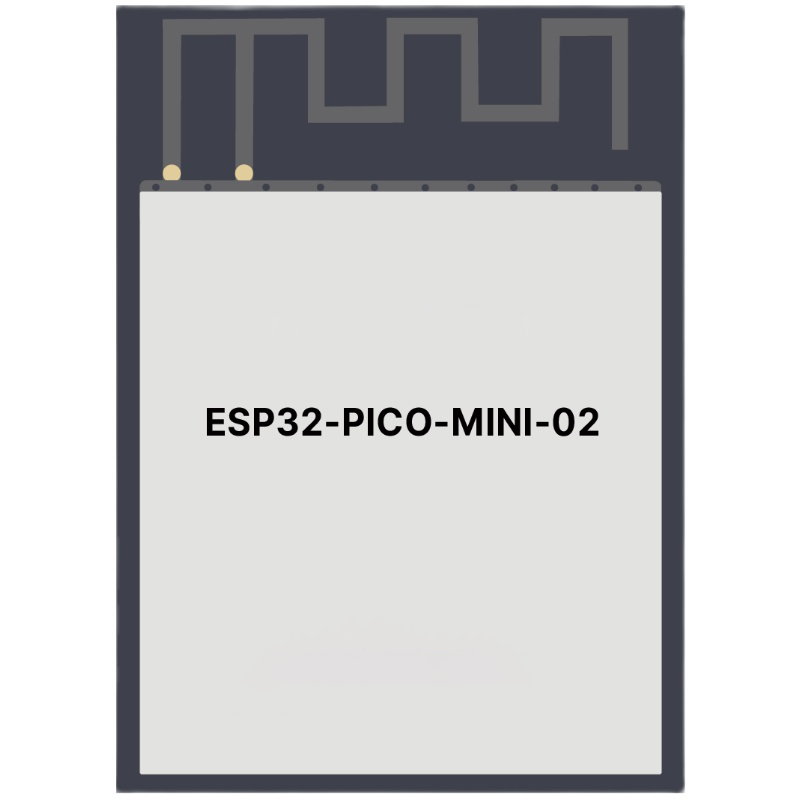

The ESP32-PICO-MINI-02 uses a PCB board mounted antenna, while the ESP32-PICO-MINI-02U uses a connector to connect to an external antenna.

The chips used in ESP32-PICO-MIN1-02 and ESP32-PICO-MIN1-02U are ESP32-PICO-V3-02 * from the ESP32 series. The ESP32PICO-V3-02 chip has the characteristics of scalability and adaptability. Two CPU cores can be controlled separately. The adjustment range of CPU clock frequency is 80MHz to 240 MHz. Users can turn off the power of the CPU and use low-power coprocessors to monitor the status changes of peripherals or whether certain analog quantities exceed the threshold.

ESP32-PICO-V3-02 also integrates a variety of peripherals, including SD card interface, capacitive touch sensor ADC、DAC、 Dual line automotive interface, Ethernet interface, high-speed SPI, UART, I2S, I2C, etc.

Product Features

CPU and on-chip memory

• Built in ESP32-PICO-V3-02 chip, Xtensa dual core 32-bit LX6 microprocessor, supporting clock frequencies up to 240 MHz

• 448 KB ROM

• 520 KB SRAM

• 16 KB RTC SRAM

• 8 MB SPl flash

• 2 MB PSRAM

Wi-Fi

• 802.11 b/g/n

• Data rates up to 150 Mbps in 802.11n mode

• Support A-MPDU and A-MSDU aggregation

• 0.4 μ S protection interval

• Working channel center frequency range: 2412~2484 MHz

Bluetooth

• Bluetooth v4.2 BR/EDR and Low Energy Bluetooth standards

• Class-1, Class-2, and Class-3 transmitters

• AFH

• CVSD and SBC

Peripherals

• SD card UART、SPI、SDIO、I2C、LED PWM、 Motor PWM, I2S, IR, pulse counter GPIO、 Capacitive touch sensor ADC、DAC、 Dual Line Automotive Interface (TWAI) ®, Compatible with ISO11898-1 and Ethernet interface

Product Applications

• Universal low-power IoT sensor hub

• Universal low-power IoT data logger

• Camera video streaming transmission

• OTT TV box/set-top box equipment

• smart building

• Industrial Automation

• Smart Agriculture

• Audio equipment
