Product Descriptions

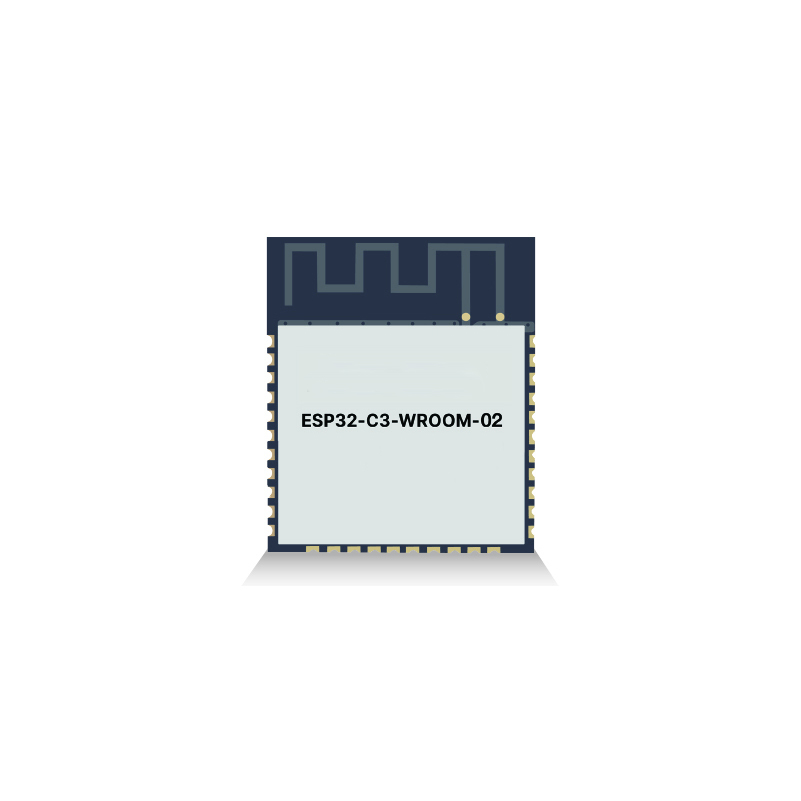

ESP32-C3-WROOM-02 and ESP32-C3-WROOM-02U are two general-purpose Wi-Fi and Bluetooth LE modules. The rich set of peripherals and high performance make the two modules an ideal choice for smart homes, industrial automation, health care, consumer electronics, etc.

ESP32-C3-WROOM-02 and ESP32-C3-WROOM-02U both feature an external SPI flash. ESP32-C3-WROOM-02 comes with a on-board PCB antenna. ESP32-C3-WROOM-02U comes with a connector for an external antenna.

Product Features

CPU and on-chip memory

• ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz

• 384 KB ROM

• 400 KB SRAM (16 KB for cache)

• 8 KB SRAM in RTC

Wi-Fi

• IEEE 802.11b/g/n-compliant

• Center frequency range of operating channel: 2412 ~ 2484 MHz

• Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band

• 1T1R mode with data rate up to 150 Mbps

• Wi-Fi Multimedia (WMM)

• TX/RX A-MPDU, TX/RX A-MSDU

• Immediate Block ACK

• Fragmentation and defragmentation

• Transmit opportunity (TXOP)

• Automatic Beacon monitoring (hardware TSF)

• 4 × virtual Wi-Fi interfaces

• Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode Note that when ESP32-C3 series scans in Station mode, the SoftAP channel will change along with the Station channel

• 802.11mc FTM

Bluetooth®

• Bluetooth LE: Bluetooth 5, Bluetooth mesh

• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Advertising extensions

• Multiple advertisement sets

• Channel selection algorithm #2

• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals

• Up to 15 GPIOs

– 3 strapping GPIOs

• SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers

Integrated Components on Module

• 40 MHz crystal oscillator

• SPI flash

Product Applications

• Smart Home

• Industrial Automation

• Health Care

• Consumer Electronics

• Smart Agriculture

• POS Machines

• Service Robot

• Audio Devices

• Generic Low-power IoT Sensor Hubs

• Generic Low-power IoT Data Loggers
