Product Descriptions

ESP32-S3-WROOM-1 and ESP32-S3-WROOM-1U are two powerful, generic Wi-Fi + Bluetooth LE MCU modules that are built around the ESP32-S3 series of SoCs. On top of a rich set of peripherals, the acceleration for neural network computing and signal processing workloads provided by the SoC make the modules an ideal choice for a wide variety of application scenarios related to AI and Artificial Intelligence of Things (AIoT), such as wake word detection, speech commands recognition, face detection and recognition, smart home, smart appliances, smart control panel, smart speaker, etc. ESP32-S3-WROOM-1 comes with a PCB antenna.

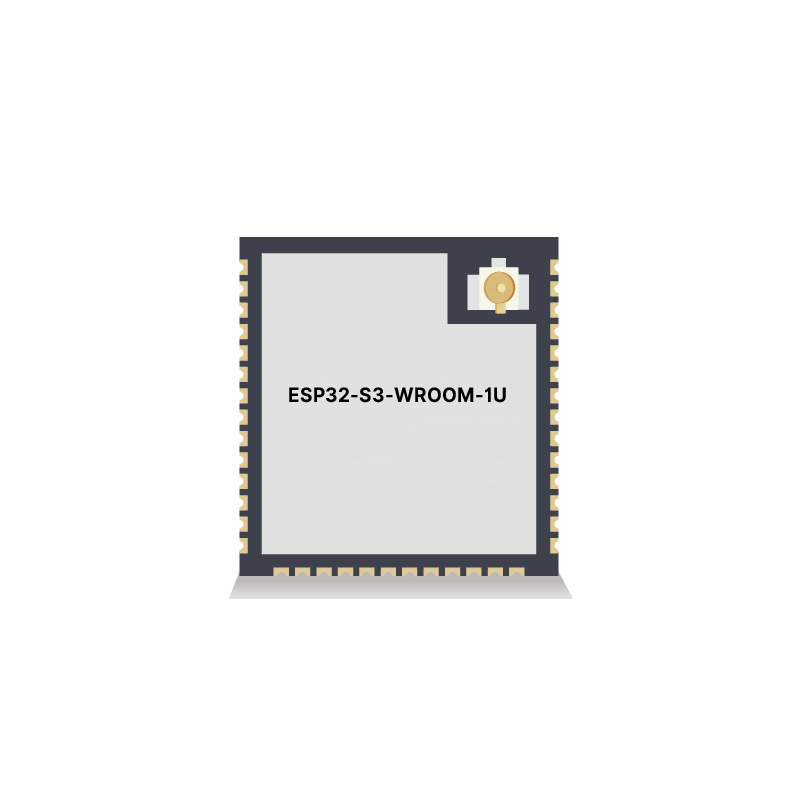

ESP32-S3-WROOM-1U comes with an external antenna connector. A wide selection of module variants are available for customers as shown in Table 1 and 2. Among them, H4 series modules operate at –40 ~ 105 °C ambient temperature, R8 and R16V series modules operate at –40 ~ 65 °C ambient temperature, and other module variants operate at –40 ~ 85 °C ambient temperature. For R8 and R16V series modules with Octal SPI PSRAM, if the PSRAM ECC function is enabled, the maximum ambient temperature can be improved to 85 °C, while the usable size of PSRAM will be reduced by 1/16.

Product Features

CPU and on-chip memory

• ESP32-S3 series of SoCs embedded, Xtensa® dual-core 32-bit LX7 microprocessor (with single precision FPU), up to 240 MHz

• 384 KB ROM

• 512 KB SRAM

• 16 KB SRAM in RTC

• Up to 16 MB PSRAM

Wi-Fi

• 802.11b/g/n

• Bit rate: 802.11n up to 150 Mbps

• A-MPDU and A-MSDU aggregation

• 0.4 µs guard interval support

• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth®

• Bluetooth LE: Bluetooth 5, Bluetooth mesh

• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Advertising extensions

• Multiple advertisement sets

• Channel selection algorithm #2

• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals

• 36 GPIOs

– 4 strapping GPIOs

• SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, full-speed USB 2.0 OTG, USB Serial/JTAG controller, MCPWM, SDIO host controller, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module

• 40 MHz crystal oscillator

• Up to 16 MB Quad SPI flash

Product Applications

• Smart Home

• Industrial Automation

• Health Care

• Consumer Electronics

• Smart Agriculture

• POS Machines

• Service Robot

• Audio Devices

• Generic Low-power IoT Sensor Hubs

• Generic Low-power IoT Data Loggers

• Cameras for Video Streaming

• USB Devices

• Speech Recognition

• Image Recognition

• Wi-Fi + Bluetooth Networking Card

• Touch and Proximity Sensing
