Product Descriptions

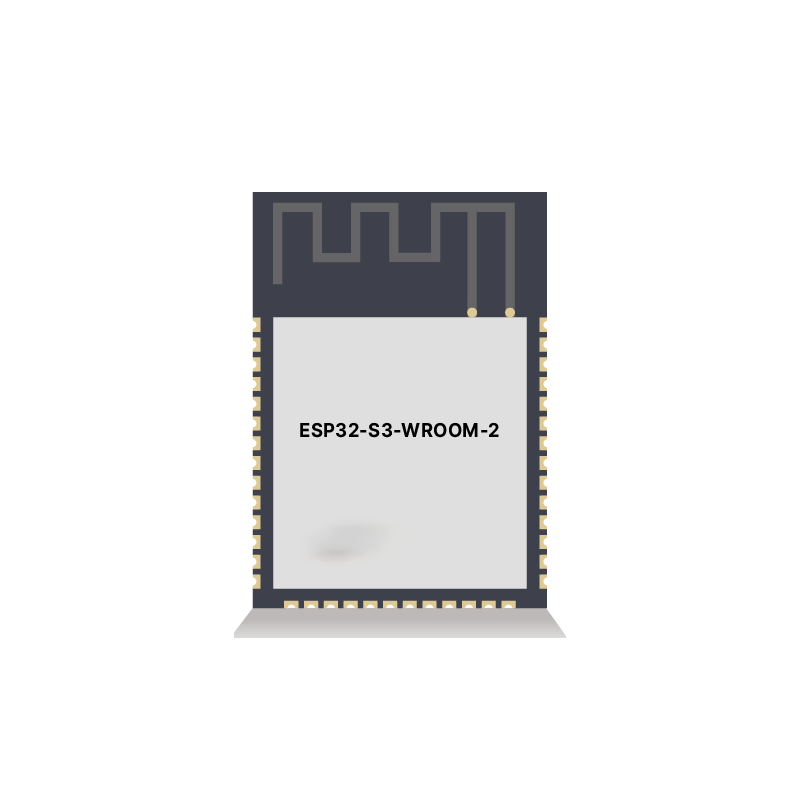

ESP32-S3-WROOM-2 is a powerful, generic Wi-Fi + Bluetooth LE MCU module that has a rich set of peripherals. It provides acceleration for neural network computing and signal processing workloads. It is an ideal choice for a wide variety of application scenarios related to AI and Artificial Intelligence of Things (AIoT), such as wake word detection and speech commands recognition, face detection and recognition, smart home, smart appliances, smart control panel, smart speaker, etc.

ESP32-S3-WROOM-2 comes with a PCB antenna. It has ESP32-S3R8V or ESP32-S3R16V SoC embedded. A selection of module variants are available for customers with flash memory of 16/32 MB and PSRAM memory of 8/16 MB. Please note that if the PSRAM ECC function is enabled, the maximum ambient temperature of the modules can be improved to 85 °C, while the usable size of PSRAM will be reduced by 1/16.

Product Features

CPU and on-chip memory

• ESP32-S3 SoC embedded, Xtensa® dual-core 32-bit LX7 microprocessor (with single precision FPU), up to 240 MHz

• 384 KB ROM

• 512 KB SRAM

• 16 KB SRAM in RTC

• Up to 16 MB PSRAM

Wi-Fi

• 802.11b/g/n

• Bit rate: 802.11n up to 150 Mbps

• A-MPDU and A-MSDU aggregation

• 0.4 µs guard interval support

• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth®

• Bluetooth LE: Bluetooth 5, Bluetooth mesh

• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Advertising extensions

• Multiple advertisement sets

• Channel selection algorithm #2

• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals

• 33 GPIOs

– 4 strapping GPIOs

• SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, full-speed USB 2.0 OTG, USB Serial/JTAG controller, MCPWM, SDIO host controller, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components on Module

• 40 MHz crystal oscillator

• Up to 32 MB Octal SPI flash

Product Applications

• Smart Home

• Industrial Automation

• Health Care

• Consumer Electronics

• Smart Agriculture

• POS Machines

• Service Robot

• Audio Devices

• Generic Low-power IoT Sensor Hubs

• Generic Low-power IoT Data Loggers

• Cameras for Video Streaming

• USB Devices

• Speech Recognition

• Image Recognition

• Wi-Fi + Bluetooth Networking Card

• Touch and Proximity Sensing
