Product Descriptions

ESP32-H2-MINI-1 and ESP32-H2-MINI-1U are two powerful, generic Bluetooth® Low Energy and IEEE 802.15.4 combo module that have a rich set of peripherals. They are an ideal choice for a wide variety of application scenarios related to Internet of Things (IoT), such as embedded systems, smart home, wearable electronics, etc.

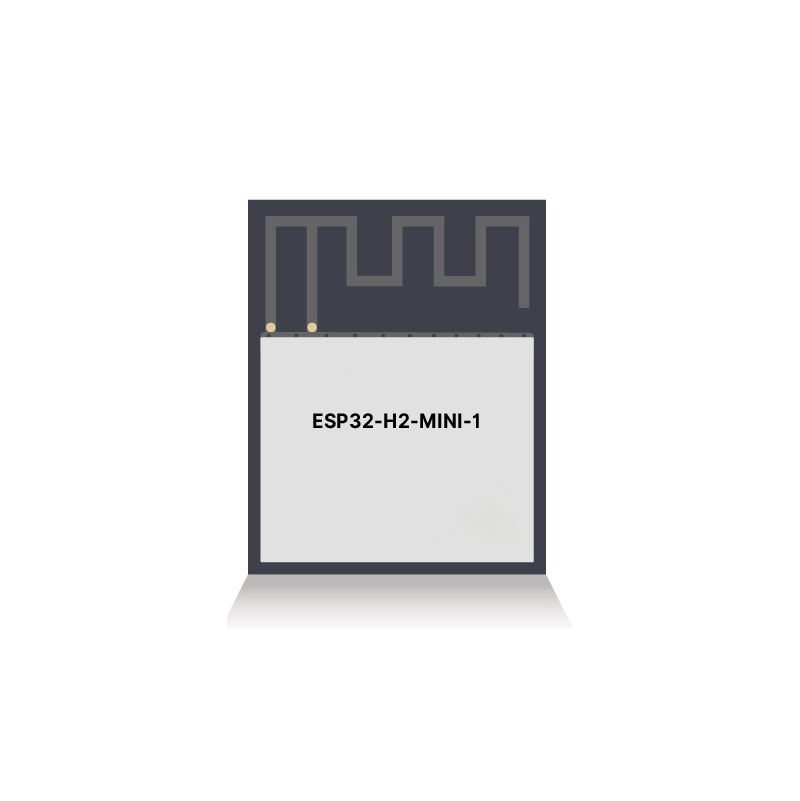

ESP32-H2-MINI-1 comes with a PCB antenna. ESP32-H2-MINI-1U comes with a connector for an external antenna.

Product Features

CPU and on-chip memory

• ESP32-H2 embedded, RISC-V single-core 32-bit microprocessor, up to 96 MHz

• 128 KB ROM

• 320 KB SRAM

• 4 KB LP Memory

• 2 MB or 4 MB in-package flash

Bluetooth®

• Bluetooth Low Energy (Bluetooth 5.3 certified)

• Bluetooth mesh

• Bluetooth Low Energy long range (Coded PHY, 125 Kbps and 500 Kbps)

• Bluetooth Low Energy high speed (2 Mbps)

• Bluetooth Low Energy advertising extensions and multiple advertising sets

• Simultaneous operation of Broadcaster, Observer, Central, and Peripheral devices

• Multiple connections

• LE power control

Peripherals

• Up to 19 GPIOs

– 3 strapping pins

• I2C, I2S, SPI, UART, ADC, LED PWM, ETM, GDMA, PCNT, PARLIO, RMT, TWAI®, MCPWM, USB Serial/JTAG, temperature sensor, general-purpose timers, system timer, watchdog timer

Integrated Components on Module

• 32 MHz crystal oscillator

Antenna Options

• ESP32-H2-MINI-1: On-board PCB antenna

• ESP32-H2-MINI-1U: External antenna via a connector

Operating Conditions

• Operating voltage/Power supply: 3.0∼3.6 V

• Operating ambient temperature: 40∼105 °C

Product Applications

• Smart Home

• Industrial Automation

• Health Care

• Consumer Electronics

• Smart Agriculture

• Matter Solutions

• Wearables

• Service Robot

• Generic Low-power IoT Sensor Hubs

• Generic Low-power IoT Data Loggers
