Product Descriptions

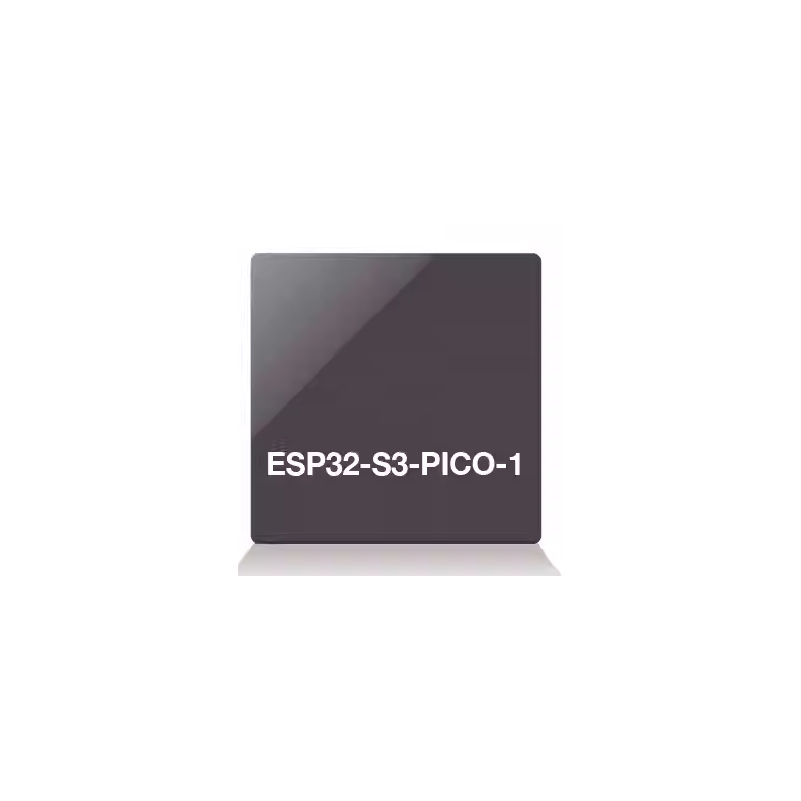

ESP32-S3-PICO-1 is a System-in-Package (SiP) device that is based on ESP32-S3 with integrated 2.4 GHz Wi-Fi and Bluetooth® Low Energy (Bluetooth LE). It integrates an 8 MB SPI flash and an up to 8 MB SPI PSRAM.

ESP32-S3-PICO-1 provides complete Wi-Fi and Bluetooth® functionalities and is designed with the TSMC low-power 40 nm technology. It seamlessly integrates all peripheral components, including a crystal oscillator, decoupling capacitors, SPI flash/PSRAM, and RF matching links, within a single package. As a result, there is no need for additional peripheral components, simplifying the soldering and testing processes. It also streamlines the supply chain and enhances control and management efficiency.

With its ultra-small size, robust performance, and low-energy consumption, ESP32-S3-PICO-1 is well suited for any space-limited or battery-operated applications, such as wearable electronics, medical equipment, sensors and other IoT products.

At the core of ESP32-S3-PICO-1 is the ESP32-S3 chip, a low-power MCU-based system on a chip (SoC) with integrated 2.4 GHz Wi-Fi and Bluetooth® Low Energy (Bluetooth LE). It consists of high-performance dual-core microprocessor (Xtensa® 32-bit LX7), a low-power coprocessor, a Wi-Fi baseband, a Bluetooth LE baseband, RF module, and numerous peripherals.

Product Features

CPU and Memory

• ESP32-S3 SoC embedded, Xtensa® dual-core 32-bit LX7 microprocessor (with single precision FPU), up to 240 MHz

• 384 KB ROM

• 512 KB SRAM

• 16 KB SRAM in RTC

Wi-Fi

• 802.11b/g/n

• Bit rate: 802.11n up to 150 Mbps

• TX/RX A-MPDU, TX/RX A-MSDU

• 0.4 µs guard interval support

• Center frequency range of operating channel: 2412 ~ 2484 MHz

Bluetooth®

• Bluetooth LE: Bluetooth 5, Bluetooth mesh

• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Advertising extensions

• Multiple advertisement sets

• Channel selection algorithm #2

• Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

Peripherals

• GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SD/MMC host, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Integrated Components

• 40 MHz crystal oscillator

• 8 MB Quad SPI flash

• Up to 8 MB PSRAM

Operating Conditions

• Operating voltage/Power supply: 3.0 ~ 3.6 V

• Operating ambient temperature:

– ESP32-S3-PICO-1-N8R2: –40 ~ 85 °C

– ESP32-S3-PICO-1-N8R8: –40 ~ 65 °C

Product Applications

• Generic Low-power IoT Sensor Hub

• Generic Low-power IoT Data Loggers

• Cameras for Video Streaming

• Over-the-top (OTT) Devices

• USB Devices

• Speech Recognition

• Image Recognition

• Mesh Network

• Home Automation

• Smart Building

• Industrial Automation

• Smart Agriculture

• Audio Applications

• Health Care Applications

• Wi-Fi-enabled Toys

• Wearable Electronics

• Retail & Catering Applications
