Product Descriptions

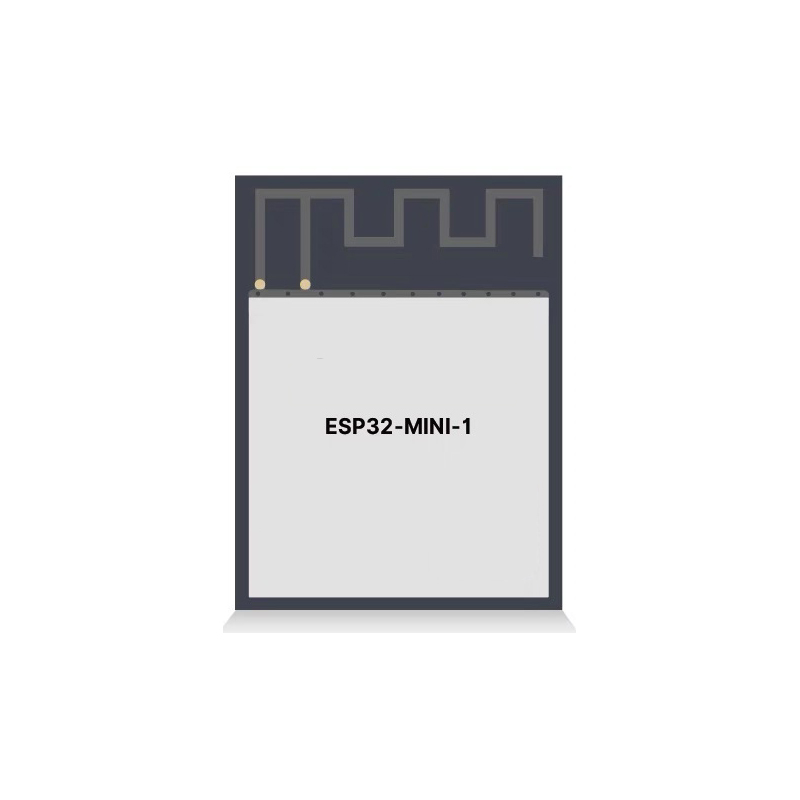

ESP32-MINI-1 and ESP32-MINI-1U are highly-integrated, small-sized Wi-Fi + Bluetooth + Bluetooth LE MCU modules that have a rich set of peripherals. The modules are ideal choices for a wide variety of IoT applications, ranging from home automation, smart building, consumer electronics to industrial control, especially suitable for applications within a compact space, such as bulbs, switches and sockets.

ESP32-MINI-1 comes with an on-board PCB antenna, and ESP32-MINI-1U with a connector for external antenna. They both feature a 4 MB flash integrated in the chip’s package.

Both ESP32-MINI-1 and ESP32-MINI-1U come in two versions:

• 85 °C version

• 105 °C version

Product Features

CPU and On-Chip Memory

• ESP32-U4WDH embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz

• 448 KB ROM • 520 KB SRAM

• 16 KB SRAM in RTC

• 4 MB SPI flash

Wi-Fi

• 802.11b/g/n

• Bit rate: 802.11n up to 150 Mbps

• A-MPDU and A-MSDU aggregation

• 0.4 µs guard interval support

• Center frequency range of operating channel: 2412 ~ 2484 MHz

Peripherals

• Up to 28 GPIOs

– 5 strapping GPIOs

– 6 GPIOs used for in-package flash

– 6 input-only GPIOs

• SD card, UART, SPI, SDIO, I2C, LED PWM, motor PWM, I2S, infrared remote controller, pulse counter, GPIO, touch sensor, ADC, DAC, Ethernet, TWAI® (compatible with ISO 11898-1, i.e. CAN Specification 2.0)

Integrated Components on Module

• 40 MHz crystal oscillator

Antenna Options

• ESP32-MINI-1: On-board PCB antenna

• ESP32-MINI-1U: external antenna via a connector

Product Applications

• Smart Home

• Industrial Automation

• Health Care

• Consumer Electronics

• Smart Agriculture

• POS Machines

• Service Robot

• Audio Devices

• Generic Low-power IoT Sensor Hubs

• Generic Low-power IoT Data Loggers

• Cameras for Video Streaming

• Speech Recognition

• Image Recognition

• SDIO Wi-Fi + Bluetooth Networking Card
