Product Descriptions

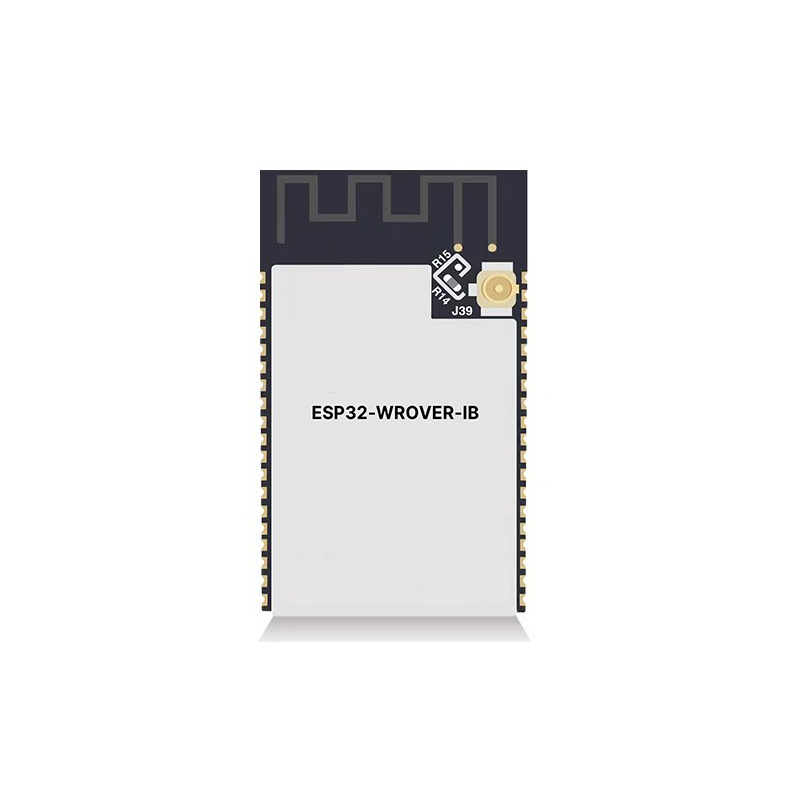

ESP32-WROVER-B and ESP32-WROVER-IB are two powerful, generic Wi-Fi + Bluetooth® + Bluetooth LE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
ESP32-WROVER-B comes with a PCB antenna, and ESP32-WROVER-IB with an external antenna connector.
The information in this datasheet is applicable to both modules.
Product Specifications
| Categories | Items | Specifications |
| Certification | RF certification | See certificates for ESP32-WROVER-B and ESP32-WROVER-IB |
| Bluetooth certification | BQB | |
| Green certification | RoHS, REACH | |
| Test | Reliablity | HTOL/HTSL/uHAST/TCT/ESD |
| Wi-Fi | Protocols | 802.11 b/g/n (802.11n up to 150 Mbps) |
| A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support | ||
| Center frequency range of operating channel | 2412 ~ 2484 MHz | |
| Bluetooth | Protocols | Bluetooth v4.2 BR/EDR and Bluetooth LE specification |
| Radio | NZIF receiver with –97 dBm sensitivity | |
| Class-1, class-2 and class-3 transmitter | ||
| AFH | ||
| Audio | CVSD and SBC | |
| Hardware | Module interfaces | SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM,I2S, IR, pulse counter, GPIO, capacitive touch sensor,ADC, DAC, TWAI® (compatible with ISO 11898-1, i.e. CAN Specification 2.0) |
| Integrated crystal | 40 MHz crystal | |
| Integrated SPI flash | See Table 1 and 2 | |
| Integrated PSRAM | See Table 1 and 2 | |
| Operating voltage/Power supply | 3.0 V ~ 3.6 V | |
| Minimum current delivered by power supply | 500 mA | |
| Recommended operating ambient temperature range | –40 °C ~ 85 °C | |
| Package size | 18 mm × 31.4 mm × 3.3 mm | |
| Moisture sensitivity level (MSL) | Level 3 |
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
We also provide ：
| Part No | Manufacturer | Date Code | Quantity | Description |
| LM22676ADJ | NS | 19+ | 250 | SOP8 |
| TPS562201DDCR | TI | 22+ | 795500 | SOT23-6 |
| NJG1806K75 | JRC | 22+ | 500000 | DFN6 |
| TLV74318PDQNR | TI | 22+ | 402000 | X2SON-4 |
| NJG1801K75 | JRC | 22+ | 300000 | SMD |
| NJG1804K64 | JRC | 22+ | 300000 | DFN8 |
| LM27761DSGR | TI | 22+ | 151000 | WSON8 |
| TLV62565DBVR | TI | 22+ | 138000 | SOT23-5 |
| TPS613222ADBVR | TI | 22+ | 108000 | SOT23-5 |
| LNK625DG-TL | POWER | 22+ | 100000 | SOP-8 |
| OPA4322AIPWR | TI | 22+ | 100000 | TSSOP14 |
| TLV75528PDRVR | TI | 22+ | 99000 | WSON-6 |
| TPS7A2025PDQNR | TI | 22+ | 78500 | X2SON-4 |
| TLV62568DBVR | TI | 22+ | 72000 | SOT23-5 |
| STM32L051K8U6TR | ST | 22+ | 60000 | QFN32 |
| SKY66421-11 | SKYWORKS | 22+ | 56500 | QFN16 |
| TPS7A1111PDRVR | TI | 22+ | 54000 | WSON6 |
| TLV62569PDDCR | TI | 22+ | 52000 | SOT23-6 |
| TLV62569DBVR | TI | 22+ | 48000 | SOT23-5 |
| TPS23753APWR | TI | 22+ | 40000 | TSSOP14 |
| NB691GG-Z | MPS | 22+ | 30000 | QFN |
| SN74AHC1G02DBVR | TI | 22+ | 27939 | SOT-23 |
| TPS63000DRCR | TI | 22+ | 23238 | VSON10 |
| TLV75533PDRVR | TI | 22+ | 21500 | WSON6 |
| NB687BGQ-Z | MPS | 22+ | 20000 | QFN |
| A3916GESTR-T-1 | ALLEGRO | 22+ | 17150 | QFN-20 |
| TPS62135RGXR | TI | 22+ | 15000 | VQFN11 |
| TLE2022AMDR | TI | 0803+ | 12500 | SOP8 |
| TPS23756PWPR | TI | 22+ | 12000 | HTSSOP-20 |
